Automobile headlight technology evolution and protection scheme analysis
Car light technology has gone through three revolutions, forming a layered architecture of "basic lighting → intelligent control → interactive projection (a system integrating multiple intelligent functions)".
1. Comparison of technical parameters of car headlamp light source:
|
光源类型 |
亮度（lm） |
寿命（小时） |
典型功率 |
典型应用 |
|
卤素灯 |
800-1200 |
1000 |
55W |
经济型车（大众 POLO 低配） |
|
HID 氙气灯 |
3200-3500 |
3000 |
35W |
中端车型（如丰田凯美瑞） |
|
LED |
2800-3200 |
50000+ |
25-35W |
全球新车标配（占比超 90%） |
|
激光 |
4000-6000 |
100000+ |
10-20W |
高端车型（如宝马 iX激光矩阵） |
Note:
l LED with 50 times the halogen lamp life, 1/5 power consumption and millisecond lighting speed, become 90% of the new car standard.
The laser light source is mostly used as an auxiliary light source (such as BMW's laser matrix headlamp), which provides the function of high beam filling light.
二、Global lighting brand technology positioning and market layout：
|
品牌 |
市场定位 |
核心技术与差异化优势 |
典型客户 |
|
欧司朗 |
全球乘用车市占率 50%，豪华车首选 |
激光 / OLED 技术领跑，Night Breaker LED（2500lm），智ADB系统通过 ECE R37 认证 |
奔驰、宝马、奥迪 |
|
飞利浦 |
全球照明巨头，覆盖 100 + 车企 |
SafeBeam 无眩光技术、CeraLight 陶瓷封装（寿命 12 年），X-treme LED 性价比突出（1350lm） |
通用、福特 |
|
海拉 |
欧洲市占率 15%，高端车供应商 |
ADB 自适应远光与矩阵 LED 技术，3000 + 专利布局，车规级芯片方案符合 ISO 26262 标准 |
保时捷、大众 |
|
法雷奥 |
全球 12% 市占率，智能化先锋 |
ADB 矩阵 LED 模块化设计，成本较早期方案降低 40%，适配中端车型（如丰田 RAV4） |
丰田、特斯拉 |
|
小糸（Koito） |
丰田系核心供应商，市占率 20% |
AFS 自适应前照灯技术成熟，覆盖卤素到 LED 全产品线，日系车配套率超 80% |
丰田、雷克萨斯 |
|
华域视觉（中国） |
国内市占率 18%，智能投影先驱 |
DLP 百万像素投影技术（与德州仪器合作），自研 ADB 算法，获 C-NCAP 认证 |
上汽、蔚来 |
|
华为 （中国） |
智能车灯新势力 |
百万像素智慧灯光系统，液冷散热技术，适配极狐阿尔法S HI版激光大灯 |
问界、极狐 |

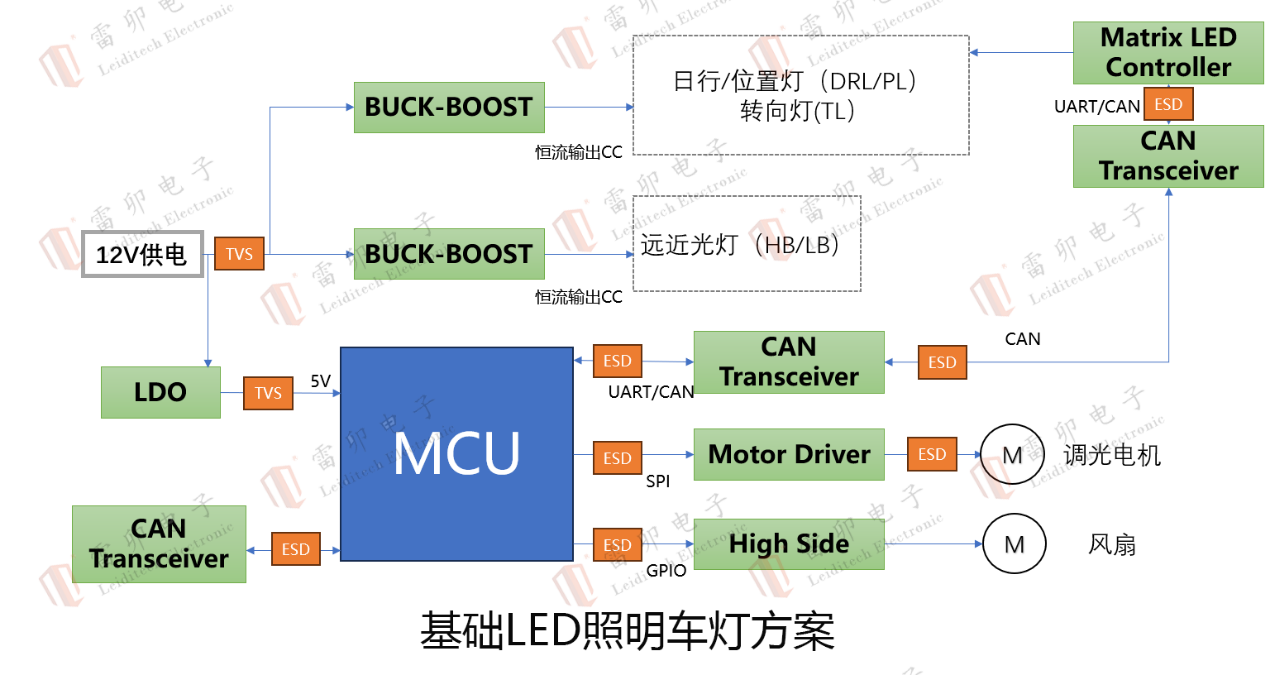

三．Basic LED lighting system architecture
The first-level architecture (single DCDC controller +MOS tube) supports basic requirements such as high/low light, turn signal, and daily running position light.
Flexible adaptation to Boost/Buck topology to optimize energy efficiency;
Brightness adjustment through PWM dimming;
Comply with AEC-Q101 vehicle regulation certification.
四．Leiditech recommended material number for auto headlight power supply and common interface protection
|
雷卯针对汽车大灯电源和常见接口防护推荐料号 |
|||||
|
Component Type |
Brand |
Part Number |
Description |
Package |
Applications |
|
TVS Diode |
Leiditech |
SM8S24CA |
24V,6.6KW,Bi |
DO-218AB |
12V汽车电源抛负载 |
|
TVS Diode |
Leiditech |
SM8S36CA |
36V,6.6KW,Bi |
DO-218AB |
24V汽车电源抛负载 |
|
ESD Diode |
Leiditech |
GBLC24C |
24V,Bi,1pF，8A |
SOD-323 |
4-20mA传感器静电防护 |
|
ESD Diode |
Leiditech |
SMC12 |
12V,Bi,35pF,10A |
SOT-23 |
SPI/I2C接口静电防护 |
|
ESD Diode |
Leiditech |
SMC24 |
24V,Bi,30pF,9A |
SOD-323 |
CAN接口的静电防护 |
|
TSS Diode |
Leiditech |
P0300SD |
25V,50pF |
SMB |
CAN接口静电浪涌防护 |
|
ESD Diode |
Leiditech |
PESD1LIN |
24V,Bi,15pF,5A |
SOD-323 |
LIN总线静电浪涌防护 |
|
ESD Diode |
Leiditech |
SDA05W5 |
5V,Uni,30pF,3A |
SOT-353 |
GPIO静电防护 |
|
ESD Diode |
Leiditech |
ESDA05CP |
5V,Bi,10pF,5A |
DFN1006 |
GPIO静电防护 |
|
ESD Diode |
Leiditech |
ESDA33CP30 |
3.3V,Bi,12pF,8A |
DFN1006 |
UART静电防护 |
|
ESD Diode |
Leiditech |
SMDA05CCN |
5V,Bi,60pF,30A |
DFN1006 |
UART静电防护 |
|
ESD Diode |
Leiditech |
ULC0542C |
5V, Bi,0.3pF,4A |
DFN1006 |
UART静电防护 |
|
ESD Diode |
Leiditech |
ULC3304P10 |
