With the intelligent upgrade of humanoid robots, collaborative robots, and industrial robots, the hand actuator module, as the core end-of-arm interaction component, undertakes critical functions such as grasping, manipulation, force-controlled sensing, and precision operations. Unlike the robot body, the hand module is characterized by a compact size, high integration density, frequent movement, numerous external sensors and actuators, and long-term operation under dynamically flexing, electromagnetically noisy, and mechanically vibrating conditions.

In scenarios such as automated production lines, humanoid services, and specialized operations, hand modules often face electrical hazards including electrostatic discharge (ESD), surge impacts, signal interference, and power fluctuations. These can easily lead to sensor failure, communication disconnection, driver chip damage, and motion stuttering.

This article provides a comprehensive analysis of the overall characteristics, structural composition, hardware interfaces, and power links of robot hand modules. Drawing on Shanghai Leiditech's years of experience in industrial-grade and automotive-grade protection, it delivers targeted ESD, surge, and EMC protection solutions for power supplies and signal interfaces, offering a reference for stable hardware design and reliability upgrades in robotics.

Robot Hand Module Structure

The robot hand module, also known as the end effector, is the core actuation unit for enabling robots to perform precision tasks. It is mainly divided into three categories: two-finger grippers, multi-finger anthropomorphic dexterous hands, and soft flexible hands. These modules are widely used in applications such as industrial collaborative assembly, material handling, precision sorting, daily interaction with humanoid robots, operations in special environments, and biomimetic testing in research. As such, they serve as the key carrier for robots to perform practical, real-world tasks.

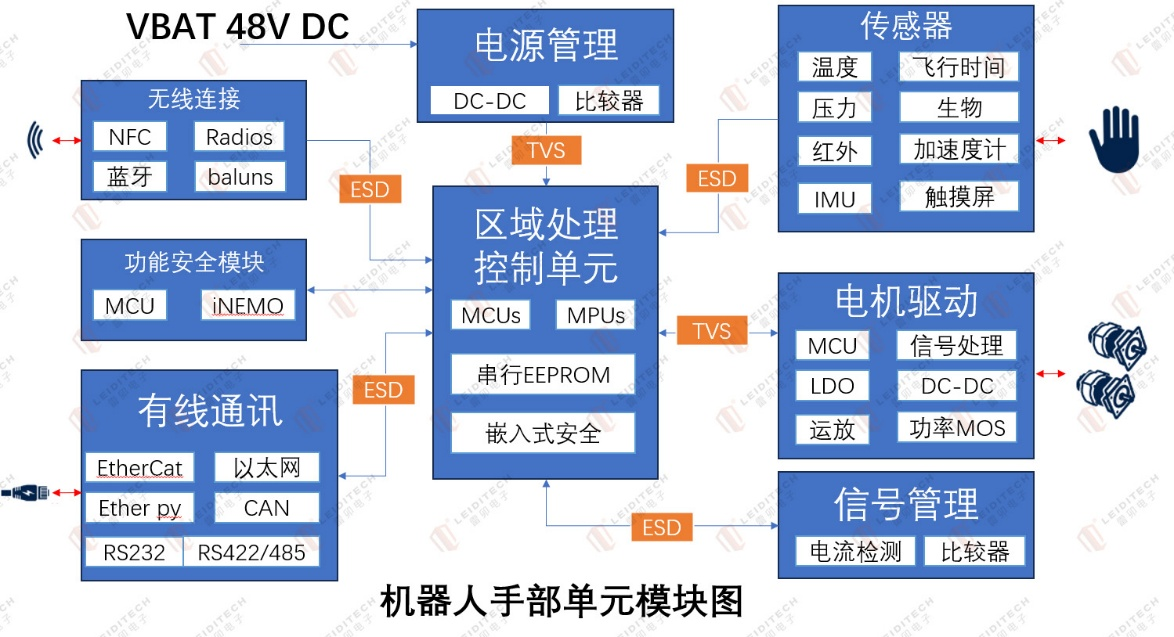

From the perspective of hardware structure and electrical architecture, the robot hand module mainly consists of six core parts: mechanical structure, power drive unit, sensing and acquisition unit, control processing unit, wired communication interface, and power supply link.

1. 1. Mechanical Structure Components: These include the housing frame, reduction gears, transmission linkages, flexible connectors, and sealing protection structures. They bear the load, enable finger opening/closing and posture adjustment, and provide physical protection and fixation for internal circuit boards and cables.

2. 2. Power Drive Unit: Primarily composed of micro stepper motors, servo motors, brushless drive motors, and micro hydraulic/pneumatic components, paired with driver ICs and H-bridge drive circuits. This unit is the power source for hand actuation. The moment the motor starts or stops, reverse high-voltage pulses and electromagnetic radiation interference are generated.

3. 3. Sensing and Acquisition Unit: Integrates force sensors, pressure sensors, temperature detectors, tactile sensors, attitude gyroscopes, position encoders, etc. It collects real-time data such as grasping force, contact feedback, and joint angle. Most signals are weak-voltage analog signals with poor noise immunity, making them susceptible to damage from ESD and radiated interference.

4. Core Control Unit: Equipped with a micro MCU/MPU, driver control chips, and memory chips. It is responsible for receiving host computer commands, parsing motion logic, collecting sensor signals, and closed-loop controlling motor operation. As the control hub of the hand module, it is highly sensitive to ESD and pulse surges.

5. Communication and Connection Components: Integrate internal ribbon cables, flexible FPC cables, and external shielded wiring harnesses to enable signal exchange between the hand and the robot's forearm main controller. Common communication methods include CAN, RS485, I2C, SPI, Ethernet, and LVDS.

6. Auxiliary Functional Components: Include indicator lights, status feedback devices, filtering ferrite beads, and conventional resistor-capacitor filtering components, used for status indication and basic noise suppression.

Leiditech Dedicated Protection Solution for Robot Hand Modules

Considering the design characteristics of hand modules — small size, high density, low power consumption, dynamic flexing, and complex outdoor/industrial environments — Leiditech leverages its automotive-grade and industrial-grade device portfolio to deliver lightweight, highly integrated protection solutions for power circuits and various signal interfaces. These solutions address EMC compliance, ESD protection, EFT burst immunity, and lightning surge suppression requirements.

Complete Protection Solution for Power Circuits

Leiditech provides three-stage protection for the hand module's DC power input, DC-DC pre-stage, and motor power circuit, addressing issues such as surges, back EMF, power supply ESD, and excessive ripple.

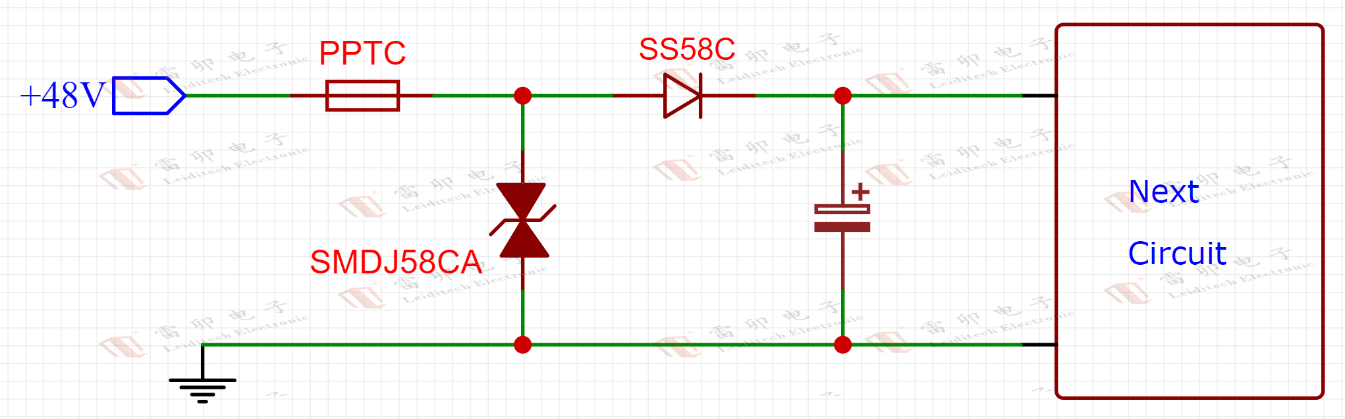

· Entry-level protection: Select high-power TVS transient voltage suppression diodes (SMCJ, SMDJ series) to absorb high-voltage surges and induced lightning strikes, withstanding high transient shocks. Pair with resettable fuses and reverse polarity protection diodes to achieve multiple layers of protection against overcurrent and reverse voltage.

· Motor power dedicated protection: Connect a TVS in parallel at the motor driver power terminal to suppress the back EMF generated when the motor is powered off, preventing high-voltage reverse current from damaging the main controller and power supply chip.

2. ESD and Interference Protection Solution for Communication Interfaces

1) CAN Industrial Communication Interface

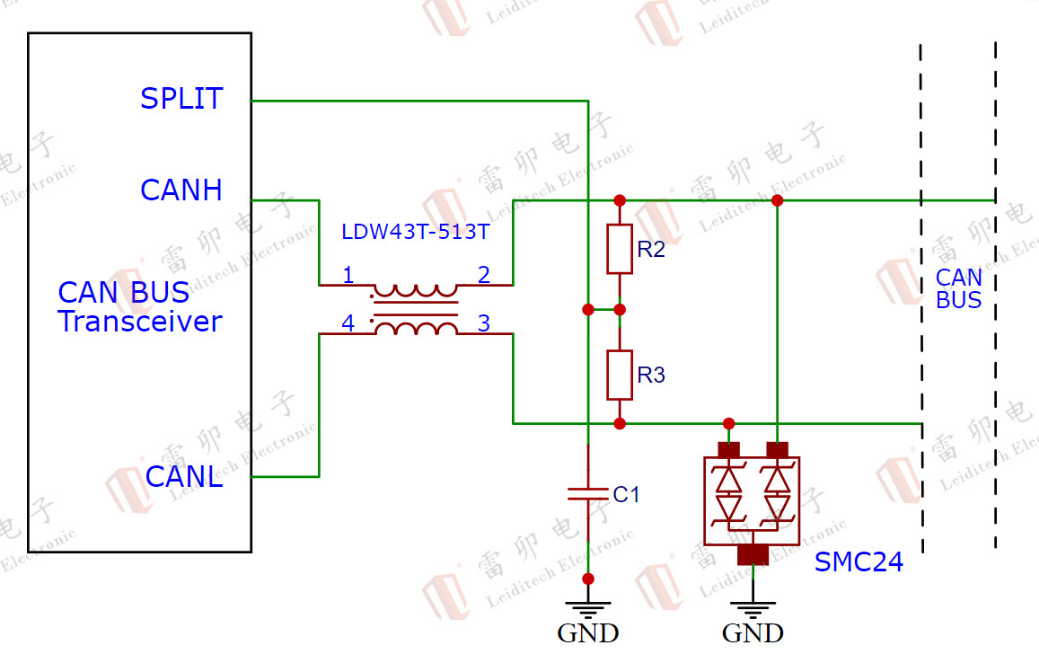

Leiditech selects a dedicated CAN bus ESD protection diode SMC24 combined with a common-mode choke. The low junction capacitance design does not affect the differential signal transmission rate. It withstands IEC 61000-4-2 Level 4 ( ±30kV contact discharge, ±30kV air discharge ), while suppressing common-mode interference on the differential lines, eliminating communication stuttering, packet loss, and bus lock-up issues.

2) RS485 Industrial Communication Interface

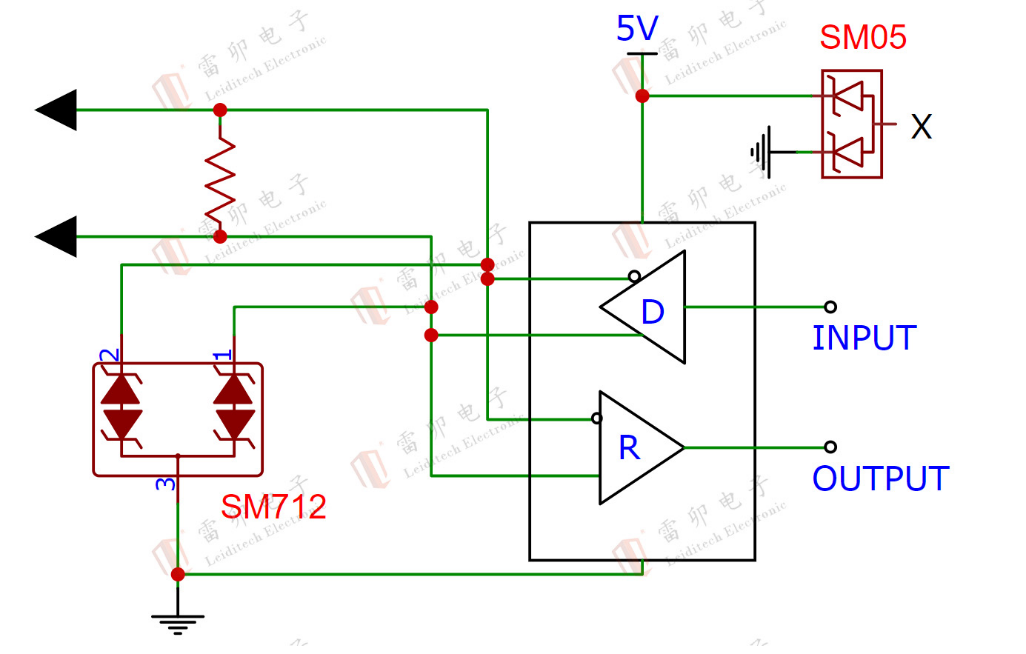

Leiditech selects the RS485 bus dedicated ESD protection diode SM712, which can withstand IEC 61000-4-2 Level 4 ( ±30kV contact discharge, ±30kV air discharge ).

3) I2C/SPI Low-Speed I/O Interfaces

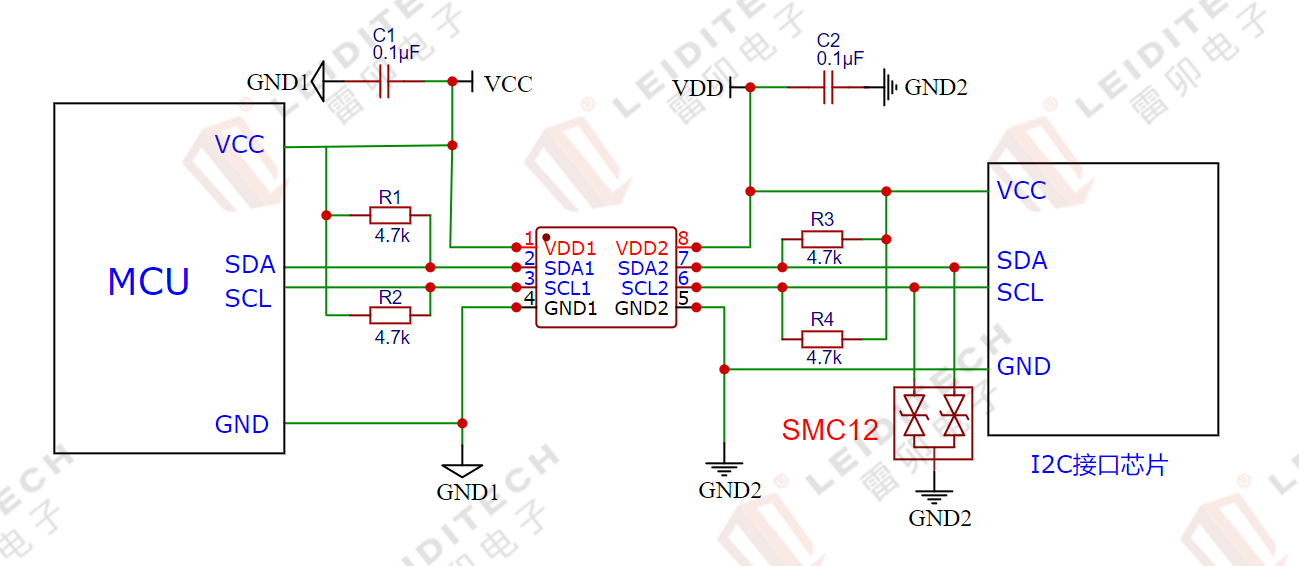

A miniature bidirectional ESD array SMC12 in SOT-23 small package is adopted, suitable for the compact PCB layout of the hand module. Its extremely low parasitic capacitance ensures signal integrity for low-speed control signals, solving the problem of ESD breakdown caused by human touch and friction.

4) Protection Solution for Sensor Analog Signal Interfaces

Tactile, force control, temperature, and other analog weak-signal circuits have low withstand voltage and are extremely susceptible to damage.

It is recommended to use the low-capacitance precision ESD protection device ULC0542C. The 0402 small package offers precise clamping voltage and ultra-low leakage current, without affecting analog sampling accuracy. Additionally, pair it with high-frequency ferrite beads and RC filter networks to suppress radiated interference, enhance sensor data stability, and avoid signal drift and acquisition distortion.

Summary

As a core component characterized by high-frequency motion, high-density integration, and frequent human-robot interaction, the electrical reliability and EMC protection design of the humanoid robot hand module cannot be overlooked. Power surges, contact ESD, motor interference, and long-line coupled interference are the primary causes of hand module failure.

Leiditech has been deeply engaged in the protection and EMC field for over a decade. Addressing the hardware characteristics of robot hands — limited space, multiple interfaces, and mixed high/low voltage — Leiditech provides comprehensive technical support, including single device selection, combined protection circuit design, overall EMC protection design guidance, and free sample testing.

By adding standardized protection solutions at the power entry point, communication buses, sensor interfaces, and the front end of drive circuits, the environmental adaptability and long-term operational stability of robot hand modules can be significantly improved. This helps robotics companies simplify design, reduce costs, increase efficiency, and accelerate the deployment of intelligent products.
