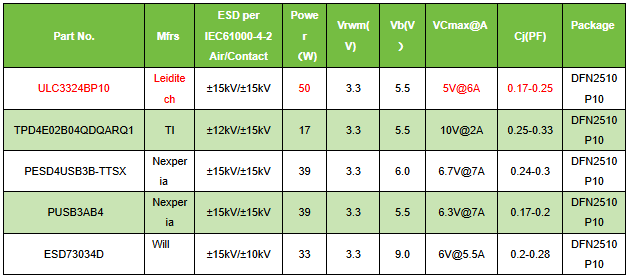

Leiditech ULK3324BP10 is a 3.3V low clamp voltage Vc, 4-channel bidirectional, low capacitance ESD diode, packaged as DFN2510-10. The ULK3324BP10 can fully replace TI Texas Instruments (TPD4E02B04QDQARQ1), Nexperia PESD4USB3B-TTSX, PUSB3AB4, and Will (ESD73034D). The parameter comparison list is as follows:

List Note:

Vrwm: Reverse Turn-off Voltage,

Vbr: Breakdown Voltage,

VCmax@A: VC measured under the maximum IPP condition,

Cj: Junction Capacitance,

Features: 1CH: Single Path,

Bi: Bidirectional.

If you are using any of these Part No. and need an alternative, you can contact the sales staff of Shanghai Leiditech to apply for a sample test.

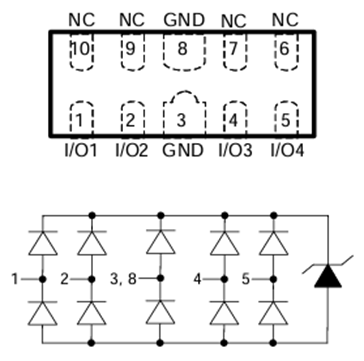

ULC3324BP10   Performance Characteristics

l  4-channel bidirectional ESD protection diodes

l  Junction capacitance Cj = 0.17pF typ

l  Low clamping voltage, varying with IPP, maximum is VC (7V)

l  High IPP (max 6A)

l  Extremely low leakage current

l  Ultra-small package (DFN2510-10)

ULC3324BP10 Application

1. Interfaces

l  USB Type-C

l  USB 3.1 Generation 2

l  High-Definition Multimedia Interface (HDMI) 2.0/1.4

l  USB 3.0

l  DisplayPort 1.3

l  10/100/1000Mbps Ethernet application circuits

l  GMSL, FPD-Link, LVDS

1. Terminal

l  Connects to the main unit

l  Rear seat entertainment system

l  Remote information processing

l USB hub

l  Instrument panel

l  Body control module

l  Media interface

Application circuit

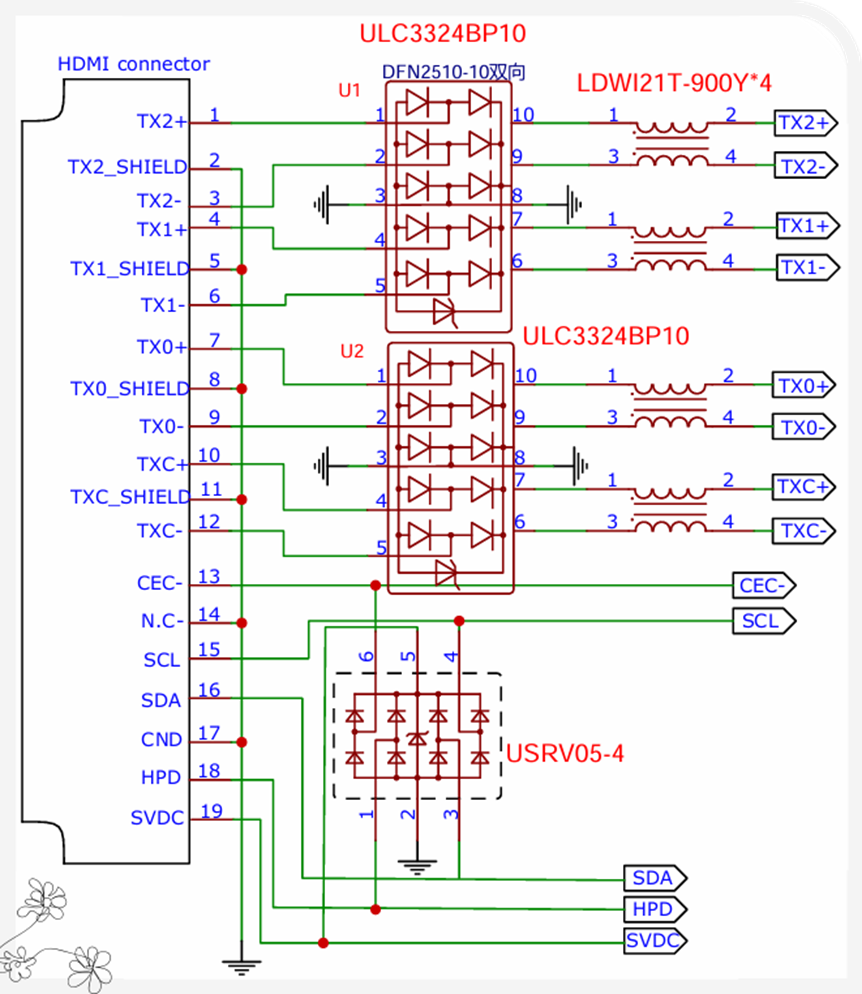

Applied to the HDMI 2.0 interface circuit

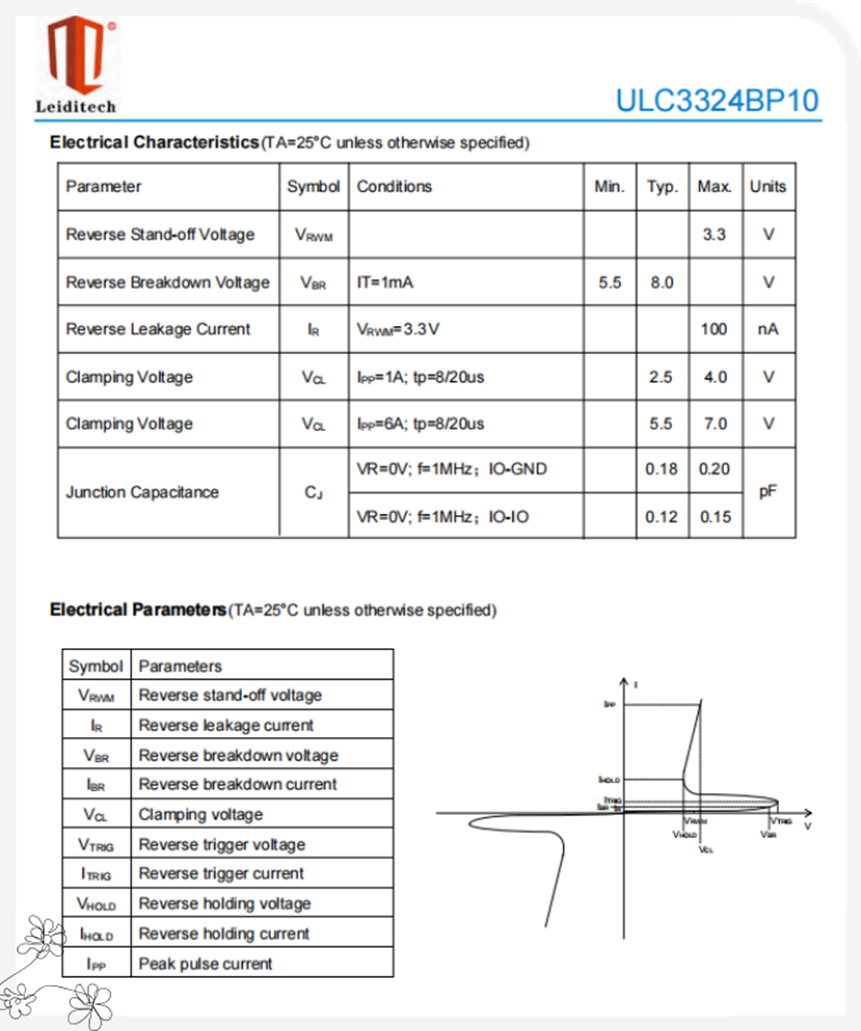

ULC3324BP10 Datasheet parameter
