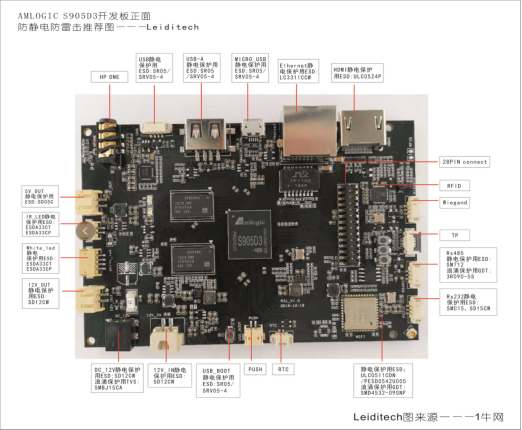

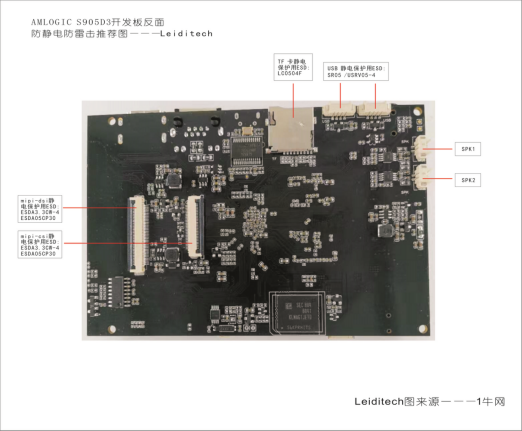

AMLOGIC S905D3 Development Board

one、 summary(Overview)

bookDevelopment Boardadoptamlogic S905D3chipprogramme，Support for GoogleAndroid 9.0system。Support mainstream audio and video formats and image decoding。MIPIInput and output interfaces，Rich interfaces，Make the product more versatile。Due to its hardware platformization、AndroidThe characteristics of intelligence，When human-machine interaction is required，When interacting with network devices，Can be used as an intelligent terminal platform。

two、 characteristic(features)

1. High performance（Performance）:

S905D3It's a12nmProcess low power consumption，High performance processors，Suitable for calculation，Personal mobile internet devices and other intelligent device applications。It is based onBig.Littlearchitecture，Double coreCortex-A73And quadcoreCortex-A55Example1.2TofNPUProcessors integrated together 。Using this chipS905D3Motherboard solution，Compare common four core solutions on the market，A qualitative leap in performance，Capable of playing high-definition videos in various formats  HDMIExportable 4K*2K/60Frame Video，Capable of handling complex interactive operations such as deep learning。

2. high stability （Stability）:

R32Universal Motherboard ，In hardware、Software，Add your own unique technology to ensure product stability，Can enable the final product to achieve7×24Unattended hours。

3. Scalability（Scalability）:

4individualUSB2.0mouth，1individualIIC，1individualRS23、1individualRS485,1Vegan，28PINPin interface(8passagewayI2S/PDM,1individualI2C、2individualADCmouth，5v、3.3vsource、8individualGPIO)Can expand more peripheral devices。

three、Basic functional characteristics(features)

CPU	S905D3  Quad core ARM Cortex-A55 CPU,  ARM G31 MP2 GPU,  1.2 TOPS NN inference accelerator
Main frequency Frequency	1.9Ghz
Graphics processing unit GPU	ARM G31 MP2 GPU
Neural network processing unit NPU	1.2 TOPS NN inference accelerator
Memory Memory	DDR3 capacity of 4GB
Built in storage capacity Storage	8GB/16GB/32G eMMC
Display interface Built-in Display	Mipiinterface Supports a maximum resolution of 1080p
On board backlight Backlight	onboardBacklight up to  35V，Support5Vinterface,12Vinterface,
Camera interface Built-in ISP	4line  mipi/2*2line input
touch screen Touch	provideI2Cinterface(Can support resistive touch，Capacitive touch)
network Network	haveRJ45interface，Supports 100MEthernet Has the RJ45 interface, support 100m Ethernet
	haveWiFimodule，supportWi-Fi 802.11b/g/nprotocol
Interface device Interface Device	USB 2.0 hubExpand 4USB  host
	supportUSBInterface camera<span style="font-family: Calibri; mso-fareast-font-family: 宋 FPGALow latency high-definitionDVI VGADecoding module AMLOGIC A311DDevelopment Boarddemoplate Leave a Reply Your email address will not be published.Required fields are marked. * Name E-mail Content Verification code POPULAR BLOG 60V is the dividing line! In-depth analysis of key protection technologies for light electric vehicl POE Interface Surge Protection: From Board Burnout to a 4KV Worry-Free Design Solution — A Compliant Applications of Ultra-Low Capacitance (0.05pF) ESD Devices Save for later! Complete practical EMC protection solution for USB Type-C interfaces Medical‑Grade ESD and Surge EMC Protection Solution for Tinnitus and Hearing Loss Diagnosis and Trea ARCHIVES June 2026 May 2026 April 2026 March 2026 February 2026 January 2026 上海雷卯电子科技有限公司©版权所有
