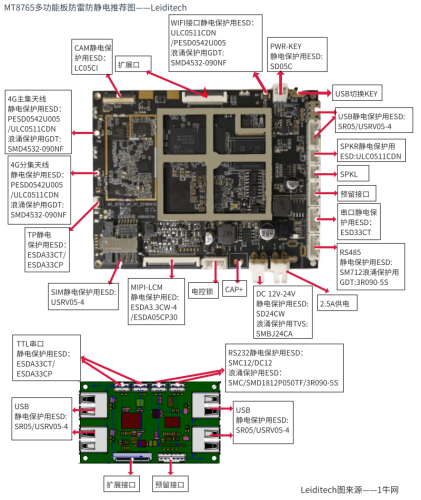

MT8765 4GAll Network Communication Intelligent Control Multifunctional Board

Board Introduction：
MTK8765AndroidIntegrated board， adoptMediaTek MT8765/mt6739Quadrupole1.5GMain frequencychipprogramme，domestic4GAll network communication。Support for Google Android9.0system。GPUbyIMG 8XE 1PPC@570M ，support3DGraphics acceleration（OPENGL ES3.0/3.2，OPENCL 1.1/1.2 EPandDerectX9） ，Video decoding1080P 30frame，supportHD+Screen display with resolution。Supports high-speedLPDDR3，Main frequency up to667MHz。supportEMMC5.1。Standard configuration WIFI 802.11 ac/abgn，BT 5.0。 Support mainstream audio and video formats and image decoding。 Rich interfaces，MIPI Screen interface， HD+(1366*768)High resolution display screen。 Widely used in advertising machines、Interactive all-in-one machine、 Security、 medical treatment、 traffic、 finance、 Intelligent control fields such as industrial control。

Functional characteristics：
High performance。MT8765 The chip adopts four cores A53@1.5GHz kernel， It is one of the mainstream quadcore chips in the current market。 Compare the common four cores on the marketA17Product and previous generationMT8735AThere is a certain improvement in performance， Capable of playing high-definition videos in various formats， Able to handle complex interactive operations。
high stability 。 MT8765Android integrated board，The widespread use of mobile phone products makes them more stable in terms of software and hardware，Because of its low power consumption，DVFSDynamically adjusting kernel voltage，Can ensure long-term stable operation of the system，special4GThe inherent advantage of the platform is that currentlyAP+ModemIncomparable。
High integration。MT8765The Android integrated board integrates4G Modem，GPS，WIFI, Bluetooth，FMMain system functions such as，built-inISP，It has a good effect on improving the performance of the camera。

High scalability。Without including expansion boards，have1 individual USB（OTG）Mouth andUSBDebugging port usage，1individualRS485Serial port，1individualRS232Serial port orTTLSerial port。 Reserved extension interface，With the addition of expansion boards，You can add more4roadUSB/OTGinterface，2roadRS232Interface and2roadTTLSerial port。

Hardware metrics：

touch screen	supportCOF TPorUSB TP
camera	Supports up to13Mofmipicamera
USB	1 channelUSB/OTGUse with debugging port，With the addition of an expansion board，Can support 4 channelsUSB/OTG
Serial port	1*RS232 or 1*UART TTLapply，1*RS485。Adding an expansion board can increase by 2*RS232+2*TTLSerial port
SPI mouth	1*SPI mouth,supportSPIDevice or extension
ac adapter	input12V DC 2A－5A
Basic software specifications：
