一、Application scenarios

1. Network camera

2. 4G/WIFI wireless transmission products

3. Security monitoring products

4. Online audio and video products

5. 4K camera, 32 million snapshot camera, multi-channel camera, motion camera, aerial camera

6. Artificial Intelligence (AI) Products

二、 Function Overview

1. CPU：2*ARM Cortex  A53@1.5GHz

2. NPU: 2Tops AI engine, 0.3Tops neural network computational performance

3. SVP: Intelligent Video Acceleration Engine (IVE/KCF+MAU) x1

4. Memory: DDR4 * 1 1GB

5. ROM：8GB eMMC

6. Supports multiple sensor inputs, built-in high-performance panoramic stitching engine, capable of achieving 2-4 real-time video panoramic stitching at 4K level

7. Supports dual systems of Linux and Huawei LiteOS, with fast startup.

8. Adopt the standard H.264/H.265 High Profile compression algorithm to facilitate high-definition image transmission on narrowband.

9. Maximum support for 8192 * 8192 encoding, up to 4K (3840 * 2160)/60 frames or 1080P/240 frames H.264/H.265 encoding.

10. Supports up to 5 sensor inputs, supporting various product applications such as panoramic cameras and drones.

11. Support two-way voice intercom.

12. Supports ONVIF protocol and can interface with NVRs such as Hikvision, Dahua, Midea Bell, and Xiongmai.

13. Support mobile monitoring.

14. Supports WIFI: hotspot and STA modes.

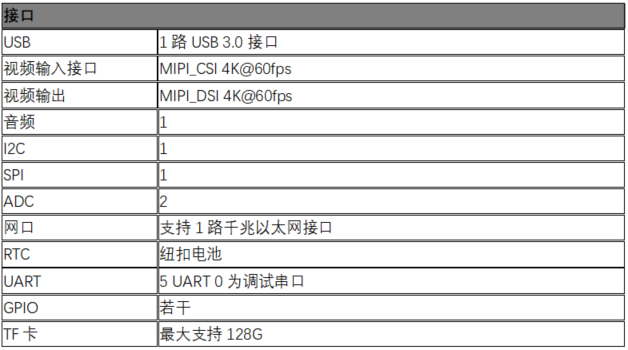

三、Expansion interface
