FPGALow latency high-definitionHDMIImage transmission module
FPGALow latency high-definitionHDMIImage transmission module
Product Introduction
Low latency high-definitionHDMIImage transmission module in high compression ratio、High quality and perfect restoration of video images with ultra-low latency，With minimal latency、Low bandwidth、High stability characteristics。
Collaborate with data link module、Soft solution program， Suitable for unmanned operation/Remote image transmission and real-time control in special scenarios such as drone pods。
Main features
base onZYNQplatform，autonomouslyFPGAnucleus，supportH.264
Video source supportHDMIinterface，support1080P60/720P60resolving power，supportISP。
Module output as network interface，Maximum wireless bandwidth support30M；
Ultra low latency： FPS 60End-to-end delay in the case of80ms（Hard weaving and soft decoding） ；
Support real-time monitoring of wireless signal strength、Supports real-time switching of multi interface videos。
Wireless transmission distance support1-3kilometre
Specification parameters
|
system parameter |
System Delay |
≤30ms |
|
Equipment weight |
≤180g |
|
|
Overall dimensions |
≤120*70*30mm |
|
|
Supply voltage |
DC12V |
|
|
communication protocol |
UDP |
|
|
Device power consumption |
≤10W |
|
|
Video parameters |
resolving power |
1920*1080P60/1280*720/P60 |
|
Video input interface |
HDMI |
|
|
Video output |
100 Mbps Ethernet port |
|
|
bandwidth |
2Mbps-40Mbps |
|
|
Environmental parameters |
working temperature |
-40℃～+85℃ |
|
Storage temperature |
-40℃～+85℃ |
|
|
Environmental humidity |
＜95%，non-condensing |

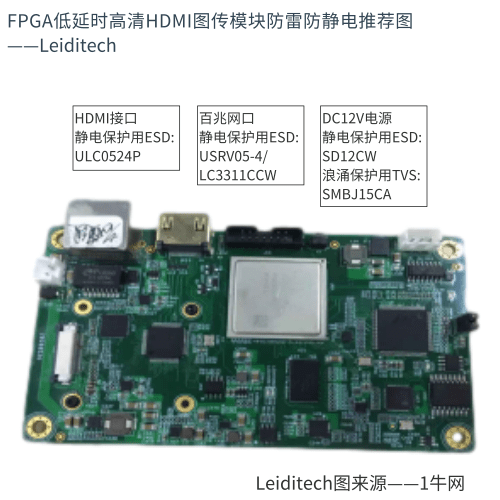

Leiditech is dedicated to solving the problem of lightning protection and static electricity for you，There are free laboratories available for testing。Development BoardData transfer from1Cowhide net。thanks！
