MTK6582 mobile phoneWCDMATablet 6572 solutionMT8382 Development Board 3GAndroid Core Board Module
MTK6582 mobile phoneWCDMATablet 6572 solutionMT8382 Development Board 3GAndroid Core Board Module
one、Core boardProduct Introduction：
MT6582The core board is a product based onMediaTek MT6582 Platform High Performance、OperableAndroidOperating System 3GIntelligent module，supportWCDMA/GSMStandard；supportWiFi 802.11b/g/n，BT3.0 up closewireless communication ，supportGPSStandard satellite positioning；Supports multiple speech and audio codecs，Internal integration Mali-400MPHigh performance graphics engine，Can play smoothly 1080Pvideo；Having multiple audio、Video input and output interfaces and richGPIOinterface。
two、Applicable occasions
robot、Security monitoring 、Handheld terminal、Smart Home、On board equipment、Internet of Things。
three、Network frequency band：
|
type |
Frequency band |
|
WCDMA |
B1/B8 orB2/B5 |
|
GSM |
850/900/1800/1900MHz |
|
WiFi 802.11b/g/n |
2400-2483.5MHz |
|
BT3.0 |
2400-2483.5MHz |
|
GPS/A-GPS |
four、Main performance parameters：
|
performance |
explain |
|
Application processor |
4 cores ARM Cortex-A7 processors Main frequency up to 1.3GHz |
|
Modulation and demodulation processor |
ARM@Cortex-R4 + DSP ARMMaximum frequency 491.5MHz，DSPFrequency of 240MHz |
|
power supply |
VBATSupply voltage range：3.6V~4.3V Typical supply voltage：4V |
|
SMS (SMS) |
TextAndPDUmode Point to pointMOandMT SMSbroadcast SMSstorage：defaultSIM |
|
LCMinterface |
4 groupsMIPI_DSI，Up to 1 support per group.0Gbpsrate； Maximum Support1280*720 60fps（4 groupsMIPI_DSI）； 24bitColor depth |
|
Camera interface |
4 groupsMIPI_CSI，Up to 1 support per group.5Gbpsrate，Supports 2 cameras； Rear camera usage4 groupsMIPI_CSI，Up to 8 supportedMPpixel Front camera usage4 groupsMIPI_CSI，Up to 5 supportedMPpixel |
|
Audio interface |
Audio input： 3 sets of analog microphone inputs 1 channel as a headphoneMICinput，The other two channels are normal call noise reductionMIC Audio output： ABStereo like headphone output ABClass differential earphone output AB/DClass differential speakerpower amplifierOutput 0.8W |
|
USBinterface |
supportUSB2.0 high-speed mode，Maximum data transfer rate of 480Mbps Used for software debugging and software upgrades, etc |
|
USIMCard interface |
2 groupsUSIMCard interface supportUSIM/SIMcard：1.8VAnd 3V supportwith double cassetteDouble waiting |
|
SDIOinterface |
supportSD2.0；4bit SDIO；SD/MMCcard supportHot swapping |
|
I2Cinterface |
4 groupsI2C，Maximum speed up to 400K，When usingI2CofDMAThe maximum speed can reach 3.4Mbps，ForTP、Camera、SensorOther peripherals |
|
ADCinterface |
1 channel，For general useADC |
|
antennainterface |
WCDMAantenna、GNSSantenna、WIFI/BTAntenna interface |
|
Physical characteristics |
size：42×48×2.8mm interface：LCC Warpage degree：<0.3mm weight：10.9g |
|
temperature range |
Normal operating temperature：-20°C ~ +70°C Extreme operating temperature：-25°Cand+80°C 1) Storage temperature：-40°C ~ +85°C |
|
Software upgrade |
adoptUSB |

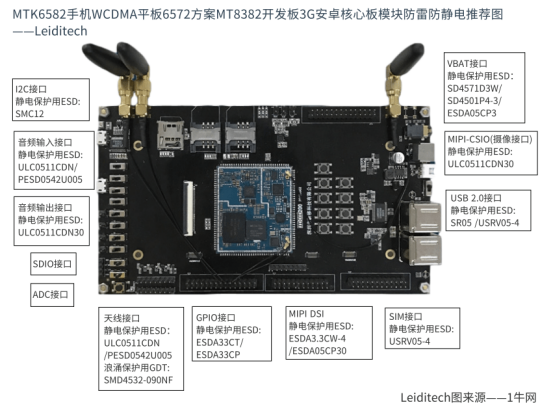

leiditech is dedicated to solving the problem of lightning protection and static electricity for you，There are free laboratories available for testing。Development BoardData transfer from1Cowhide net。thanks！
