MTK8766 core board 4GDevelopment Board
MTK8766 core board 4GDevelopment Board
Functional characteristics
A、High performance： MT8766 chipAdopting four cores A53@2GHz kernel， It is currently one of the strongest quadcore chips in the market。 Compare the common four cores on the marketA17Product and previous generationMT8735AA qualitative leap in performance， Capable of playing high-definition videos in various formats， Able to handle complex interactive operations。
B、high stability ： MT8766AndroidIntegrated board，The widespread use of mobile phone products makes them more stable in terms of software and hardware，12nmlow power consumption，DVFSDynamically adjusting kernel voltage，Can ensure long-term stable operation of the system，special4GThe inherent advantage of the platform is that currentlyAP+ModemIncomparable。
C、High integration： MT8766 The Android integrated board integrates4G Modem，GPS，WIFI, Bluetooth，FMMain system functions such as，built-inISP，It has a good effect on improving the performance of the camera。
D、High scalability：Interfaces such asupperAs shown in the figure
Hardware metrics
|
CPU |
MTK MT8766 (12 nanometers)，ARM Cortex-A53 Quad Core 64 Bit processor, Main frequency 2.0GHz |
|
GPU |
IMG GE8300@600MHz |
|
Memory |
DDR3 2G（Up to 4 supportedG） |
|
Built in storage capacity |
eMMC 8GB (16G/32G/64G/128G Optional) |
|
network |
4G Domestic All Network Communication |
|
Supports Ethernet100Mbps. |
|
|
supportWIFI 802.11 ac/abgn |
|
|
|
Supports Bluetooth functionality,5.Version 0 |
|
Display interface |

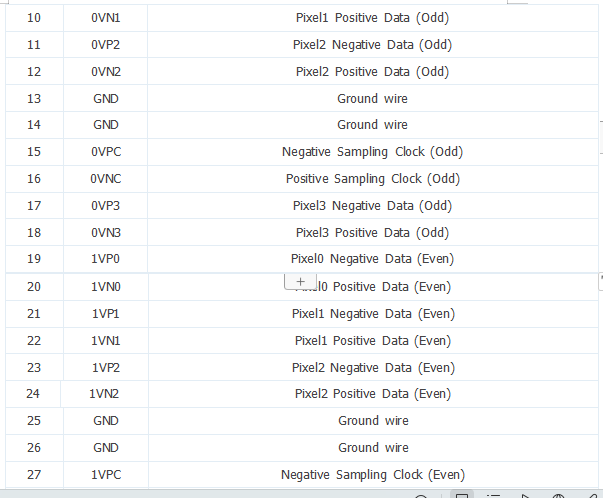

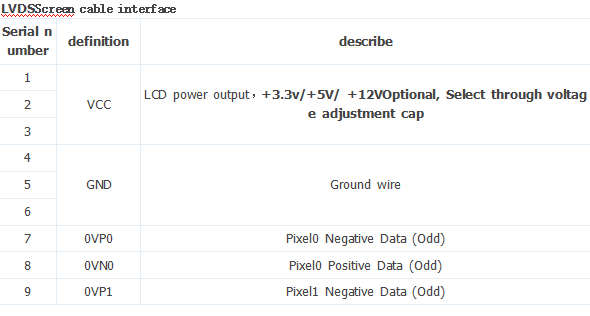

1*LVDS interface（Single channel/Dual path，6 position/8 position）,Support 7"-108"Display screen 1080P 60Hz |
|
On board backlight |
support12V Backlight power supply |
|
audio frequency |
1*Horn output(2*3W 8R THD＜10%) |
|
touch screen |
2* I2Cinterface（Supports multi point resistive touch，Multi point capacitive touch）supportUSB Multi point infrared touch，Multi point capacitive touch,Multi point nano film touch,Multi point acoustic touch，Multi point optical touch, etc |
|
camera |
support4 LANE MIPIcamera，USB Interface camera |
|
USB |
4-wayUSB OTG |
|
Keys |
Power on button，volume+，volume- |
|
Serial port |
|
|
source |
12V-24V,2.5APower input |
