New Automobile Electronic Load dump Protection Smooth Clamp TVS

What is Smooth Clamp TVS

In this paper, Shanghai Leiditech Electronics will introduce a new type of Load dump protection smooth box TVS, which can effectively protect the circuit from the damage of voltage overload, at the same time, it can smooth voltage fluctuations, improve the stability of the circuit, and meet the requirements of vehicle regulations.

This new type of TVS adopts advanced box position technology, which can start immediately when the circuit voltage rises abnormally, clamp the excessively high voltage within a safe range, and effectively protect subsequent circuits. In addition, the TVS also has the ability to smooth voltage fluctuations, effectively eliminating voltage peaks in the circuit and stabilizing them at a lower level, thereby improving the stability of the circuit.

In addition, the TVS also has the advantages of fast response speed, strong pressure resistance, and high reliability. It is widely used in various electronic devices, especially for electronic devices that require high stability, and is an indispensable circuit component.

In a word, the new Load dump protection smooth clamping TVS is an efficient and reliable circuit protection component, which can protect the circuit from the damage of voltage overload and improve the stability of the circuit. I believe that this TVS will play an increasingly important role in various electronic devices in the future.

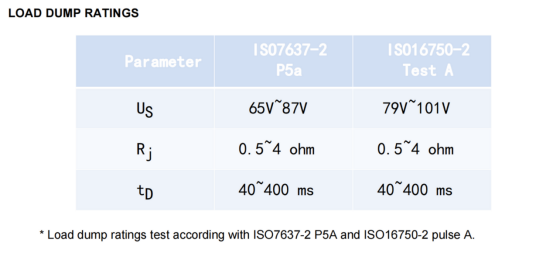

The device can pass the rigorous Load dump test of vehicle 12V system

This device also has the characteristics of low leakage current, low capacitance, and low distortion, which can work stably in various harsh environments. Therefore, it is also widely used in fields such as automotive electronics, communication equipment, and industrial control. If you need an efficient and reliable circuit protection component, this TVS will be your best choice.

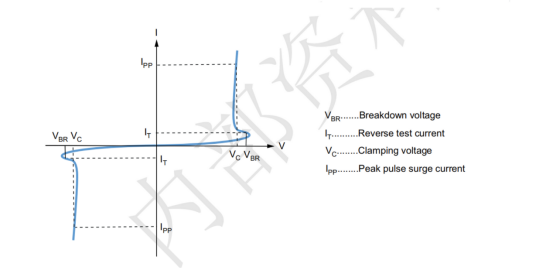

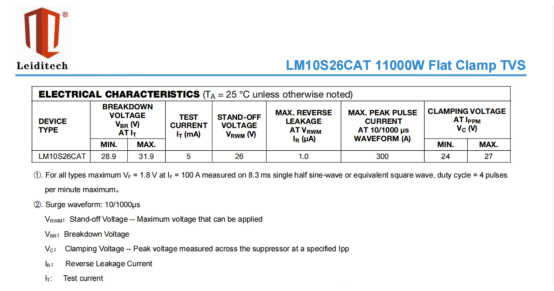

This device has a patented ultra-low clamping voltage

summary

The interface protection of electronic products requires the use of overvoltage protection devices. Many engineers are aware of the need to use protection devices, but due to improper selection or failure to follow the design principles of ESD circuit PCB, the product fails static or EMC testing, wastes manpower and financial resources, and causes product delays or over design, resulting in cost pressure. Leiditech Electronics provides customers with electromagnetic compatibility EMC design services, providing laboratory testing for free. We aim to efficiently and conveniently complete the design for our customers. We hope that more customers can quickly pass EMC's projects and improve product reliability as much as possible.

Shanghai Leiditech Electronic Electromagnetic Compatibility Laboratory provides free testing and peripheral electrostatic protection reference circuits.
