By LEIDITECH | 22 November 2023 | 1 Comments

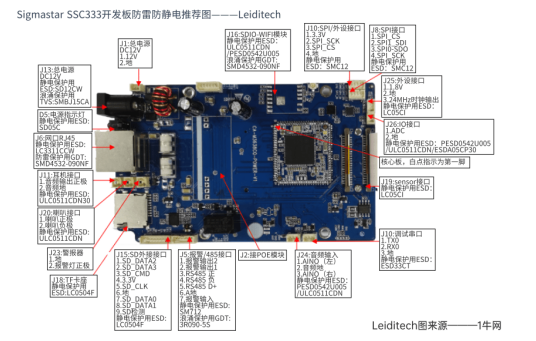

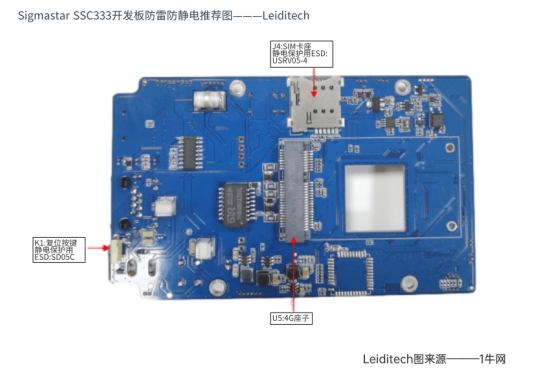

Sigmastar SSC333 Network Camera Development Board Lightning and Static Protection Diagram
Sigmastar SSC333 Network Camera Development Board Lightning and Static Protection Diagram









SigmaStar SSD201 SSD202 Indoor Gateway Development Board Lightning and Static Protection Diagram
SigmstarSCC336 SCC338 Dual HD Camera Module Lightning and Static Protection Diagram
