In the continuous evolution of consumer electronics towards being thinner, lighter, shorter and smaller, devices such as TWS headphones, smartwatches and micro-sensors have put forward unprecedentedly high requirements for the space occupation and signal integrity of internal components. Facing this challenge, Shanghai Leiditech Electronic, leveraging its years of technological accumulation in the EMC protection field, has launched a high-performance ESD protection solution based on the 0201 ultra-small package (0.6mm×0.3mm), which takes into account both extreme miniaturization and high-speed signal compatibility, helping customers' products achieve high reliability and high yield within a limited space.

1、Ultra-small size, freeing up precious space on the PCB

The 0201 series ESD protection devices of Leiditech Electronic adopt the industry-leading chip-level packaging process. The overall size is only 0.6mm × 0.3mm × 0.3mm, and the area is only one-third of the traditional 0402 (1mm*0.5mm) packaging (0.18mm²vs 0.5mm²). This size can be directly mounted on the Type-C interface of TWS earphone charging cases, the edge of smartwatch motherboards and other space-constrained areas. Without sacrificing protective performance, it saves more than 50% of the PCB layout space and leaves more design margin for antennas, batteries or other functional modules.

2、Ultra-low capacitance ensures zero distortion of high-speed signals

For applications that are highly sensitive to signal integrity, such as Bluetooth 5.3, heart rate sensing, and blood oxygen detection, Leiditech offers two types of low-capacitance ESD protection paths:

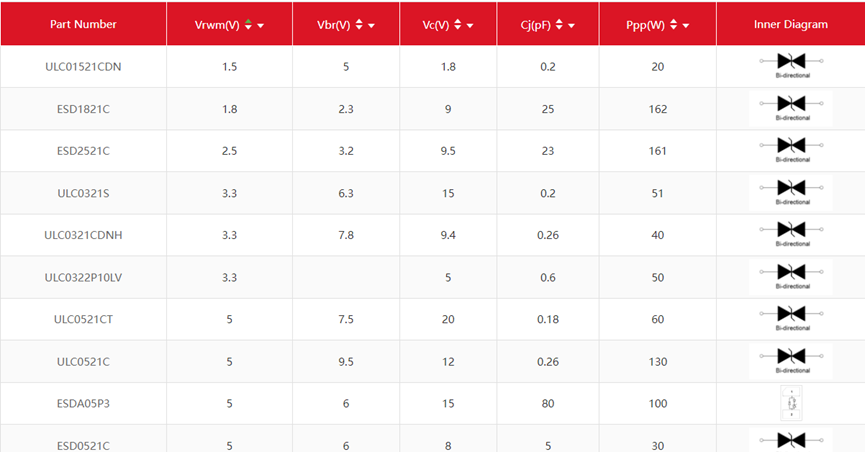

• ULC Series: The lowest parasitic capacitance is only 0.26pF (@1MHz), suitable for medium and high-speed signal lines such as Bluetooth antennas and USB 3.0, ensuring stable transmission rate and extremely low bit error rate;
• ESD series (such as ESD0521C): Parasitic capacitance as low as 5pF (typical value), leakage current ≤0.2μ A. It has been applied in batches to the heart rate and blood oxygen sensor circuits of many high-end smartwatches, achieving precise signal collection without attenuation or interference.

The response time of all devices is less than 1ns, which can quickly clamp ESD transient pulses and effectively protect the back-end IC.

3、High reliability meeting IEC61000-4-2 standard

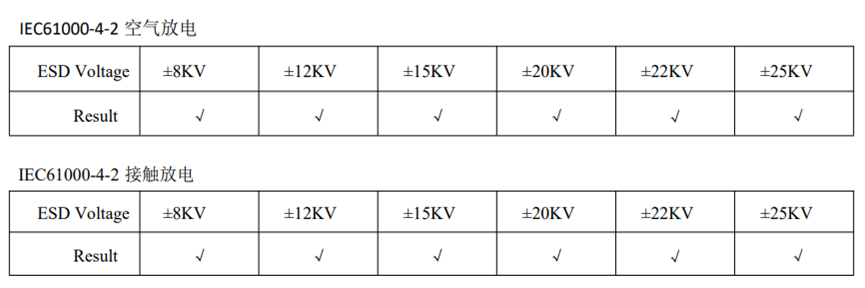

The 0201 series ESD devices of Leiditech Electronic fully comply with the IEC 61000-4-2 Level 4 standard (±8kV contact discharge / ±15kV air discharge), and have passed 1000 ESD pulse tests. There is no performance degradation, low leakage current remains stable, and no drift phenomenon, meeting the reliability requirements of consumer electronics.

In addition, all of Leiditech’s ESD part numbers have passed the RoHS certification, are lead-free and halogen-free, and comply with global environmental protection regulations, enabling the products to smoothly enter mainstream markets such as Europe, America, Japan and South Korea.

4、Mature solutions empower various types of micro-terminals

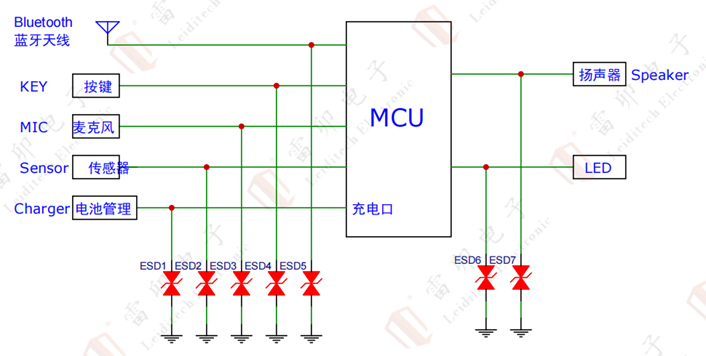

Leiditech's ESD protection solution for TWS wireless earphone interfaces

The miniaturized ESD solution of Leiditech has been implemented on a large scale in multiple niche fields

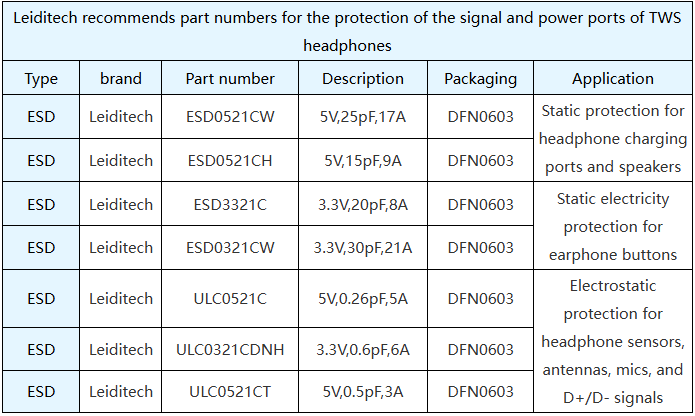

• TWS headphones: ESD0521CH is used for the Type-C 5V interface of the charging case; ULC0521C is deployed on the Bluetooth antenna of the headphones themselves.
• Smart wearable devices: ULC0521C protects the heart rate sensor signal line and is used in the blood oxygen detection module
• Internet of Things micro-sensor: ULC0521C adapted temperature and humidity sensor node.

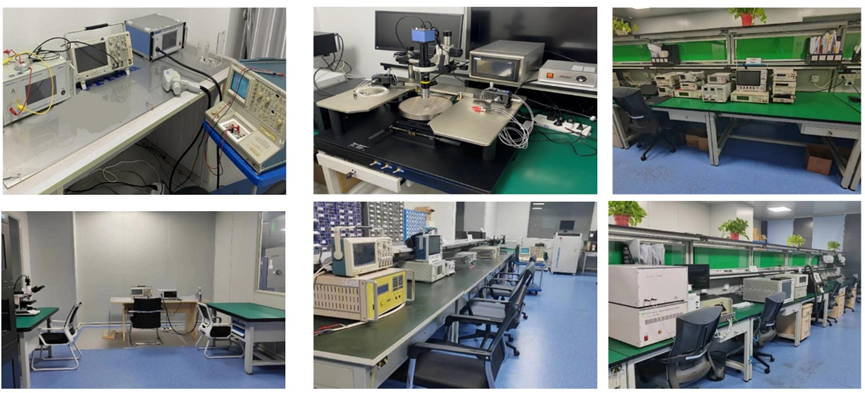

To help engineers quickly verify the feasibility of the solution, Leiditech Electronic provides free samples and reference design materials, technical support for component selection, and also offers free laboratory assistance in conducting electrostatic surge detection tests, achieving an integrated delivery of "solution + components + test verification".

Shanghai Leiditech Electronic is committed to becoming a leading brand in electromagnetic compatibility solutions and component supply, offering products such as ESD, TVS, TSS, GDT, MOV, MOSFET, Zener, inductors, etc. Leiditech has an experienced R&D team that can provide personalized customization services based on customer requirements and offer the most superior solutions to customers.
