Allwinnertech A83TWireless LCD driver video image decoding development board

Chapter 1 Application occasions

A83TThe board is made ofAllwinnertech A83T 2.0GHzprogramme，Integrated multimedia decoding、LCD driver、HDMI、WIFI、Bluetooth、Ethernet、3G/4GIntegrated，Supports full format decoding of videos and images，supportHDMIoutput，HDMIinput，LVDSsingle/double8Road interface，EDPInterfaces, etc，Can drive variousTFT LCDdisplay screen，Greatly simplify the overall system design，Stronger stability，Perfect for advertising machines、Cash register、Query machine、Digital signage 、Industrial control board card、Intelligent terminal motherboard for vehicles and other related devices。

Sectiontwochapter Product Features

◆ integrationUSB/LVDS/EDP/HDMI/HDMIIN/WIFI/BT/3G/4G/LANIntegrated，Simplify overall machine design，PluggableTFcard.

◆ Rich extension interfaces.SevenUSBinterface(Five pins,Two standardsUSBmouth),Three scalable serial ports,GPIO/ADCinterface，Can meet the requirements of various peripherals in the market.

◆ high definition：support1080PDecoding and variousLVDS/EDPdisplay screen.

◆ Fully functional。Support horizontal and vertical screen playback，Video split screen，Scrolling subtitles，Timing switch，USBData import and other functions。

◆ Convenient management：Humanized playlist creation software，Easy to manage and control advertising playback。Play log，Easy to understand playback situation。

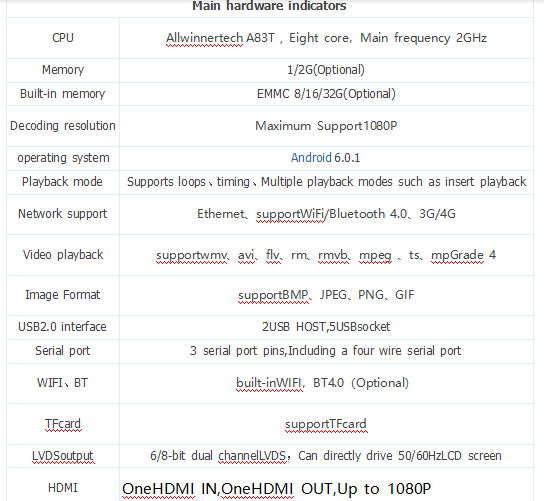

Sectionthreechapter technical parameter
