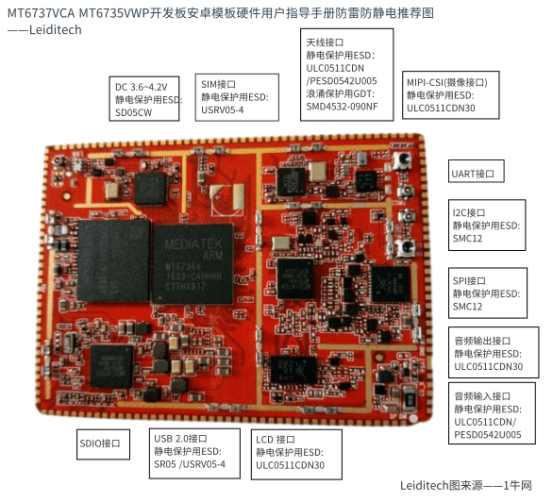

MT6737VCA MT6735VWPDevelopment Board Android Template Hardware User Guide

one.Product Introduction

MT6737VCAIt is a high-performance model4G All network communicationAndroidCore boardmodule,This module supports 2G/3G/4G move,Multiple network formats such as China Unicom. It is aimed at the global market TDD-LTE/FDD-LTE/WCDMA/TD-SCDMA/GSM Intelligence of Five Network Systemswireless communication module.

MT6737VCAModule built-in 64 position 4 nucleus A53 architecture CPU, 8Gb+8GB Memory, Using Android 6.0 operating system, provide 2G/3G/4G Five modes17 Frequency full network access,support WiFi/BT/GNSS(GPS/Beidou)/FM. Provide rich data interface，contain LCM, Camera, USB， UART, I2C, SPI, I2S, ADC, keypad, GPIOs etc..Can connect multiple modules externally,include NFC,One-dimensional and two-dimensional scanning,RFID, fingerprint.Swipe card, ZigBee, Security module, Identity recognition, High frequency and ultra-high frequency module,infrared,Ethernet,vehicleradar,OBDand so on.

MT6737VCAThe module has industry-leading ultra-high integration,Size only 62.02*45.02 mm,Suitable for various products with higher requirements for structural dimensions.Widely applicable to intelligent handheld terminals,Intelligent on-board equipment,Security monitoring ,machine vision,POS machine,Industry tablet,Various fields such as medical and industrial equipment, as well as application design in other industries.

This product is a192-pinModule for welding stamp holes,Rich interfaces\Low cost\Lightweight\The advantages of high reliability can be widely applied in various products and devices of Android intelligent terminals.The functional features of this module product are as follows:

1）support 4G All network communication,Provide mobile environmentGSM/GPRS/EDGE、UMTS/HSDPA/HSUPA/TD-SCDMA、FDD LTE、TDD LTEHigh speed data access service.

GSM850/EGSM900/DCS1800/PCS1900
WCDMA B1/B2 /B5/B8（UMTS/HSDPA/HSUPA 850/900/1900/2100MHzFrequency band）
TDSCDMA:B34/39
LTE-FDD B1,B3,B7

LTE-TDD B38,B39,B40,B41

2)supportFM\WIFI\BT\GPS;ExpandableLANWired network\NFCEqual function;

3）provideSIMCard interface（3.0V/1.8V）;USB2.0（high speed）interface\SD2.0interface\UARTinterface\SPIinterface<span class="16" style="font-family: Arial; color: #444444; letter-spacing: 0pt; font-size: 10.5pt; background-image: initial; backgro
