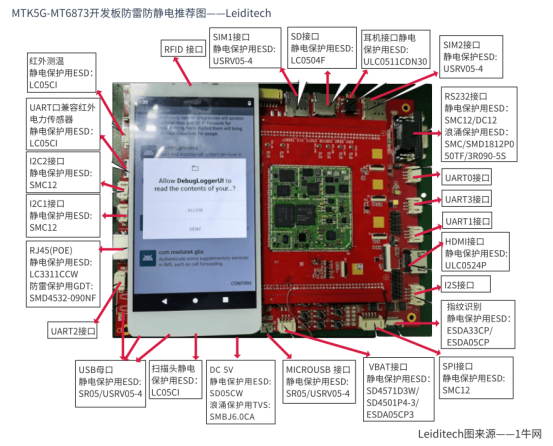

MTK5G-MT6873 Android 10.0 Development Board
MTK5G-MT6873 Android 10.0 Development Board
|
Product Features |
|
|
product positioning |
5G Industry application products |
|
Market Area |
domestic\overseas |
|
Listing time |
2020 year 10 month |
|
major function |
1、MT6873，Eight core（4xA76+4xA55）supportSub-6GHzFrequency bandNSAandSADual mode 5G 2、Supports maximum resolution FHD+(2160x1080)；Capacitive touch screen Incell 3, WiFi5(2x2 801.11 ax) doubleantenna 4、Type-C（HDMI）Fast charging，5V2A，4.4V，OTG 5、Camera maximum support 64M\32M+16M，fingerprint identification，NFC 6、operating system Android 10.0 |
|
Structural specifications |
|
|
Module size |
L:50*W:50*H:2.8MM |
|
LCD And resolution |
Supports the highest resolution FHD+(2160x1080)，In cell Connection method：Secondary board end |
|
TP |
Capacitive touch control |
|
support In cell、Full paste、Box sticker Connection method：Secondary board connection |
|
|
camera |
Maximum pixel support 64M \ 32M+16M |
|
Connection method：Secondary board end |
|
|
Optical distance sensing |
support（Custom specifications） Connection method：Secondary board end |
|
Side key |
Supports up and down volume keys、On/Off key、Customize extension buttons |
|
Connection method：Secondary board end |
|
|
fingerprint identification |
support |
|
Connection method：Secondary board end |
|
|
horn |
AAC 1511（Or customize other specifications） |
|
Connection method：Secondary board end |
|
|
Earpiece |
AAC 1506（Or customize other specifications） |
|
Connection method：Secondary board end |
|
|
motor |
0830 Flat type（Or customize other specifications） |
|
Connection method：Secondary board end |
|
|
MIC |
ordinary MIC/silicon MIC |
|
Connection method：Secondary board end |
|
|
headset |
3.5mm，CTIA |
|
Connection method：Secondary board end |
|
|
USB connect |
Type-C，Supports forward and backward interpolation，audio frequency，HDMI（Or customize other specifications） |
|
Connection method：Secondary board end |
|
|
NFC |
support Connection method：Secondary board end |
|
2016 Highlight ，（Or customize other specifications） |
|
|
Connection method：Secondary board end |
|
|
SIM-CARD |
Supports dual SIM card、T-flash card |
|
T-flash |
|
|
battery |
High capacity and high voltage 4.4V |
|
Connection method：Secondary board end |
|
notes：The project involves FPC Soft board made by customer。
|
Hardware specifications |
|||
|
hardware platform |
MT6873 |
||
|
type |
Fine term |
describe |
Remarks |
|
Memory configuration |
Built-in memory |
LPDDR4X |
support 128GB+6GB |
|
External memory card |
T-flash Maximum Support 128G |
|
|
|
Communication performance |
Frequency band format |
GSM（B2/3/5/8） CDMA:BC0/BC1 TDSCDMA:B34/39 WCDMA（B1/2/4/5/8） LTE（B1/2/3/4/5/7/8/34/38/39/40/41） 5G（N141/77/78/79） |
|
|
Customize specifications based on actual products（Secondary board end） |
|||
|
Wireless connection |
WIFI
