Bridge Rectifiers
Bridge Rectifiers
| Part Number |
Vr MAX(V)
|
If (AV)
|
Ifsm(A)
|
Vf(V)
|
Ir(Ta=25℃)
|
Package
|

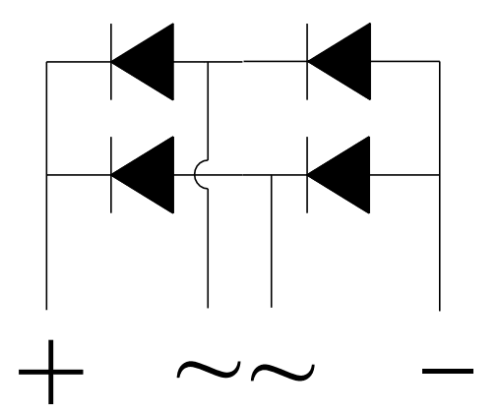

Inner Diagram | Data sheet |
|---|---|---|---|---|---|---|---|---|
| LB10S | 1000 | 0.8 | 30 | 0.95 | 5μA | DF-S |
 |
|
| LB8S | 800 | 0.8 | 30 | 0.95 | 5μA | DF-S |
 |
|
| LB6S | 600 | 0.8 | 30 | 0.95 | 5μA | DF-S |
 |
|
| LB2S | 200 | 0.8 | 30 | 0.95 | 5μA | DF-S |
 |
|
| LB4S | 400 | 0.8 | 30 | 1 | 5μA | ABS |
 |
|
| DF157S | 1000 | 1.5 | 50 | 1.1 | 10μA | DF-S |
 |
|
| DF156S | 800 | 1.5 | 50 | 1.1 | 10μA | DF-S |
 |
|
| DF155S | 600 | 1.5 | 50 | 1.1 | 10μA | DF-S |
 |
|
| DF154S | 400 | 1.5 | 50 | 1.1 | 10μA | DF-S |
 |
|
| DF153S | 200 | 1.5 | 50 | 1.1 | 10μA | DF-S |
 |
|
| DF152S | 100 | 1.5 | 50 | 1.1 | 10μA | DF-S |
 |
|
| DF151S | 50 | 1.5 | 50 | 1.1 | 10μA | DF-S |
 |
|
| MB10S | 1000 | 0.8 | 35 | 1 | 5μA | MBS |
 |
|
| MB8S | 800 | 0.8 | 35 | 1 | 5μA | MBS |
 |
|
| MB6S | 600 | 0.8 | 35 | 1 | 5μA | MBS |
 |
|
| MB2S | 200 | 0.8 | 35 | 1 | 5μA | MBS |
 |
|
| MB1S | 100 | 0.8 | 35 | 1 | 5μA | MBS |
 |
|
| MB4S | 400 | 0.8 | 35 | 1 | 5μA | MBS |
 |
|
| MB10F | 1000 | 0.8 | 30 | 1.05 | 10μA | MBF |
 |
|
| MB8F | 800 | 0.8 | 30 | 1.05 | 10μA | MBF |
 |
|
| MB6F | 600 | 0.8 | 30 | 1.05 | 10μA | MBF |
 |
|
| MB4F | 400 | 0.8 | 30 | 1.05 | 10μA | MBF |
 |
|
| MB2F | 200 | 0.8 | 30 | 1.05 | 10μA | MBF |
 |
|
| MB1F | 100 | 0.8 | 30 | 1.05 | 10μA | MBF |
 |
|
| MB05F | 50 | 0.8 | 30 | 1.05 | 10μA | MBF |
 |
|
| VMB10S | 1000 | 0.8 | 30 | 1 | 5μA | IBS |
 |
|
| VMB8S | 800 | 0.8 | 30 | 1 | 5μA | IBS |
 |
|
| VMB6S | 600 | 0.8 | 30 | 1 | 5μA | IBS |
 |
|
| VMB4S | 400 | 0.8 | 30 | 1 | 5μA | IBS |
 |
|
| VMB0510S | 1000 | 0.5 | 20 | 0.95 | 5μA | IBS |
 |
