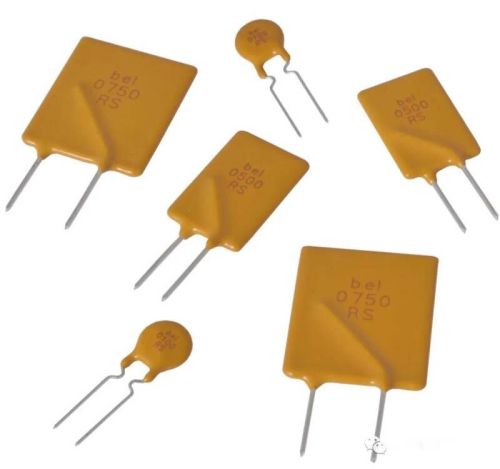

hl30 PPTC

HL30 series

HL30 series
Part Number Ih(A)
All
0.5
0.75
0.9
1.1
1.2
1.35
1.6
1.85
2
2.5
3
4
5
6
7
8
9
Vmax(Vdc)
All
30
Imax(A)
All
40
Trip current(A)
All
2.5
3.75
4.5
5.5
6
6.75
8
9.25
10
12.5
15
20
25
30
35
40
Trip time(s)
All
5
8
11
12.7
14.5
16
17.5
18.8
20
Rmax(Ω)
All
0.02
0.025
0.03
0.04
0.05
0.06
0.07
0.08
0.1
0.12
0.14
0.16
0.18
0.2
0.22
0.37
0.6
Rmin(Ω)
All
0.005
0.01
0.03
0.04
0.05
0.06
0.07
0.08
0.1
0.2
0.25
Pdtyp(W)
All
0.5
0.6
0.7
0.8
0.9
1
1.2
2
2.5
3
3.5
3.8
4
4.2
It(A)
All
1
1.5
1.8
2.2
2.4
2.7
3.2
3.7
4
5
6
8
10
12
14
16
18
Package
All
DIP
Inner Diagram Data sheet
HL30-050 0.5 30 40 2.5 5 0.6 0.25 0.5 1 DIP HL30-050
HL30-050
HL30-075 0.75 30 40 3.75 5 0.37 0.2 0.6 1.5 DIP HL30-075
HL30-075
HL30-090 0.9 30 40 4.5 8 0.22 0.1 0.7 1.8 DIP HL30-090
HL30-090
HL30-110 1.1 30 40 5.5 8 0.2 0.07 0.7 2.2 DIP HL30-110
HL30-110
HL30-120 1.2 30 40 6 8 0.18 0.08 0.8 2.4 DIP HL30-120
HL30-120
HL30-135 1.35 30 40 6.75 8 0.16 0.07 0.8 2.7 DIP HL30-135
HL30-135
HL30-160 1.6 30 40 8 8 0.14 0.06 0.9 3.2 DIP HL30-160
HL30-160
HL30-185 1.85 30 40 9.25 8 0.12 0.05 1 3.7 DIP HL30-185
HL30-185
HL30-200 2 30 40 10 11 0.1 0.04 1.2 4 DIP HL30-200
HL30-200
HL30-250 2.5 30 40 12.5 11 0.08 0.03 1.2 5 DIP HL30-250
HL30-250
HL30-300 3 30 40 15 11 0.07 0.03 2 6 DIP HL30-300
HL30-300
HL30-400 4 30 40 20 12.7 0.06 0.01 2.5 8 DIP HL30-400
HL30-400
HL30-500 5 30 40 25 14.5 0.05 0.01 3 10 DIP HL30-500
HL30-500
HL30-600 6 30 40 30 16 0.04 0.005 3.5 12 DIP HL30-600
HL30-600
HL30-700 7 30 40 35 17.5 0.03 0.005 3.8 14 DIP HL30-700
HL30-700
HL30-800 8 30 40 40 18.8 0.025 0.005 4 16 DIP HL30-800
HL30-800
HL30-900 9 30 40 40 20 0.02 0.005 4.2 18 DIP HL30-900
HL30-900
