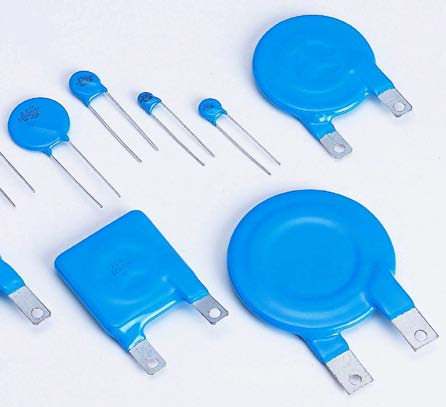

Plug-in 40D series

Plug-in 40D series
Part Number Vrwm(AC)
All
130
140
150
175
190
210
230
250
275
300
320
350
385
420
460
485
510
550
575
625
680
750
880
1000
Vrwm(DC)
All
170
180
200
225
250
275
300
320
350
385
415
460
505
560
615
640
670
745
765
825
895
990
1140
1280
Vbr@1mA(Typ)
All
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
780
820
910
950
1000
1100
1200
1400
1600
Vc@1A
All
340
360
395
455
500
550
595
650
710
775
845
925
1025
1120
1240
1290
1355
1500
1570
1650
1815
1980
2310
2640
Ipp @8/20
All
300
I(A)Standard
All
40000
I(A)High Surge
All
-
(J)Standard
All
370
400
430
470
510
550
570
590
660
720
770
810
860
900
940
980
1080
1150
1200
1260
1380
1550
1700
(J)High Surge
All
-
Rated power(W)
All
-
C@1KHz(pf)
All
1150
1300
1500
1600
1800
2000
2200
2900
3000
3200
3500
3800
4000
4200
4300
4900
5100
6200
6700
7300
7600
8000
8200
8400
Inner Diagram Data sheet
40D201K 130 170 200 340 300 40000 - 370 - - 8400 40D201K
40D201K
40D221K 140 180 220 360 300 40000 - 400 - - 8200 40D221K
40D221K
40D241K 150 200 240 395 300 40000 - 430 - - 8000 40D241K
40D241K
40D271K 175 225 270 455 300 40000 - 470 - - 7600 40D271K
40D271K
40D301K 190 250 300 500 300 40000 - 510 - - 7300 40D301K
40D301K
40D331K 210 275 330 550 300 40000 - 550 - - 6700 40D331K
40D331K
40D361K 230 300 360 595 300 40000 - 570 - - 6200 40D361K
40D361K
40D391K 250 320 390 650 300 40000 - 590 - - 5100 40D391K
40D391K
40D431K 275 350 430 710 300 40000 - 660 - - 4900 40D431K
40D431K
40D471K 300 385 470 775 300 40000 - 720 - - 4300 40D471K
40D471K
40D511K 320 415 510 845 300 40000 - 770 - - 4200 40D511K
40D511K
40D561K 350 460 560 925 300 40000 - 810 - - 4000 40D561K
40D561K
40D621K 385 505 620 1025 300 40000 - 860 - - 3800 40D621K
40D621K
40D681K 420 560 680 1120 300 40000 - 900 - - 3500 40D681K
40D681K
40D751K 460 615 750 1240 300 40000 - 940 - - 3200 40D751K
40D751K
40D781K 485 640 780 1290 300 40000 - 980 - - 3000 40D781K
40D781K
40D821K 510 670 820 1355 300 40000 - 1080 - - 2900 40D821K
40D821K
40D911K 550 745 910 1500 300 40000 - 1150 - - 2200 40D911K
40D911K
40D951K 575 765 950 1570 300 40000 - 1200 - - 2000 40D951K
40D951K
40D102K 625 825 1000 1650 300 40000 - 1260 - - 1800 40D102K
40D102K
40D112K 680 895 1100 1815 300 40000 - 1380 - - 1600 40D112K
40D112K
40D122K 750 990 1200 1980 300 40000 - 1380 - - 1500 40D122K
40D122K
40D142K 880 1140 1400 2310 300 40000 - 1550 - - 1300 40D142K
40D142K
40D162K 1000 1280 1600 2640 300 40000 - 1700 - - 1150 40D162K
40D162K
