1.15 Automotive Air Conditioning Panel
Leiditech recommends solutions and protective devices for automotive air conditioning panels

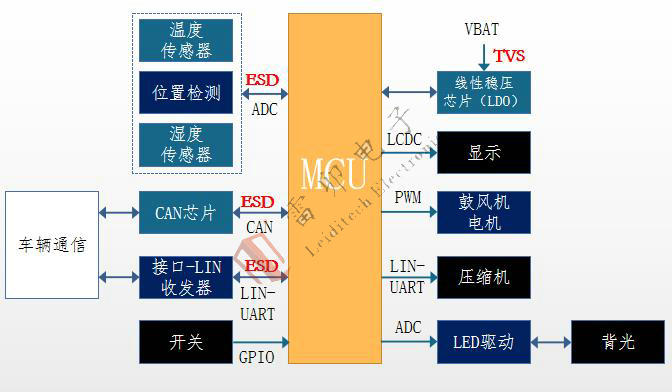

The air conditioning control panel mainly consists of MCU central controller, sensors, etc.
The air conditioning control panel is a panel where users indirectly control the air conditioning control mechanism to achieve various functions of the air conditioning. There are function selection keys, temperature keys, air conditioning keys, and rear window defrosting keys on the car air conditioning control panel. A car air conditioning controller belongs to a control device for car air conditioning equipment. Adjust the car air conditioning system with refrigeration, ventilation, air exchange, and defrosting functions.
Industry hotspots:At present, in order to improve their competitiveness, various car companies have integrated air conditioning control panels onto touch screens, shared sensors across the entire vehicle, and established more sound functional control logic, which has become a research hotspot. To achieve sound functional control logic, MCU's rich peripheral devices are indispensable.
Leiditech recommends products for automotive air conditioning panels:
|
Category |
Brand |
Product and product overview |
|
ESD Diode |
Leiditech |
sensor：LC24CI Package SOD-323 peak working reverse voltage24V，Leakage current1ua
|
|
ESD Diode |
Leiditech |
For LIN:SD24C Package SOD-323 peak working reverse voltage24V，Leakage current0.5ua or PESD1LIN Package SOD-323 peak working reverse voltage24V，Leakage current0.5ua
|
|
ESD Diode |
Leiditech |
For CAN chips：SMC24 Package SOT-23 peak working reverse voltage24V，Leakage current0.5ua |
|
TVS Diode |
Leiditech |
Load dump protection of power port：5.0SMDJ24CA Package SMC peak working reverse voltage24V，Leakage current2ua SM8S24CA Package SOT-23 peak working reverse voltage24V，Leakage current5ua |
|
Rectifier |
Leiditech |
Anti reverse connection of power supply：SS54C Package SMC VRRM 40V 0.5IR |
Leiditech can provide various interface electrostatic lightning protection solutions to solve electromagnetic compatibility problems for customers, and provide more protection solutions，Please search for the mini program "EMC Electromagnetic Compatibility Community" on WeChat. Welcome to contact Hu Gong 18016225001.
