2.9 Air purifier
Leiditech recommends air purifier protection devices and solutions

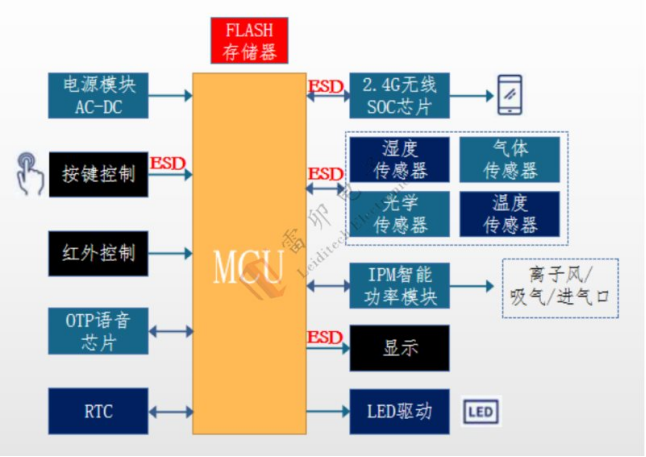

The air purifier mainly consists of a motor, fan, air filter screen, and other auxiliary purification devices, such as a negative ion generator, high-voltage circuit, etc. The quality of the air filter directly affects the effectiveness of the air purifier. This plan is mainly designed for the electronic control system of the air purifier. In the system design, the concentration of PM2.5 in the air is detected through dust sensors. At the same time, the temperature and humidity data in the air and the air quality detection data, which are the three main input data, are transmitted to the MCU. After being processed by a single chip computer, the parameters are presented in the display module, which has an over limit alarm function. At the same time, communication can be carried out through the Wi module, Transfer the collected data to the mobile app.
In recent years, the air purifier industry has developed rapidly. Although the air purifier industry is currently developing rapidly, the penetration rate of air purifiers in American households is 27%, Japan is 17%, and China is around 1%. It can be seen that there is still considerable room for development in the Chinese air purifier market. And the MCU microcontroller plays a crucial role.
Leiditech recommends products for air purifiers：
|
Class |
Brand |
Product and product overview |
|
ESD Diode |
Leiditech |
For sensor： LC24CI package SOD-323 IEC 61000-4-2 (ESD) ±30kV; 24V VRWM;3A IPP
|
|
ESD Diode |
Leiditech |
For 2.4G wireless SOC chip：ULC0511CDN package DFN1006, –IEC 61000-4-2 (ESD) ±30kV，5V VRWM，4.5A IPP |
|
ESD Diode |
Leiditech |
For button control：SDA05W5 package SOT-353 IEC 61000-4-2 (ESD) Air discharge: ±30kV Contact discharge: ±25kV,5V VRWM，6A IPP LC05CI package SOD-323,IEC 61000-4-2 (ESD) ±30kV,5V VRWM，18A IPP
|
|
ESD Diode |
Leiditech |
For LED display：ULC0524P package DFN2510P10, IEC 61000-4-2 (ESD) Air discharge: ±30kV Contact discharge: ±25kV ,5V VRWM,5A IPP |
Leiditech can provide various interface electrostatic lightning protection solutions to solve electromagnetic compatibility problems for customers, and provide more protection solutions，Please search for the mini program "EMC Electromagnetic Compatibility Community" on WeChat. Welcome to contact Hu Gong 18016225001.
