1.28 Car roof module
Roof module
1、 Overview of the plan:

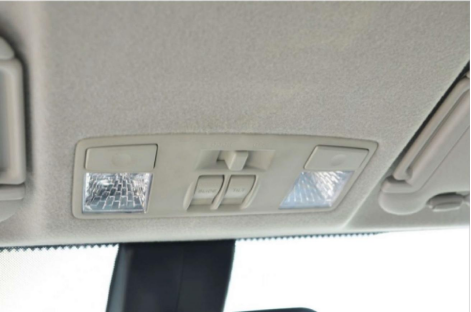

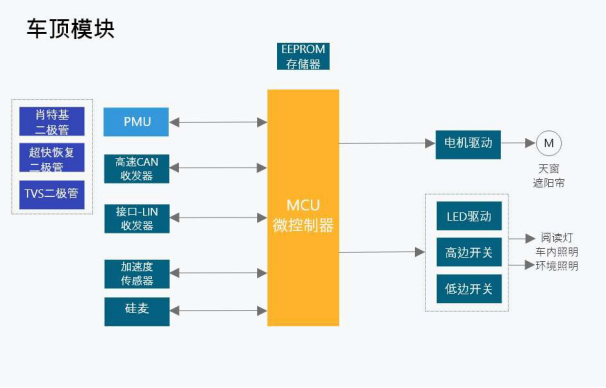

The roof control module integrates comfort functions into a dedicated ECU, such as sunroof control, light bulbs, or LED for several interior and environmental lighting functions. The bus connection connects the functions of this module with central functions, such as car safety and anti-theft.
2. Recommended products for roof modules
|
Category |
Brand |
Product and product overview |
|
TVS Diode |
Leiditech |
Vehicle power supply：SMDJ24CA package SMC,24V VRWM,77.1A IPP SM8S36CA package DO-218AB,36V VRMW,114A IPP |
|
ESD Diode |
Leiditech |
For high-speed CAN transceiver：SMC24 package SOT-23 IEC 61000-4-2 (ESD)±30kV,24V VRWM，9A IPP |
|
ESD Diode |
Leiditech |
For interface LIN transceiver：SD24C package SOD-323,IEC 61000-4-2 (ESD)±30kV,24V VRWM，9A IPP |
|
ESD Diode |
Leiditech |
For acceleration sensors：LC24CI package SOD-323 IEC 61000-4-2 (ESD)±30kV; 24V VRWM;3A IPP |
|
Schottky |
Leiditech |
SS10U45 package TO-277, 45V VRRM, 10A IF(AV) |
