Leiditech recommends protective devices and schemes for automobile Charging station

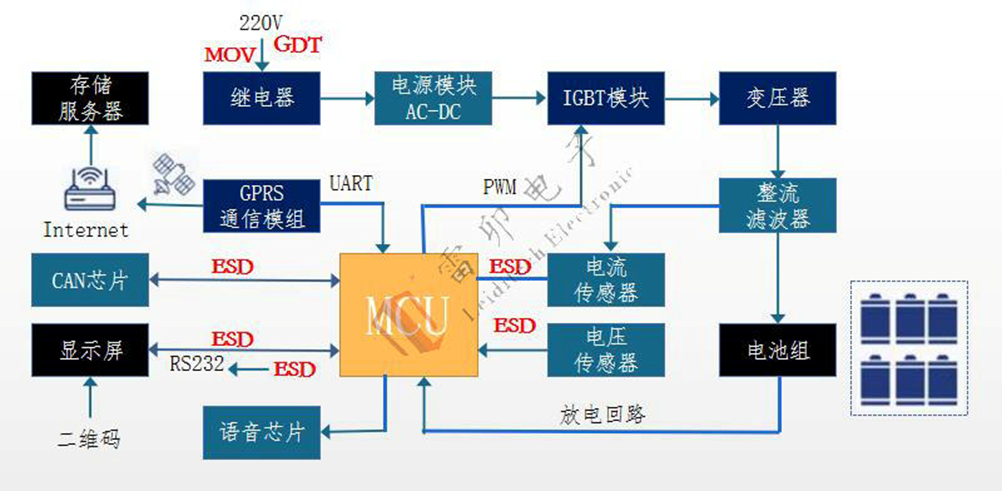

The Charging station is generally composed of charging module, power device, IGBT module, filter, relay, display screen, etc. The input end of the Charging station is directly connected to the AC power grid, and the output end is equipped with a charging plug for charging the electric vehicle. When the charging system is working, the main circuit and the control circuit interact to realize the safe, fast and intelligent charging function of the Lead–acid battery.
People can perform corresponding charging methods, charging times, and other operations by scanning the QR code. The GPRS communication module communicates with the MCU through UART to achieve data upload. The display screen can display data such as charging amount, cost, and charging time. The voice module can prompt the user about the charging situation.
IGBT module plays a vital role in Charging station, and is the core technical component of Charging station and other equipment. IGBT module accounts for about 20% of the cost of Charging station. IGBT module is used as switching element in Charging station.
IGBT combines the advantages of GTR and MOSFET, and has good characteristics. IGBT module is applied in the control circuit of Charging station: mainly composed of DSP controller, extended RAM, IGBT drive protection circuit, IGBT temperature monitoring circuit, Depolarization discharge circuit, three-phase current and voltage monitoring circuit, battery status monitoring protection circuit, etc., with the purpose of realizing intelligent charging.
Leiditech recommends products for Charging station:
|
Category |
Brand |
Product and product overview |
|
ESD Diode |
Leiditech |
For CAN chips：SMC24 packageSOT-23peak working reverse voltage 24V，Leakage current0.5ua |
|
ESD Diode |
Leiditech |
For RS232：SMC15 package SOT-23 peak working reverse voltage 15V，Leakage current0.5ua |
|
ESD Diode |
Leiditech |
Sensor：LC24CI packageSOD-323 peak working reverse voltage 24V，Leakage current1ua |
|
ESD Diode |
Leiditech |
SIM card for anti-static use：SRV05-4packageSOT-26 peak working reverse voltage 5V，Leakage current1ua |
|
ESD Diode |
Leiditech |
For anti-static use at the network port： LC3311CCW packageSOD-323 peak working reverse voltage 3.3V，Leakage current0.5ua SLVU2.8-4packageSOP-08 peak working reverse voltage 2.8V，Leakage current1ua |
|
ESD Diode |
Leiditech |
Used for anti-static display screen：ULC0524PpackageDFN2510P10 peak working reverse voltage 5V，Leakage current0.5ua |
|
GDT/MOV |
Leiditech |
220VPower lightning protection: 2R600-8L DC jump voltage600V Maximum surge10KA 20D561KJ Varistor voltage 504-616V Leakage current≤20ua |
Leiditech can provide various interface electrostatic lightning protection solutions to solve electromagnetic compatibility problems for customers, and provide more protection solutions，Please search for the mini program "EMC Electromagnetic Compatibility Community" on WeChat. Welcome to contact Hu Gong 18016225001.
