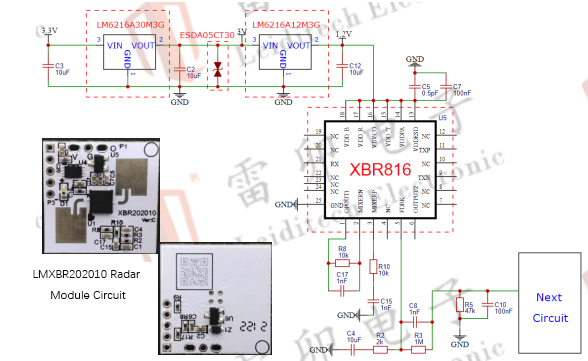

4.1 Circuit Solution for Radar Module LMXBR202010
The LMXBR202010 radar module application case demonstrates its versatility in smart lighting, smart security, home automation, and intelligent household appliances.

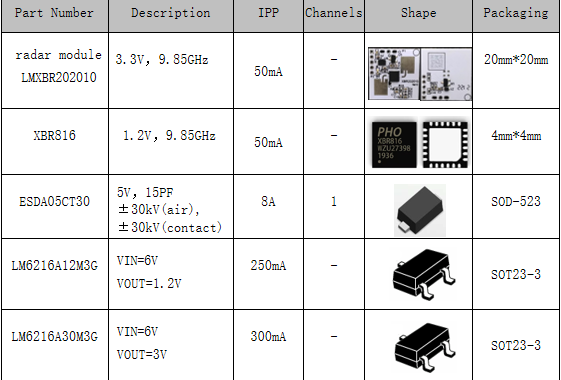

Radar Chip: XBR816
Center Frequency: 9.85 GHz
Supply Voltage: 1.2V
Maximum Operating Current (IPP): 50 mA
Buck Converter (DCDC): LM6216A12M3G (Output Voltage: 1.2V), LM6216A30M3G (Output Voltage: 3.3V)
ESD Protection Device: ESDA05CT30 (Working Voltage: 5V)
The components used in this module have a small packaging footprint, saving space in designs. It complies with IEC 61000-4-2 at Level 4, offering protection against ±30 kV contact and air discharge, making it robust against electrostatic discharge events.
