1.11 DASH CAM

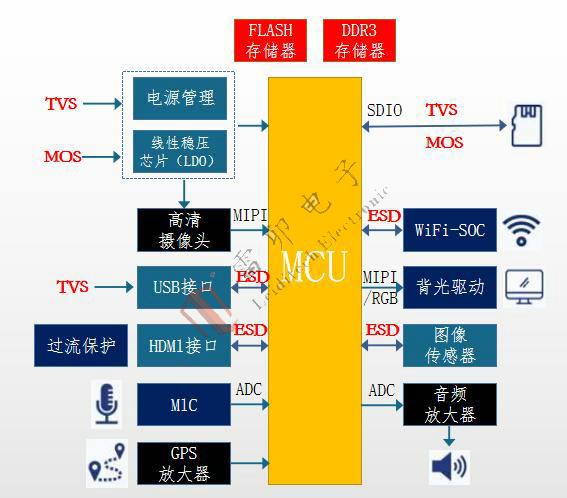

The dash cam is generally composed of an MCU central processing unit, power supply, camera, GPS, gravity sensing, processor, storage, microphone, display screen, etc. The driving recorder has been widely used in China, and its role in restraining illegal driving behavior of drivers and recording the driving process of vehicles has also begun to emerge. With the rapid development of modern technology, the technology of recorder products has also been rapidly updated, and some cutting-edge technologies have begun to expand and apply on recorders. At present, the basic functions of the recorder are: circular recording, motion detection, photography, voice recognition, impact lock file, vibration recording, with navigation, electronic warning, GPS trajectory playback, front and rear dual recording, all-weather monitoring, and other functions. In the future, there may be functions such as trajectory deviation and collision avoidance.
Leiditech recommends models and products for driving recorders:
|
Category |
Brand |
Product and product overview |
|
ESD Diode |
Leiditech |
For sensor：LC24CI Package SOD-323 IEC 61000-4-2 (ESD) ±30kV; 24V VRWM;3A IPP |
|
ESD Diode |
Leiditech |
For LIN: SD24C Package SOD-323,IEC 61000-4-2 (ESD) ±30kV,24V VRWM，9A IPP or PESD1LIN Package SOD-323,IEC 61000-4-2 (ESD) ±23kV,24V VRWM 40A IPP
|
|
ESD Diode |
Leiditech |
For CAN chips ：SMC24 Package SOT-23 IEC 61000-4-2 (ESD) ±30kV,24V VRWM，9A IPP |
|
ESD Diode |
Leiditech |
For USB interface：SR05 Package SOT-143 IEC 61000-4-2 (ESD) ±20kV,5V VRWM，3A IPP |
|
ESD Diode |
Leiditech |
For HDMI interface：USRV05-4 Package SOT-26 IEC 61000-4-2 (ESD) Air discharge: ±15KV Contact discharge: ±8kV,5V VRWM，5A IPP |
|
ESD Diode |
Leiditech |
ULC0511CDN Package DFN1006, –IEC 61000-4-2 (ESD) ±30kV，5V VRWM，4.5A IPP |
|
TVS Diode |
Leiditech |
Load dump protection of power port：SMDJ24CA Package SMC,24V VRWM,77.1A IPP SM8S24CA Package DO-218AB,24V VRWM,170A IPP |
|
Rectifier |
Leiditech |
Anti reverse connection of power supply：SS54C Package SMC 40V VRRM,5.0A IF(AV) |
