Industry applications
2.1 Electrostatic Protection Solution for 4-20mA Sensors

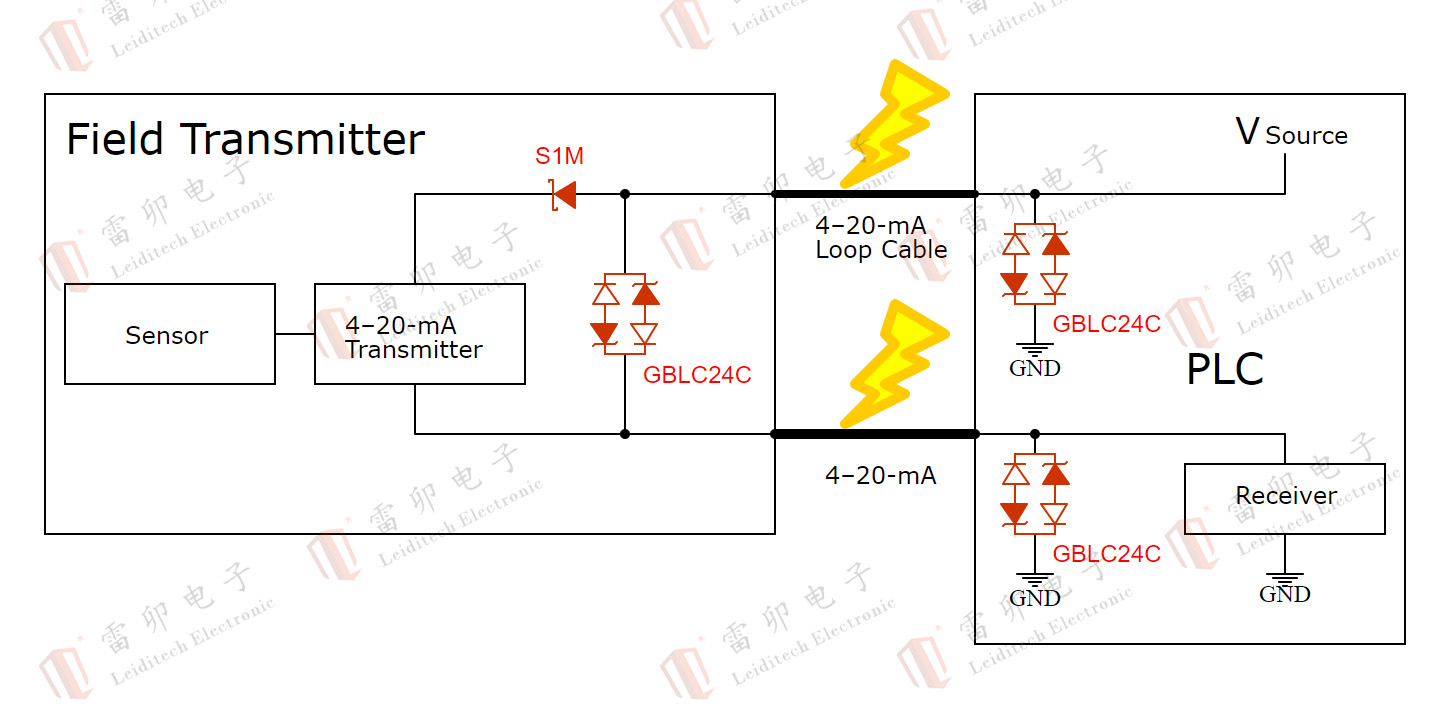

Protection for Conventional 4-20mA 24V-Powered Sensitive Sensor Chips

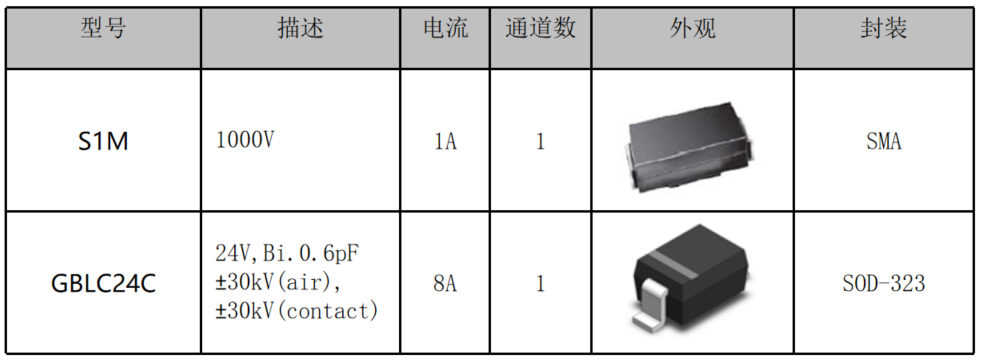

Protection Devices: S1M and LC2401CW.
Advantages: Small packaging, low capacitance, large current protection. Complies with IEC61000-4-2, Level 4, supporting 30kV contact discharge and
30kV air discharge.
