1.7 Engine - In-Cylinder Direct Injection
Leiditech recommends automotive engine protection devices and solutions

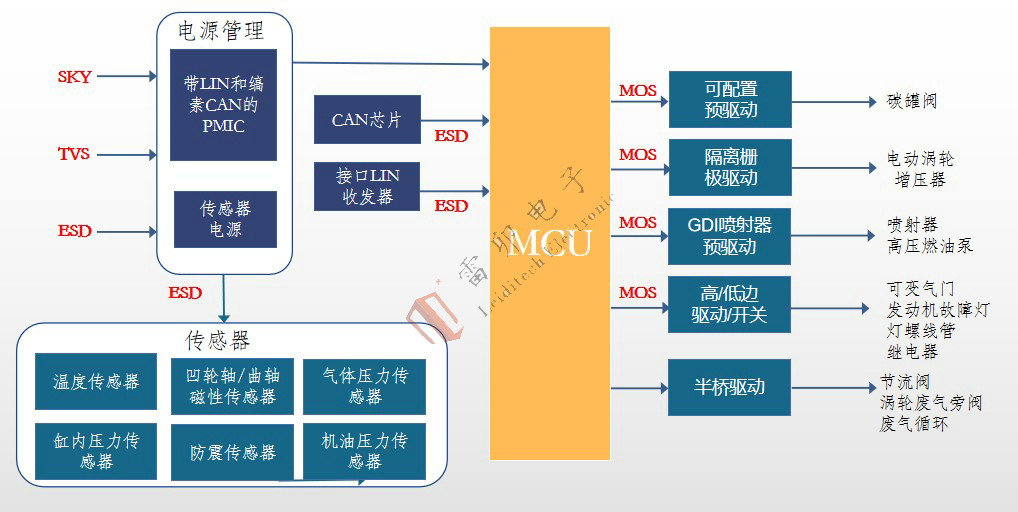

The engine is generally composed of a power supply unit, MCU, sensors, driving devices, etc.
An engine is a machine that can convert other forms of energy into mechanical energy, including jet engines, electric motors, internal combustion engines, etc.
In cylinder direct injection engines place the fuel injection nozzle inside the cylinder, allowing both fuel injection and fuel air mixing processes to occur within the cylinder. This allows for more precise control of fuel volume and fuel air mixing, eliminating the drawbacks of out of cylinder injection. At the same time, the concentration of the mixture in the cylinder can also be precisely controlled, and high-pressure fuel can be more fully mixed under the turbulence in the cylinder, thus greatly improving combustion efficiency and improving power performance.
However, most electric injection engines on the market place the fuel injection nozzle in the intake manifold, but the disadvantage is that the air fuel ratio of the mixture is difficult to accurately control.
After experiencing the stages of carburetor, single point electronic injection, and multi-point electronic injection technology, engine oil gas mixing technology has gradually entered the era of direct injection. Direct injection has brought us more efficient fuel utilization, making it a target of research and development by major manufacturers.
Leiditech recommends the following products for automotive engines:
|
Category |
Brand |
Product and product overview |
|
ESD Diode |
Leiditech |
Sensor：LC24CI PackageSOD-323 peak working reverse voltage24V，Leakage current1ua
|
|
ESD Diode |
Leiditech |
For LIN:SD24C PackageSOD-323 peak working reverse voltage24V，Leakage current0.5ua Or PESD1LIN PackageSOD-323 peak working reverse voltage24V，Leakage current0.5ua
|
|
ESD Diode |
Leiditech |
For CAN chips：SMC24 PackageSOT-23 peak working reverse voltage24V，Leakage current0.5ua |
|
TVS Diode |
Leiditech |
Power port load protection：5.0SMDJ24CA PackageSMC peak working reverse voltage24V，Leakage current2ua SM8S24CA PackageSOT-23 peak working reverse voltage24V，Leakage current5ua |
|
Rectifier tube |
Leiditech |
Anti reverse connection of power supply：SS54C PackageSMC VRRM 40V 0.5IR |
Leiditech can provide various interface electrostatic lightning protection solutions to solve electromagnetic compatibility problems for customers, and provide more protection solutions，Please search for the mini program "EMC Electromagnetic Compatibility Community" on WeChat. Welcome to contact Hu Gong 18016225001.
