4.29 (ETC) Automatic Toll Collection System

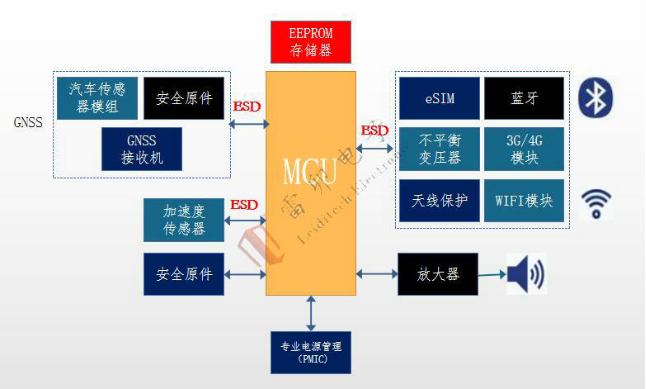

Leiditech recommends protection devices and solutions for the automatic toll collection system
The automatic toll collection system utilizes digital payment services in restricted areas, parking lots, toll bridges, and other controlled areas (including areas subject to congestion or urban toll restrictions). GNSS enables vehicle positioning, while electronic toll collection and open road toll collection rely on dedicated short range communication 3G/4G modules, WIFI modules, etc. between the vehicles and toll stations, enabling secure identification and payment processes.
At present, the ETC equipment OBU and RSU are based on DSRC communication technology and are only used for information connection and charging. Some areas can realize the path recognition function. With the rapid penetration of OBU equipment and the construction of RSU units, ETC is expected to become an important starting point for building the Vehicle-to-everything and moving towards intelligent transportation. In addition to vehicle to road, it can achieve vehicle to vehicle, vehicle to pedestrian and other communications. At the same time, in terms of function, it is not only charging, but also expanding to safety applications, It is expected that by 2023, the penetration rate of new cars will reach 67%, with a shipment of 75 million. Calculated at a unit price of 200 US dollars, the market size will reach 15 billion US dollars, and it has a deep technological accumulation in the wireless radio frequency communication industry. By entering the smart transportation field through ETC chips, it is expected to benefit from the explosion of the industry in the future.
Leiditech recommends products for automatic toll collection systems：
|
Category |
Brand |
Product and product overview |
|
GDT ceramic gas discharge tube |
Leiditech |
For antenna protection：SMD4532-090NF package SMD-090NFsquare（4.5*3.2） 600Max.Impulse Breakdown Voltage(1KV/us) ，3KA Discharge Current(8/20us) (10 times) |
|
GDT ceramic gas discharge tube |
Leiditech |
For lightning protection of network interface：3R090-5S package Encapsulated 3R patch 5 * 7.6 (1 head square and 1 head round) 600Max.Impulse Breakdown Voltage(1KV/us) ，10KA Discharge Current(8/20us) (10 times) |
|
ESD Diode |
Leiditech |
For Counter-electromotive force of motor：5.0SMDJ24CA package SMC,24V VRWM,131.1A IPP |
|
ESD Diode |
Leiditech |
For lightning protection of network interface：LVU2.8-4 package SOP-08 IEC 61000-4-2 (ESD) ±30kV,2.8V VRWM 30A IPP |
|
ESD Diode |
Leiditech |
For antennas：ULC0511CDN package DFN1006, –IEC 61000-4-2 (ESD) ±30kV，5V VRWM，4.5A IPP |
|
ESD Diode |
Leiditech |
For WIFI model：ULC0511CDN package DFN1006, –IEC 61000-4-2 (ESD) ±30kV，5V VRWM，4.5A IPP |
|
ESD Diode |
Leiditech |
For sensor：LC05CI package SOD-323,IEC 61000-4-2 (ESD) ±30kV,5V VRWM，18A IPP |
Leiditech can provide various interface electrostatic lightning protection solutions to solve electromagnetic compatibility problems for customers, and provide more protection solutions，Please search for the mini program "EMC Electromagnetic Compatibility Community" on WeChat. Welcome to contact Hu Gong 18016225001.
