Smart City
4.3 Foreign object prevention monitoring and warning equipment
Leiditech recommends protection devices and solutions for foreign object monitoring and warning equipment

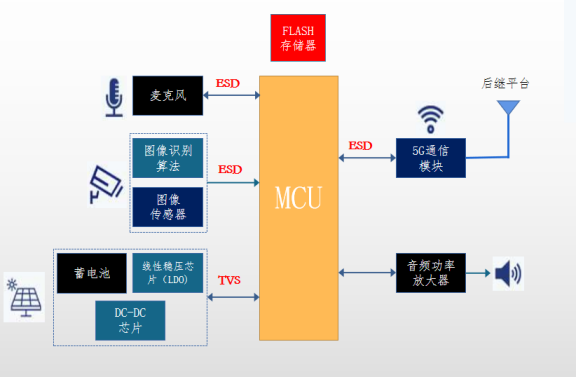

The 5G anti foreign object monitoring and warning equipment mainly absorbs solar energy through photovoltaic panels, charging the back-end large capacity battery "online", driving the real-time transmission of 5G signals to check the operation of the line channel and the surrounding environment. By using image recognition algorithms, the identification of foreign objects such as kites and the analysis of fishing hazards can be achieved. In response to behaviors that threaten the safety of line operation, automatic recording and playback as well as manual remote calling can be used to provide reminders, achieving early detection, real-time warning, and timely disposal.
Recommended Leiditech products for foreign object prevention monitoring and warning equipment:
|
Category |
Brand |
Product and product overview |
|
ESD Diode |
Leiditech |
For microphone：ULC0542C,package DFN1006,–IEC 61000-4-2 (ESD) ±22kV，VRWM=5V ，IPP=4A , CJ =0.3PF. |
|
ESD Diode |
Leiditech |
For 5G communication module：ULC0511CDN30,package DFN1006,–IEC 61000-4-2 (ESD) ±30kV，VRWM=5V ，IPP=4.5A , CJ =0.22PF. |
|
GDT |
Leiditech |
For 5G communication module：2R090SD-8: package 8*6 ，90V, 10KA |
|
ESD Diode |
Leiditech |
For SPI interface of image sensors：SR33-04A,package SOT23-6,–IEC 61000-4-2 (ESD) ±20kV, VRWM=3.3V ，Ipp =11A ,CJ =0.3PF. |
|
ESD Diode |
Leiditech |
For LDO： GBLC03C ,package SOD323,–IEC 61000-4-2 (ESD) ±30kV，VRWM=3.3V ，IPP=20A , CJ =0.6PF. |
|
TVS Diode |
Leiditech |
For DC DC chip：SMCJ15CA package DO-214AB，VR=15V; Ppp=1.5KW, IPP=61.5A |
