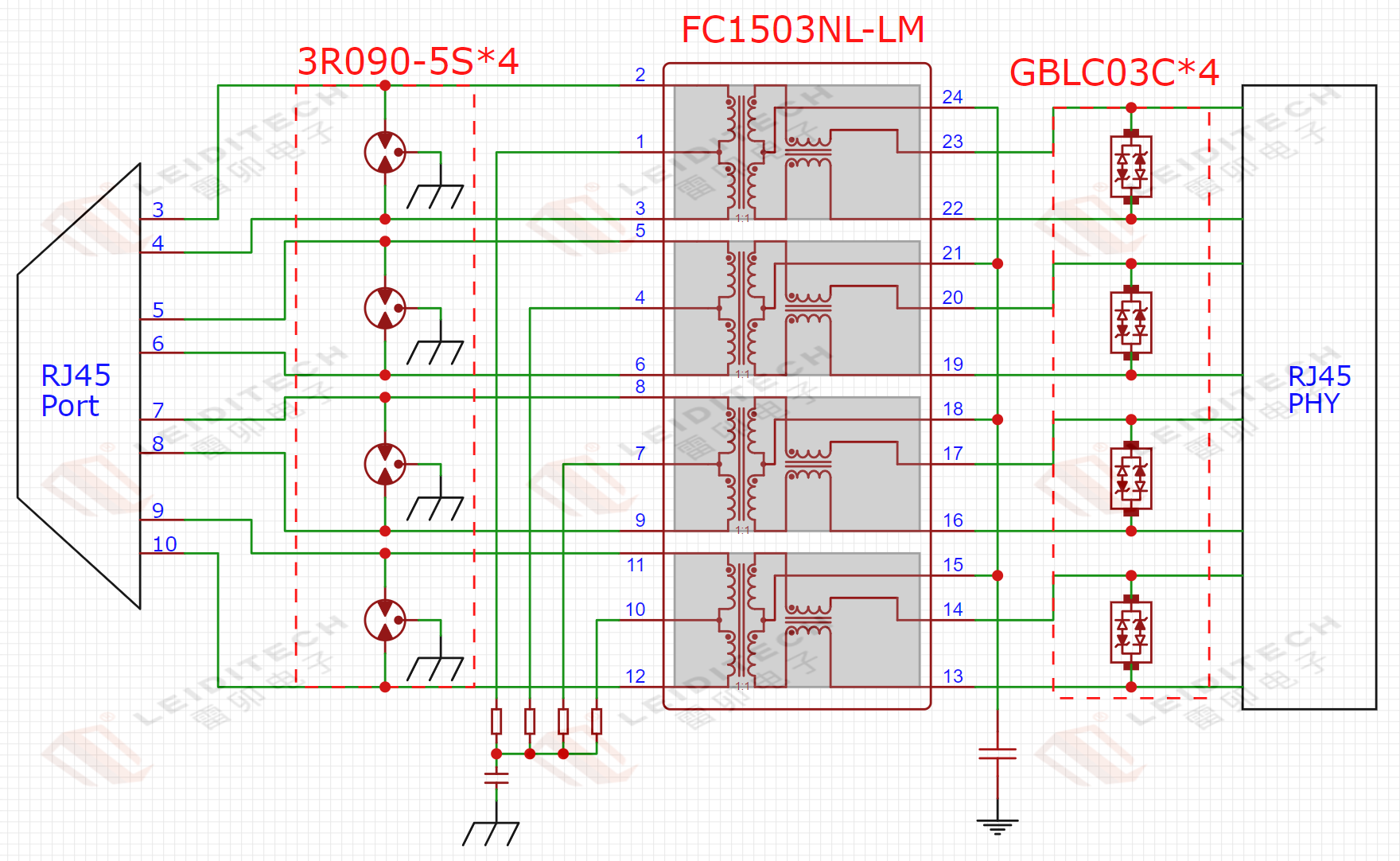

2.3 Gigabit Ethernet discrete electrostatic protection scheme
Advantages of the Solution: For outdoor Gigabit Ethernet port (1000M) surge protection, this solution employs a two-stage protection system for reliable operation, ensuring signal integrity at high temperatures, and meeting IEC61000-4-2 Level 4 standards with contact discharge ratings of 30kV and air discharge ratings of 30kV. It also conforms to IEC61000-4-5 with a 10/700μs waveform, 40Ω impedance, 6kV voltage rating, and ±5 pulses. This solution ensures no packet loss during high-temperature transmission.
