signal protection

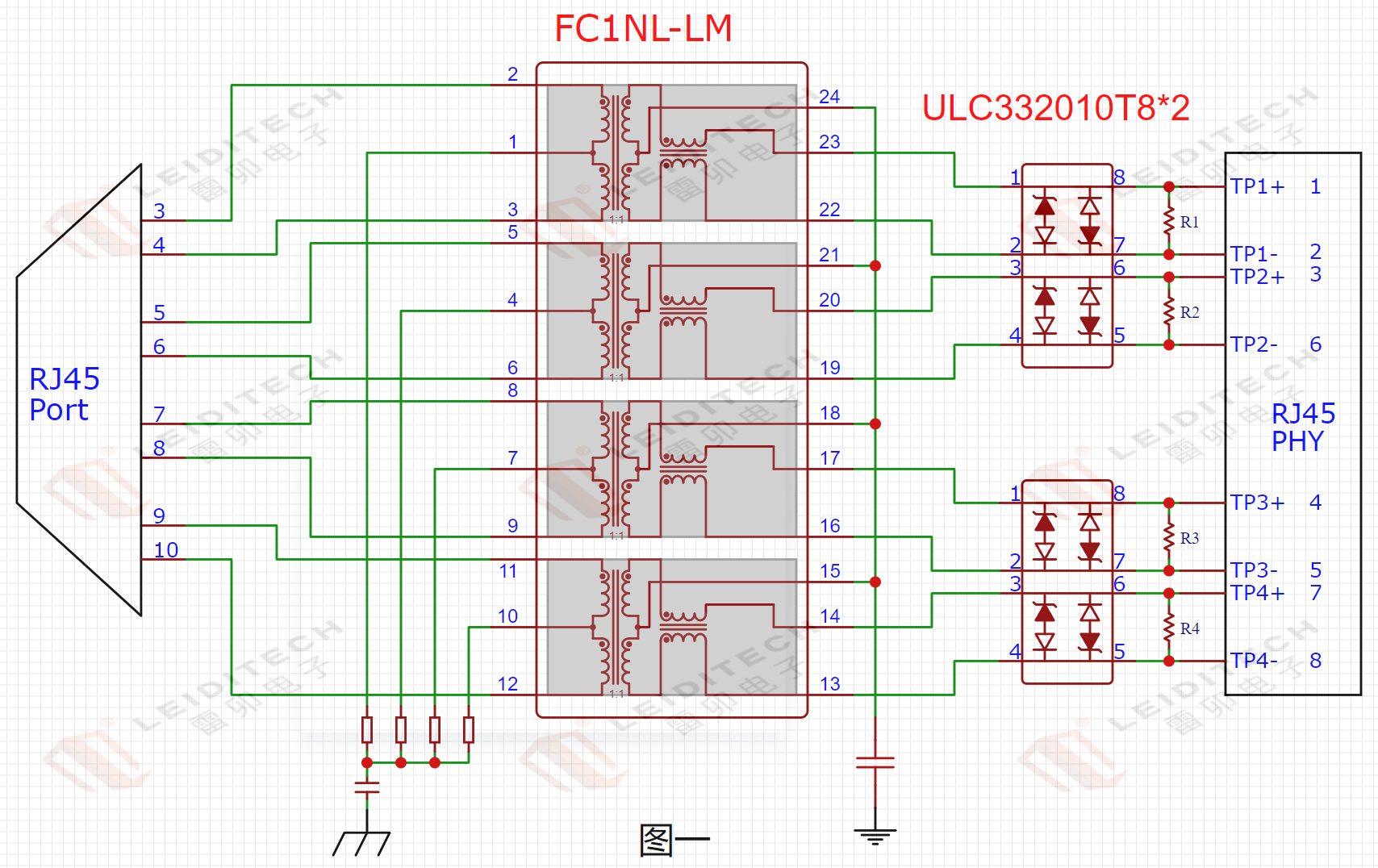

2.5.1 Small volume lightning protection scheme for gigabit network

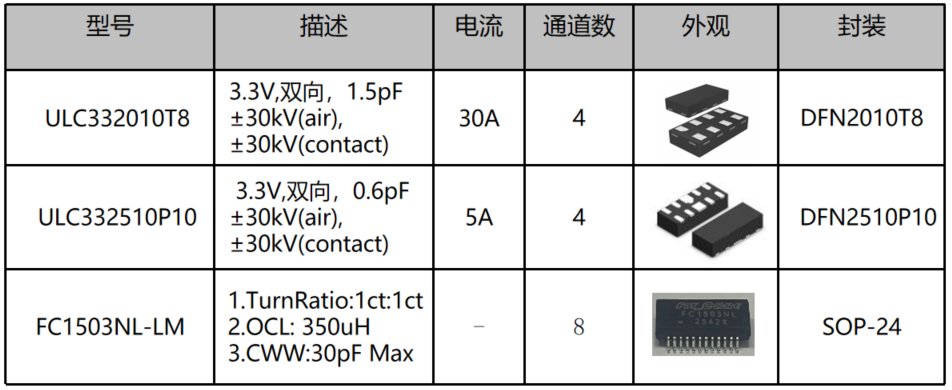

Advantages of the Solution: For Ethernet port ESD protection, this solution uses integrated multi-channel devices to ensure signal integrity, save space, and meet IEC61000-4-2 Level 4 standards with contact discharge ratings of 30kV and air discharge ratings of 30kV.

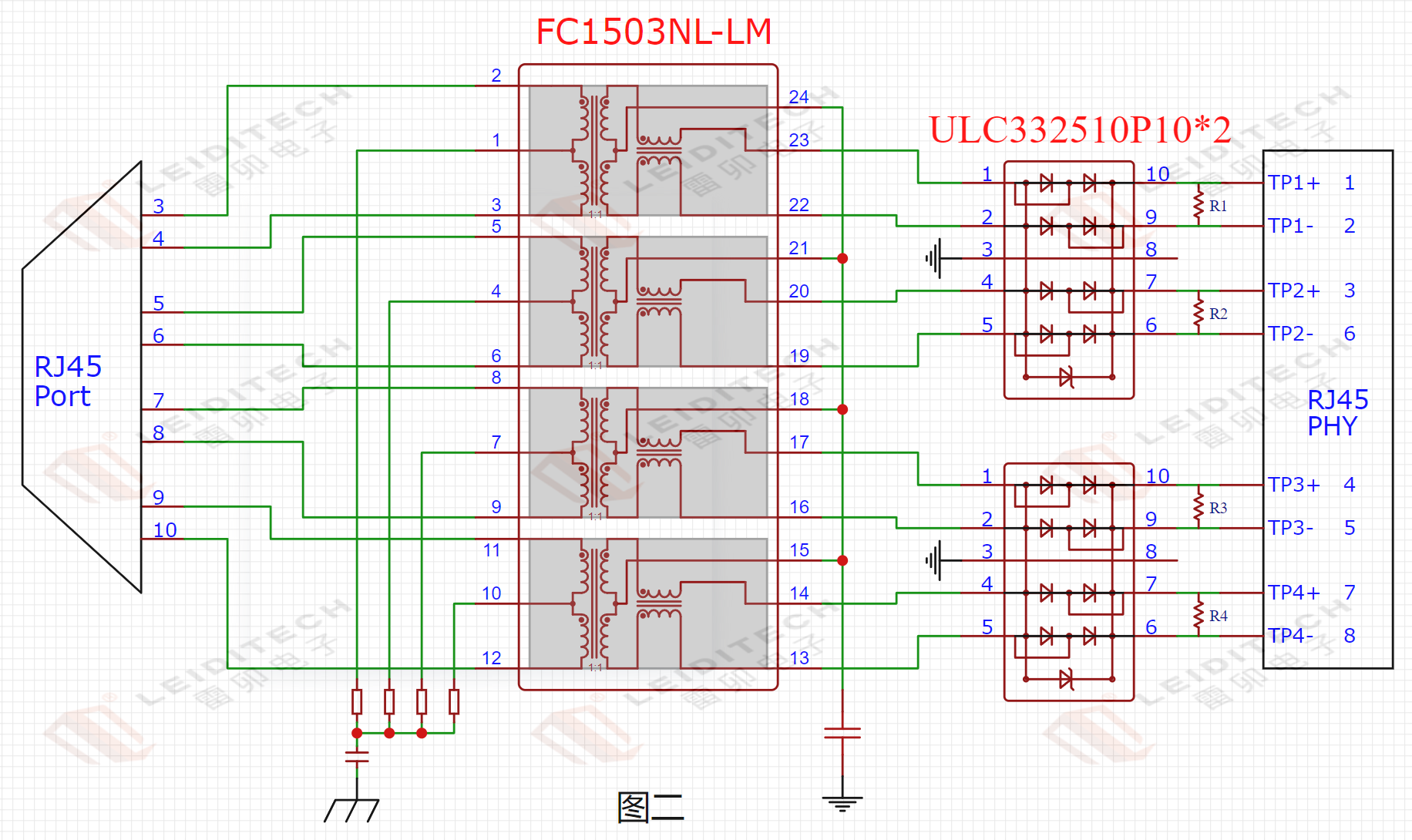

In the component ULC332510P10, pins 6, 7, 9, and 10 are left unconnected (no-load). There are direct connections between the following pin pairs:
pins 5 and 10, pins 4 and 9, pins 2 and 7, and pins 1 and 6.
