37.1 HD-SDI Interface Protection Solution

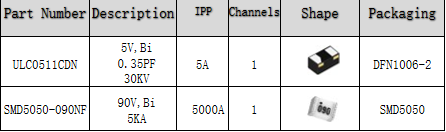

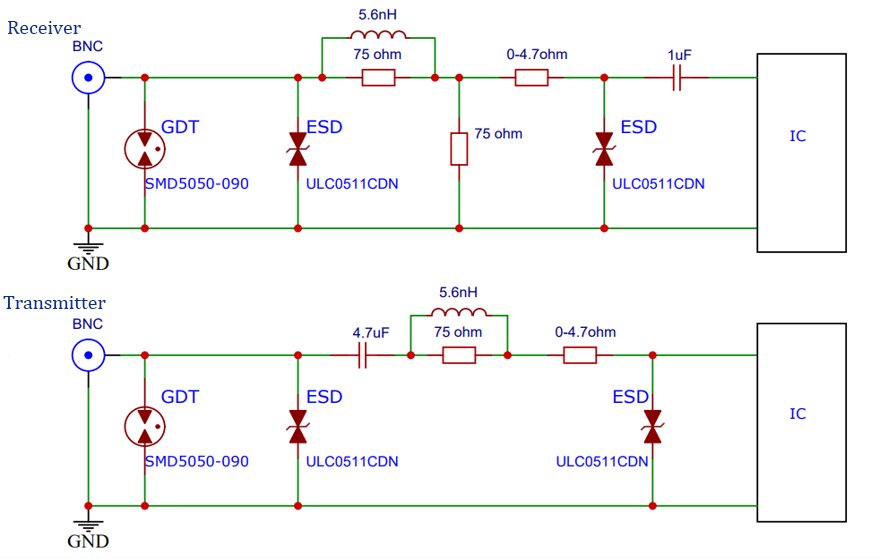

Advantages of this solution: As a real-time high-definition technology, the application scope of HD-SDI is increasingly widespread, making the protection of its receiving and transmitting ends essential. Leiditech Electronics provides the following protection solution for this interface.
Features: Transmission frequency of 1.485G–2.97GHz. Compliant with IEC61000-4-5 standards (10/700US 6KV, 1.2/50US & 8/20US 6KV/3KA) and IEC61000-4-2 standards for contact discharge of 8KV and air discharge of
