2.15 Infrared Camera
Leiditech recommends home security and monitoring protection devices and solutions

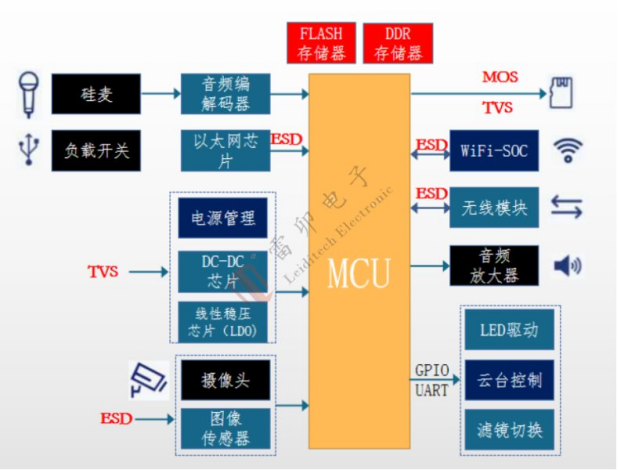

The home security monitoring system mainly consists of a camera, wireless module, central control unit, power module, alarm, etc. By closely integrating security cameras with mobile networks through mobile phones and computers, real-time monitoring of home safety is achieved. If someone intrudes into their home, the installed monitoring system will be sent to the user's mobile phone through a communication module. The phone owner can use this information to timely understand the current situation at home, even if it is thousands of miles away, the situation at home can be remotely monitored.
High end monitoring systems will also become more intelligent, such as providing advanced video intelligent analysis functions in video monitoring, including intelligent analysis of areas and boundaries, portrait recognition, character tracking, etc; We will also combine medical and call functions to add applications in linkage alarm and security services. This is a great development project for various security manufacturers and operators. As the first step in IoT applications, WiFi modules are widely used in fields such as smart homes.
Recommended Leiditech products for cameras：
|
Category |
Brand |
Product and product overview |
|
TVS Diode |
Leiditech |
SIM card: SRV05-4 package SOT-26 IEC 61000-4-2 (ESD) Air discharge: ±15kV Cantact discharge: ±8kV.5V VRWM,15A IPP |
|
TVS Diode |
Leiditech |
For WIFI-SOC:ULCO5I1CDN package DFN1006,IEC 61000-4-2 Air discharge: ±30kV Contact discharge: |
|
TVS Diode |
Leiditech |
For wireless modules:LC0502D6 package SOT-26IEC61000-4-2 (ESD) Air discharge: ±30kV Contact discharge: |
|
TVS Diode |
Leiditech |
For LAN port:SLVU2.8-4package SOP8IEC 61000-4-2(ESD) Air discharge: ±3OkV Contact discharge |
|
TVS Diode |
Leiditech |
For power inlet:SMBT15CA package SMB,15V VRWM ,24A IPP,Ppp 600W |
|
MOSFET |
Leiditech |
For camera interface:LMTL5N10,NMOSpackage SOT-23,VDS=100V,ID=5A,RDS(ON)<125mΩ@VGS=10V |
|
TVS Diode |
Leiditech |
For RS232 interface :SMC12package SOT-23IEC 61000-4-2(ESD)±30kV,12V VRWM, 15A IPP |
|
TSS semiconductor discharge tube |
Leiditech |
For image sensor interface:P0080TApackage SMA，VPP(10/700)2KV |
Leiditech can provide various interface electrostatic lightning protection solutions to solve electromagnetic compatibility problems for customers, and provide more protection solutions，Please search for the mini program "EMC Electromagnetic Compatibility Community" on WeChat. Welcome to contact Hu Gong 18016225001.
