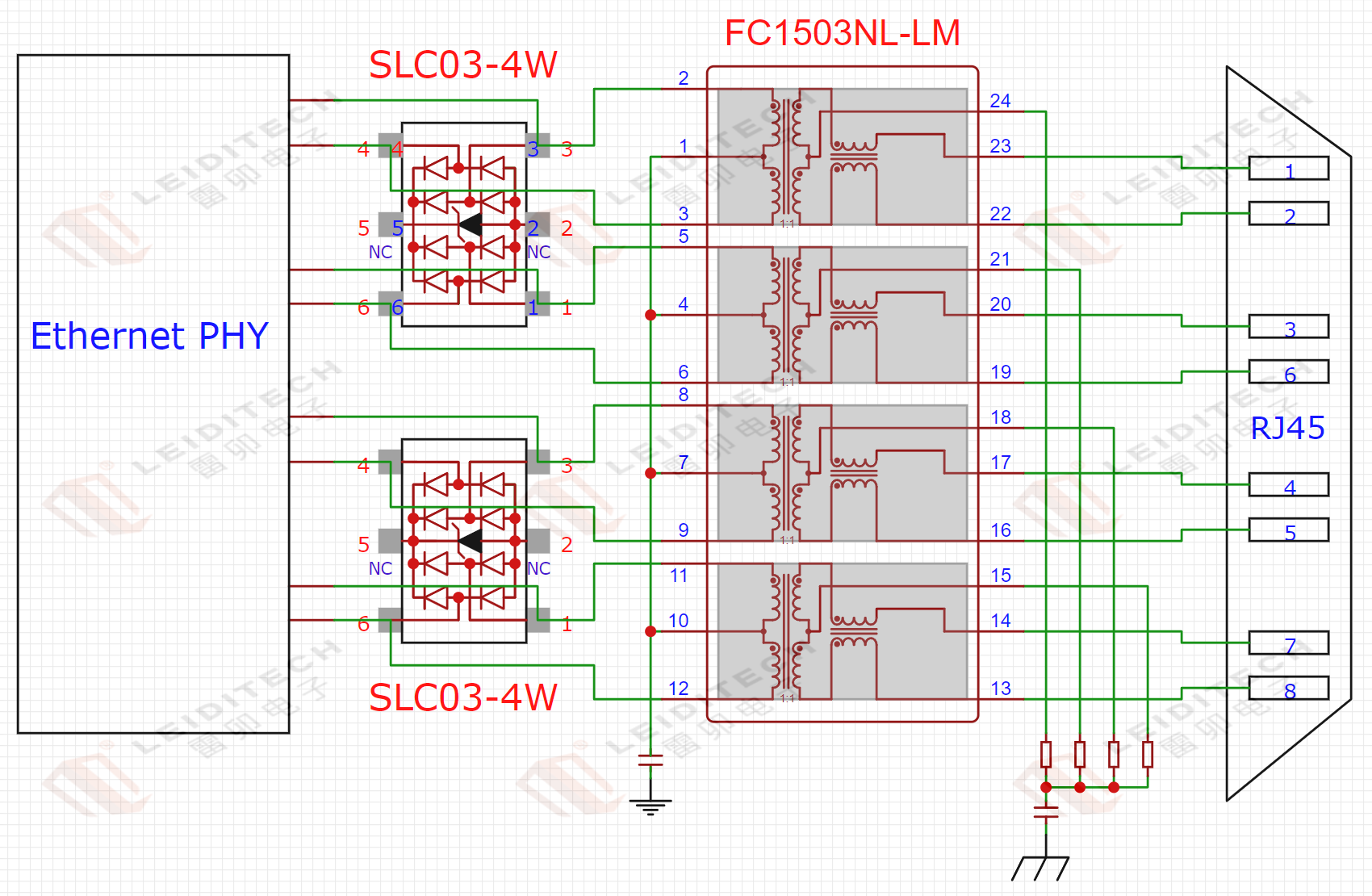

2.5.2 Integrated protection scheme for 3.3V low residual voltage and high current in gigabit network
Advantages of the Solution: ESD protection features: Gigabit Ethernet port ESD protection using multiple integrated components with high ESD protection, small size, low capacitance. Ensures signal integrity, meeting the following standards: IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) 32A (8/20µs)

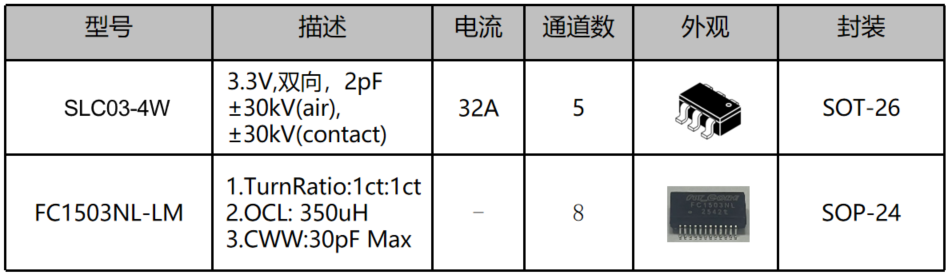

Network transformer features: compact, low height, inductance factor 1:1, open inductance: 350uH; insertion loss: -1.1 dB Max, DC resistance 1.3Ω.
