4.11 IP Camera Table
Leiditech recommends IP camera monitoring and protection devices and solutions

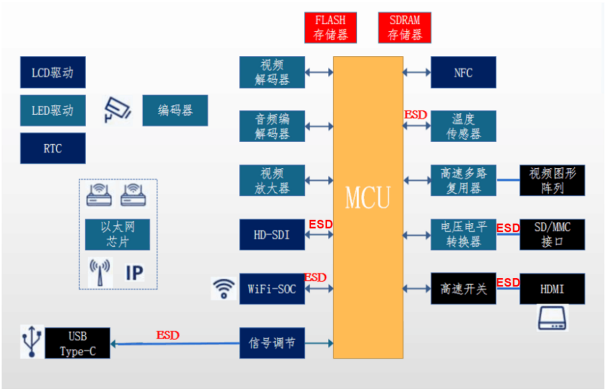

The IP camera monitoring system is an application system that integrates technologies such as network communication, video decoding, audio decoding, video amplifier, temperature sensor, etc. It is a standardized digital system centered on intelligent video monitoring management. All equipment from the camera to the monitoring center is connected through a thousand IP addresses, equipped with functions such as Type 1 interface, three high-definition display signal interfaces, one high-definition multimedia interface, and two forms of storage cards, And it is widely used in civil buildings such as office buildings, shopping malls, schools, medical facilities, villas, etc.
With the rapid development of the The Internet Age, IP monitoring is replacing traditional analog monitoring as the mainstream. High definition and intelligent visual management applications based on IP technology will be the main theme of video monitoring development. IP system will occupy Absolute advantage in the future monitoring market. The IPization of products has become an inevitable trend, and this technological innovation has greatly expanded the video surveillance market.
Leiditech can provide various interface electrostatic lightning protection solutions to solve electromagnetic compatibility problems for customers, and provide more protection solutions，Please search for the mini program "EMC Electromagnetic Compatibility Community" on WeChat. Welcome to contact Hu Gong 18016225001.
|
Category |
Brand |
Product and product overview |
|
ESD Diode |
Leiditech |
For HD-SDI：ULC0511CDN30,package DFN1006,–IEC 61000-4-2 (ESD) ±30kV，VRWM=5V ，IPP=4.5A , CJ =0.22PF. |
|
ESD Diode |
Leiditech |
For WIFI：ULC0321S, package DFN0603,ESD ±25kV (air),±20kV (contact)， VRWM=3.3V，Ipp=5A ,CJ =0.2PF. |
|
ESD Diode |
Leiditech |
For TYPE-C interface：ULC0524P,package DFN2510P10,ESD ±25kV (air),±20kV (contact),VRWM=5V ，Ipp =5A ,CJ=0.8PF |
|
ESD Diode |
Leiditech |
For HDMI interface：ULC0524P,package DFN2510P10,ESD ±25kV (air),±20kV (contact),VRWM=5V ，Ipp =5A ,CJ =0.8PF. |
|
ESD Diode |
Leiditech |
For HDMI interface：LDWI21T-900Y: common mode choke，package 0805， 90ohm. |
|
ESD Diode |
Leiditech |
For SD interface： ESD0506M8 ,package TSSOP-8,ESD ±15kV (air),±8kV (contact),VRWM=5V ，Ipp =2A ,CJ =8PF. |
|
ESD Diode |
Leiditech |
For temperature sensor I2C interface：ESDA33CP30，package DFN1006,–IEC 61000-4-2 (ESD) ±30kV，VRWM=3.3V ，IPP=8A , CJ =12PF |
|
TVS Diode |
Leiditech |
For DCDC chip：SMBJ15CA package DO-214AA，VR=15V; Ppp=600W, IPP=24.6A |
