2.5Karaoke machine
Leiditech recommends Karaoke machine protection devices and solutions

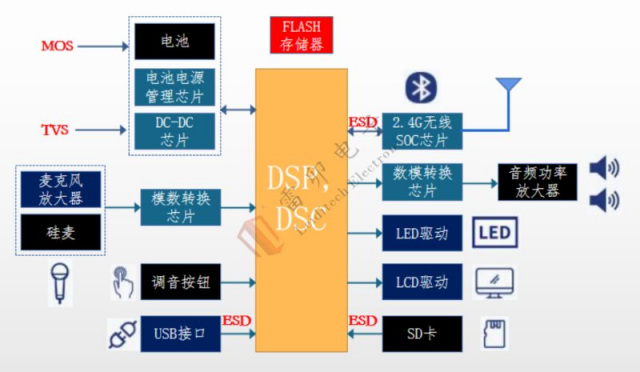

The Karaoke machine motherboard mainly consists of a microphone, speaker, main control chip, Bluetooth chip, power amplifier chip, etc. It is not just a combination of microphones and Bluetooth speakers, but also supports volume adjustment, one click silencing, noise reduction, sound effect adjustment (high, low, mix, accompaniment), switching up and down tracks, USB expansion, wireless Bluetooth microphone, integrated microphone sound, and more.
According to the global trend of the intelligent industry and the trend of consumption and manufacturing upgrading, as a karaoke product that can be improvised and shared anytime, anywhere, Kgebao has rapidly formed a huge market with the popularity of internet karaoke software.
Leiditech recommends products for Karaoke machine：
|
Category |
Brand |
Product and product overview |
|
ESD Diode |
Leiditech |
For DC power supply：SD2401P4-3 package DFN2020-3, –IEC 61000-4-2 (ESD) ±30kV，24V VRWM，110A IPP |
|
ESD Diode |
Leiditech |
For USB interface ：SR05 package SOT-143 IEC 61000-4-2 (ESD) ±20kV,5V VRWM，3A IPP |
|
ESD Diode |
Leiditech |
For SD card：LC0504F package SOT-363 IEC 61000-4-2 (ESD) Air discharge: ±15kV Contact discharge: ±8kV,5V VRWM，5A IPP |
|
ESD Diode |
Leiditech |
For 2.4G wireless SOC chip：ULC0511CDN package DFN1006, –IEC 61000-4-2 (ESD) ±30kV，5V VRWM，4.5A IPP |
|
MOS tube |
Leiditech |
LM4953 Ptype，package SOP-8，30V VDS,±20V VGS,-21A IDM LM8205 Ntype，package SOT23-6，20V VDS,±20V VGS,24A IDM
|
