Leiditech recommends entry-level thermostat protection devices and solutions
Thermostat, a temperature sensing device that automatically opens or closes under normal operation to maintain the controlled part within a certain temperature range. Its operating temperature is only fixed or adjustable. The thermostat mainly measures the temperature of the fluid flowing out and into the pipeline and the volume flow of the fluid through the metering MCU equipped with the Heat meter. The user can adjust the settings through the keyboard or from other Internet connected devices (such as laptops or smart phones) and display them on the touch screen. A thermostat can adjust the temperature of a system, room, or building. Modern systems can also perform calculations, be programmable, learn from user habits, and react to their surrounding environment.
Smart thermostat has growth potential. The advanced characteristics of Smart thermostat, the growing demand for energy-saving devices and the government's energy-saving initiatives have provided impetus for the use of thermostats worldwide. In 2019, the application of this technology accounted for 46.72% of the sales share, and in recent years, it has developed rapidly. A thermostat is a device that directly or indirectly controls one or more heat and cold sources to maintain the required temperature. To achieve this function, a thermostat must have a sensitive element, which is a temperature sensor. It measures temperature changes through the temperature sensor and is then controlled by the main controller to control the heating or cooling module for temperature adjustment.

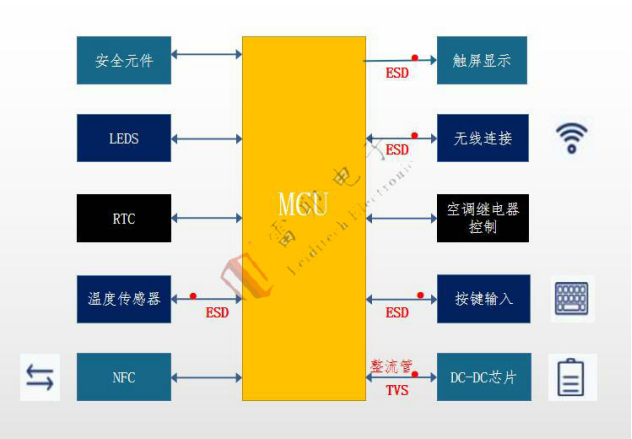

Leiditech recommends products for entry-level thermostats：
|
Category |
Brand |
Product and product overview |
|
ESD Diode |
Leiditech |
Touch screen display：ESDA3.3CW-4 package SOT-353 peak working reverse voltage 3.3V，Leakage current 0.5ua |
|
ESD Diode |
Leiditech |
Connectivity：ULC0511CDN package DFN1006 peak working reverse voltage 5V，Leakage current 0.5ua |
|
ESD Diode |
Leiditech |
key-in：SDA05W5 package SOT-353 peak working reverse voltage 5V，Leakage current 1ua
|
|
ESD Diode |
Leiditech |
For temperature sensors：LC05CI package SOD-323 peak working reverse voltage 5V，Leakage current 1ua |
|
TVS Diode |
Leiditech |
For DCDC chips：SMBJ15CA package DO-214AA peak working reverse voltage 15V，Leakage current0.5ua |
|
rectifier |
Leiditech |
Anti reverse connection: SS36B 60V VRRM 100A IFSM
|
Leiditech can provide various interface electrostatic lightning protection solutions to solve electromagnetic compatibility problems for customers, and provide more protection solutions，Please search for the mini program "EMC Electromagnetic Compatibility Community" on WeChat. Welcome to contact Hu Gong 18016225001.
