Leiditech Recommended Wireless Parking sensor Protection Devices and Scheme

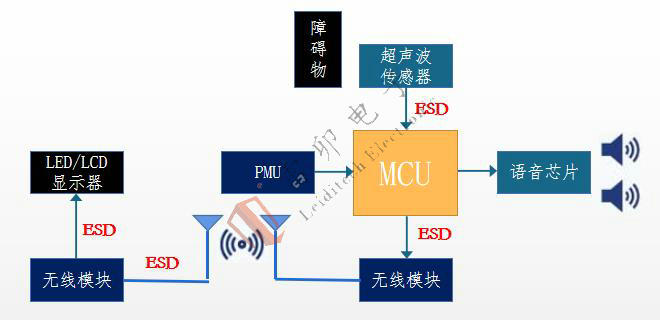

The traditional LED/LCD display Parking sensor product consists of a display and a probe detection host. The probe detection host is responsible for measuring the distance of multiple ultrasonic probes, and then transmits the distance and other data to the display through data lines through algorithms. Through wired transmission, the display needs to be installed in the driver's dashboard, and the probe host needs to be close to the probe, so the wire must be led from the rear of the car to the front, which poses wiring difficulties. If wireless radio frequency communication is used, it can solve this problem very well. Adding a bidirectional RF module to the display and host, which can transmit data effectively and accurately through bidirectional wireless transmission, while also avoiding the trouble of burying cables during loading.
Leiditech recommends products for wireless Parking sensor:
|
Category |
Brand |
Product and product overview |
|
ESD Diode |
Leiditech |
For LED/LCD display：ULC0524P packageDFN2510P10, IEC 61000-4-2 (ESD) Air discharge: ±30kV Contact discharge: ±25kV ,5V VRWM,5A IPP |
|
ESD Diode |
Leiditech |
For wireless modules：LC05CI packageSOD-323,IEC 61000-4-2 (ESD) ±30kV,5V VRWM，18A IPP |
|
ESD Diode |
Leiditech |
For ultrasonic sensors：LC24CI package SOD-323,IEC 61000-4-2 (ESD) ±30kV,24V VRWM，3A IPP
|
|
ESD Diode |
Leiditech |
For power supply：SMDJ24CA package SMC,24V VRWM,77.1A IPP |
Leiditech can provide various interface electrostatic lightning protection solutions to solve electromagnetic compatibility problems for customers, and provide more protection solutions，Please search for the mini program "EMC Electromagnetic Compatibility Community" on WeChat. Welcome to contact Hu Gong 18016225001.
