4.9 Shared Power Supply
Leiditech recommends shared power protection devices and solutions

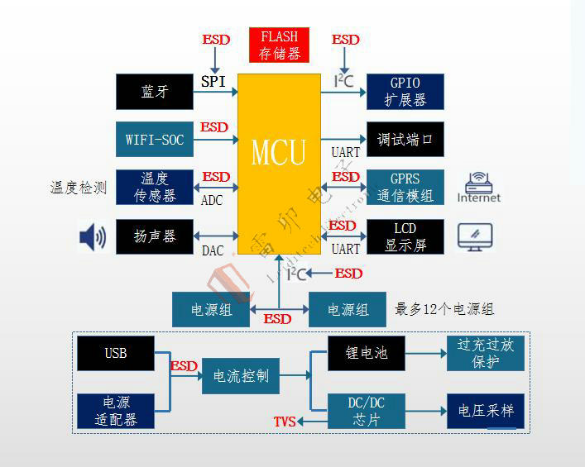

The shared power supply includes an MCU microcontroller inside the cabinet, which can read and store data, issue commands, and other functions; The WIFI module is mainly responsible for receiving signals. The temperature sensor is responsible for detecting whether the temperature of the charging bank in the cabinet is normal, and the LCD display screen can play advertisements. The shared power supply has two power packs, which can accommodate up to 12 power packs.
Shared power banks will achieve rapid expansion in the next three years, but their profit model and user experience will be key factors in the competition in the shared power bank market. Pinion batteries have become a commonly used technology for portable applications using rechargeable batteries due to their advantages such as high energy density, high voltage, low self discharge rate, and no memory effect. To achieve safe work, temperature monitoring of shared power sources is particularly important.
Leiditech recommends products for shared power supply:
|
Category |
Brand |
Product and product overview |
|
ESD Diode |
Leiditech |
For WIFI-SOC：ULC0511CDN package DFN1006, –IEC 61000-4-2 (ESD) ±30kV，5V VRWM，4.5A IPP |
|
ESD Diode |
Leiditech |
For USB：SR05 package SOT-143 IEC 61000-4-2 (ESD) ±20kV,5V VRWM，3A IPP
|
|
ESD Diode |
Leiditech |
For power supply：SD05C package SOD-323, –IEC 61000-4-2 (ESD) ±30kV，5V VRWM，25A IPP |
|
ESD Diode |
Leiditech |
For I2C：SMC05 package SOT-23 IEC 61000-4-2 (ESD) ±30kV,5V VRWM，18A IPP |
|
ESD Diode |
Leiditech |
For temperature sensors：LC05CI package SOD-323,IEC 61000-4-2 (ESD) ±30kV,5V VRWM，18A IPP ULC0511CDN package DFN1006, –IEC 61000-4-2 (ESD) ±30kV，5V VRWM，4.5A IPP |
|
ESD Diode |
Leiditech |
For GPS communication module：ULC0511CDN package DFN1006, –IEC 61000-4-2 (ESD) ±30kV，5V VRWM，4.5A IPP |
|
ESD Diode |
Leiditech |
LED display screen：ULC0524P package DFN2510P10, IEC 61000-4-2 (ESD) Air discharge: ±30kV Contact discharge: ±25kV ,5V VRWM,5A IPP
|
|
ESD Diode |
Leiditech |
For DCDC chip：SD05C package SOD-323, –IEC 61000-4-2 (ESD) ±30kV，5V VRWM，25A IPP |
|
ESD Diode |
Leiditech |
For SPI： SMC05 package SOT-23 IEC 61000-4-2 (ESD) ±30kV,5V VRWM，18A IPP |
Leiditech can provide various interface electrostatic lightning protection solutions to solve electromagnetic compatibility problems for customers, and provide more protection solutions，Please search for the mini program "EMC Electromagnetic Compatibility Community" on WeChat. Welcome to contact Hu Gong 18016225001.
