2.11 Smart Garbage Bin
Leiditech recommends intelligent garbage bin protection devices and solutions

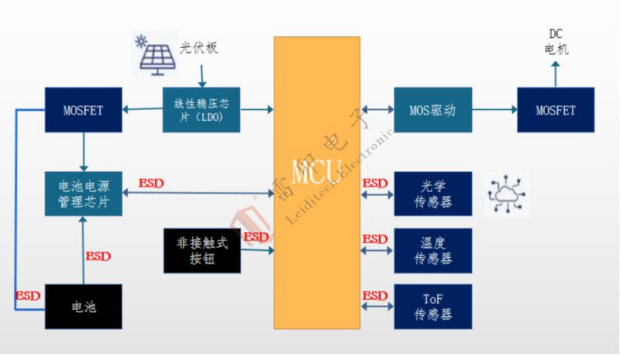

The flight time sensor of the intelligent sensing garbage bin detects that an object is approaching the sensing area, and the lid will automatically open. After the object or hand opens the sensing area high for a few seconds, the lid will automatically close. It can also detect the temperature, humidity, lighting, etc. of the garbage bin, and does not require external power supply. It is powered by photovoltaic (PV) panels and batteries, with low power consumption. The exquisite streamlined appearance induction flip design combined with a red microcontroller is flexible and convenient, and can easily dispose of garbage without the need for manual or foot stepping. In addition, the Narrowband Internet of Things (NB-10T) module allows for the transmission of maintenance messages when the trash can is full or in dangerous situations. Convenient and hygienic, with reliable performance, effectively preventing contact infections.
The original smart dustbin is considered from the Recycling link, so it has the priority of naming, which leads the manufacturing side of the whole market. A small intelligent recycling bin may not seem impressive, but for existing sanitation equipment manufacturers, the test is very big, and it is a barrier that the vast majority of existing sanitation equipment manufacturers find difficult to overcome.
Leiditech recommends products for smart trash cans：
|
Class |
Brand |
Product and product overview |
|
ESD Diode |
Leiditech |
For power inlet：14D561KJ 350V VAC,460V VDC,504-616VVaristor voltage ，6000A Maximum peak current |
|
ESD Diode |
Leiditech |
For sensor：LC05CI package SOD-323,IEC 61000-4-2 (ESD) ±30kV,5V VRWM，18A IPP |
|
ESD Diode |
Leiditech |
For button：SDO5C package SOD-323 IEC 61000-4-2 (ESD) ±30kV, 5V VRWM，25A IPP |
|
ESD Diode |
Leiditech |
For battery port：SD12Cpackage SOD-323 IEC 61000-4-2 (ESD) ±30kV, 12V VRWM，15A IPP |
Leiditech can provide various interface electrostatic lightning protection solutions to solve electromagnetic compatibility problems for customers, and provide more protection solutions，Please search for the mini program "EMC Electromagnetic Compatibility Community" on WeChat. Welcome to contact Hu Gong 18016225001.
