signal protection

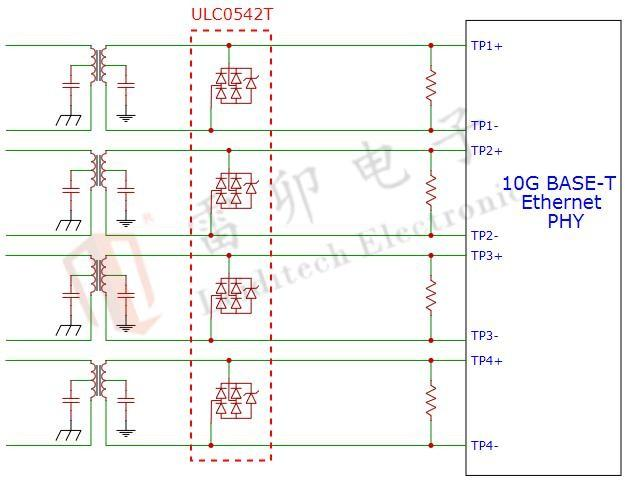

2.1 Static protection scheme for 10G interface of 10G network
Advantages of the solution: It is used for electrostatic protection of indoor network ports. This solution uses ULC0542T 4 differential modes to protect 8 high-speed data lines.

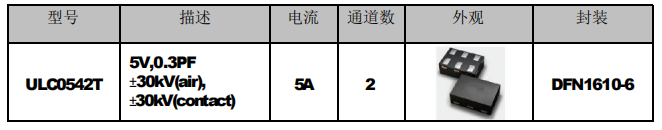

Ultra Small Package Integrated Device Protection, DFN1610-6 . Capacitance 0.3PF , meet IEC61000-4-2 , class 4 , contact
Discharge 30kV , air discharge 30kV , can pass the eye diagram test.
