power protection

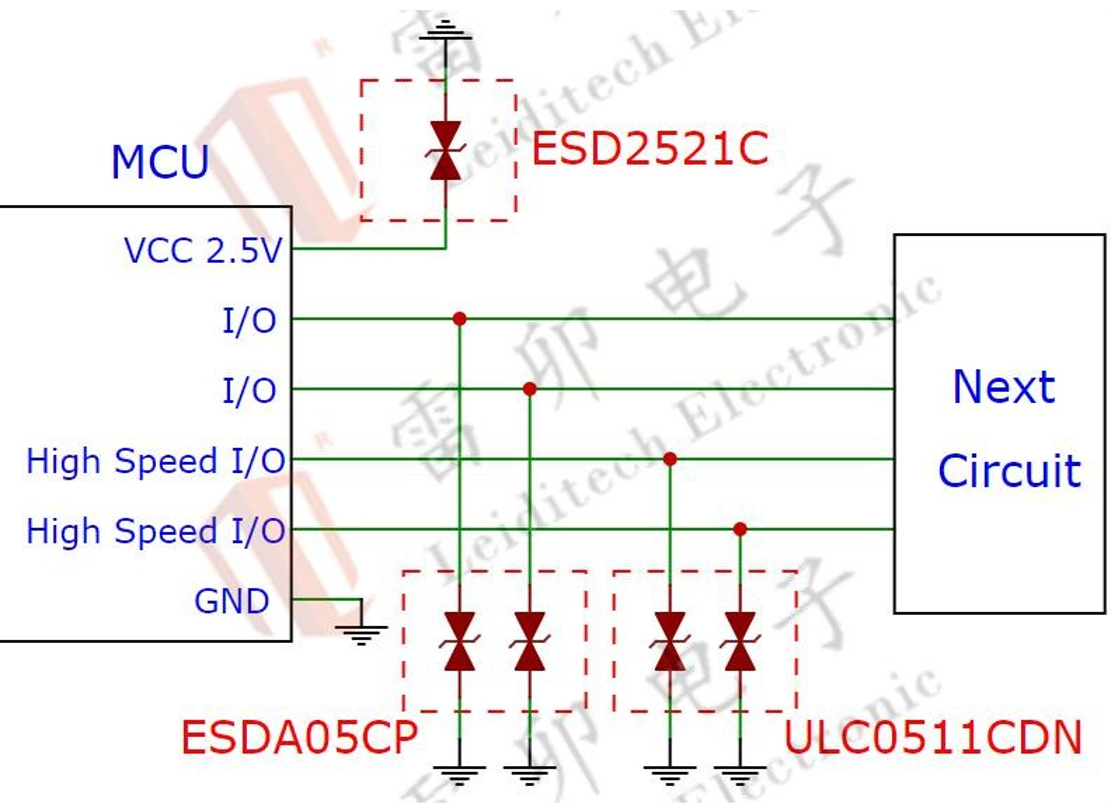

1.1 Static protection scheme for 2.5V Vbus power supply

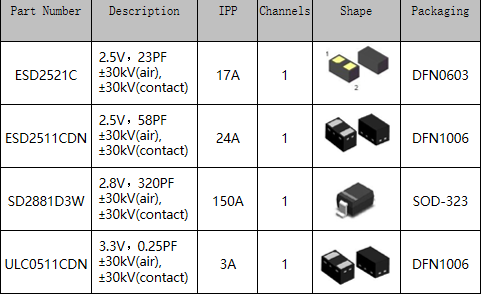

Solution Advantages: This solution is designed to meet the ESD surge protection requirements for IC VCC 2.5V. Based on the power supply environment, suitable ESD components are selected to protect the current. For high-speed transmission interfaces, the ultra-low capacitance ULC2511CDN is chosen to ensure signal integrity and pass ESD tests. It meets the IEC61000-4-2 standard, Class 4, withstanding 30KV contact discharge and 30KV air discharge.
