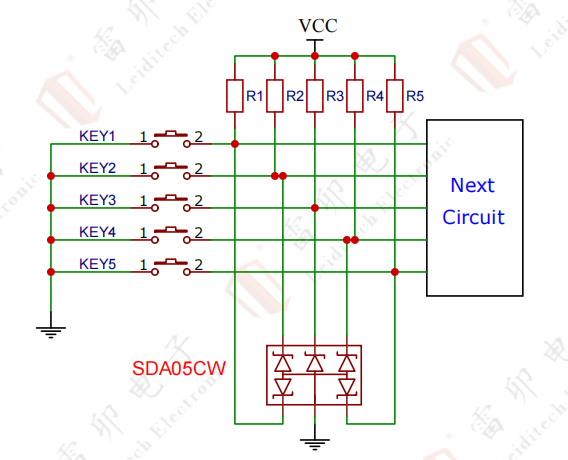

15.2 Static protection scheme for keyboard button integrated components

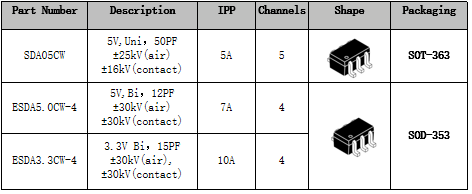

Solution Advantages: Common low-capacitance integrated components can be used for ESD protection, meeting the IEC61000-4-2 standard, Level 4, with contact discharge 8kV and air discharge 15kV.
