1.22 Tire pressure monitoring system completed
Leiditech Recommended protective devices and solutions for automotive tire pressure monitoring systems

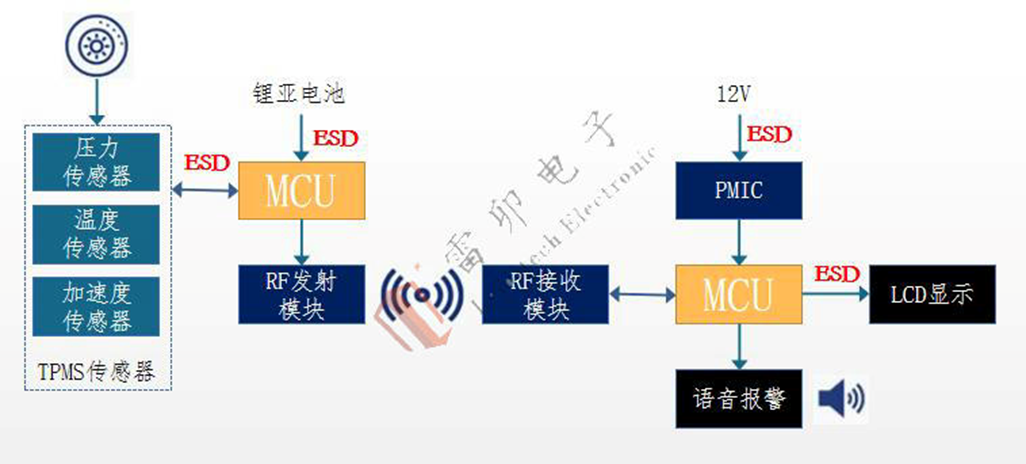

The Tire Pressure Monitoring System (TPMS) monitors the pressure and temperature of all tires in real-time through tire pressure monitoring sensors. Use the wireless transmitter to send the pressure and temperature information from the inside of the tire to the central receiver module, and then display the pressure and temperature data of each tire, and send an alarm in time for abnormal conditions such as low pressure, high pressure, and rapid air leakage.
The development trend of TPMS sensor module technology is to develop the transmission module towards highly integrated, single, and wireless passivity. With the demand for high integration and high reliability of ICs in the TPMS product market, there are now intelligent sensor modules that integrate sensors of various physical quantities required for testing with MCUs. In the next few years, a module that includes a three in one RF emission chip and a four in one module that utilizes the mechanical energy of motion to self power will be developed. At that time, the tire pressure monitoring transmitter will only consist of one module and one antenna, The customer's secondary design will become very simple.
Leiditech recommends products for tire pressure monitoring systems:
|
Category |
Brand |
Product and product overview |
|
ESD Diode |
Leiditech |
sensor：LC24CI package SOD-323,IEC 61000-4-2 (ESD) ±30kV,24V VRWM，3A IPP |
|
ESD Diode |
Leiditech |
For batteries：SMDA05CCN package DFN1006, –IEC 61000-4-2 (ESD) ±30kV，5V VRWM，50A IPP |
|
ESD Diode |
Leiditech |
For CAN：SMC24 package SOT-23 IEC 61000-4-2 (ESD) ±30kV,24V VRWM，9A IPP |
Leiditech can provide various interface electrostatic lightning protection solutions to solve electromagnetic compatibility problems for customers, and provide more protection solutions，Please search for the mini program "EMC Electromagnetic Compatibility Community" on WeChat. Welcome to contact Hu Gong 18016225001.
