signal protection
1.1.2 USB2.0 electrostatic protection scheme
Advantages of the solution: USB2.0 provides a transmission speed of 500Mbps . This solution uses a single device for protection , saving space.

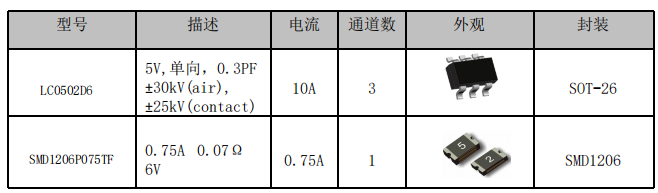

Ensure signal integrity, LC0502D6 pin 1 and pin 6 are connected, meet IEC61000-4-2 , level 4 ,
Contact discharge 25kV , air discharge 30kV , to ensure all kinds of electrical interference for industrial customers. If there is overcurrent to Vbus
Requirements, need to be equipped with PTC protection.
