1.19 Ventilation and heating of car seats
Ventilation and heating of car seats
1、 Overview of the plan:
Seat ventilation is a "heat protection device" for car seat air conditioning. Although automatic air conditioning can maintain a constant temperature inside the car in summer, due to the close contact between the passenger's body and seat, the air in contact is not ventilated, which is not conducive to sweat elimination and can make people feel uncomfortable. The unique ventilation and circulation system of seat ventilation and air conditioning continuously flows fresh air out of the small holes on the seat cushion and backrest, preventing sweat accumulation on the buttocks and back, providing a comfortable riding environment, effectively improving the air circulation environment between the human body and the seat surface. Even if sitting for a long time, the contact surface between the body and the seat will still be dry and comfortable.

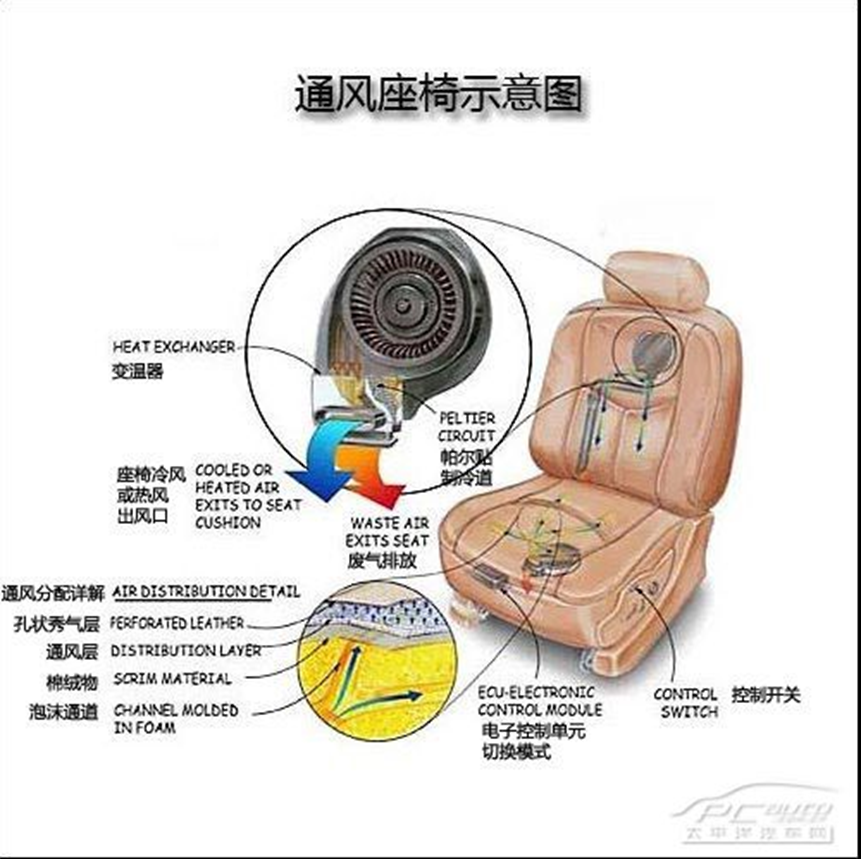

A total of nine axial flow fans in the seat ventilation are integrated into the high-quality foam padding in the seat: four in the backrest and five in the seat. The fan draws fresh cabin air into the seat and guides it through the breathable middle layer, evenly distributing the air throughout the entire seat area. The special perforations in the interior allow air to pass through the leather, keeping sweating at a minimum level. Different models can use a control device on the center console or the seat itself to control the three speed fan accordingly. The highest fan speed can immediately cool the seats heated by direct sunlight, ensuring comfort even during summer.

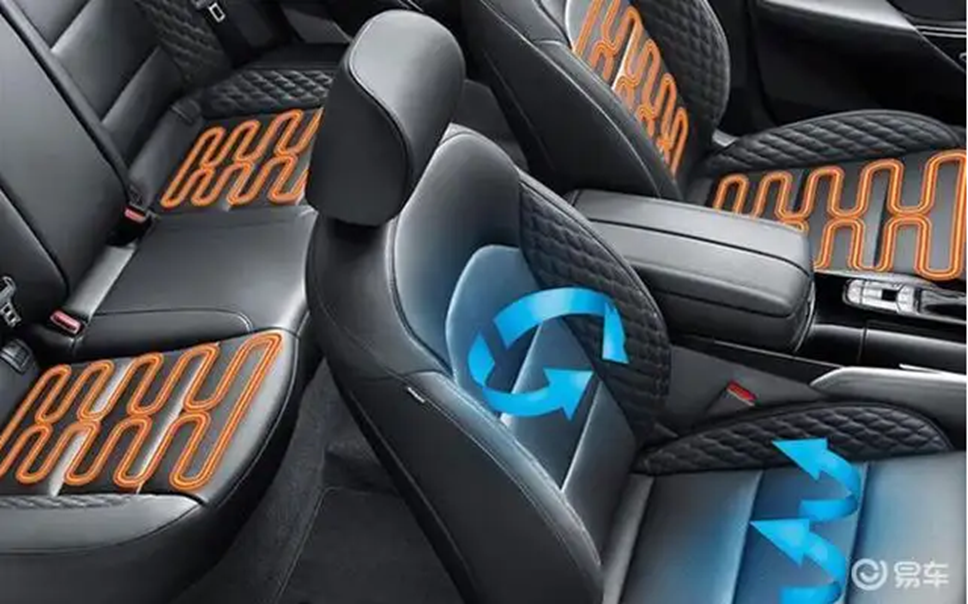

Seat heating, on the other hand, utilizes electric heating wires inside the seat to heat the interior of the seat and transmit heat to the occupants through heat transfer, improving the discomfort caused by the seat being too cold after prolonged parking in winter.
The basic structure of a seat heater is: the lower layer is a layer of non-woven fabric, and the heating wires are arranged on the non-woven fabric. The heating wires are fixed on the non-woven fabric with fixed tape, and the knitted fabric is covered on the fixed tape. The shape similar to the seat heating point is sewn with knitted thread and sewn inside the seat cover. In order to improve the comfort of passengers in the car and control the seat heating temperature within a certain range, two temperature controllers are installed inside the seat heating pad: (1) 50 ± 5 ℃ disconnected and 30 ± 5 ℃ connected; (2) Disconnect at 43 ± 5 ℃ and connect at 23 ± 5 ℃. The backrest heater is connected to the power supply of the seat cushion heater through a connector, and the power supply of the seat cushion heater is connected to the instrument panel wiring harness through the connector. It is then connected to the battery power supply through the seat heating switch, fuse, and ignition switch.
2、 The difference between seat heating and ventilation:
Seat heating and seat ventilation are two different functions. A heating device has been added to the seat for heating. Especially in winter, when we sit in a car with heated seats on, we can feel the warmth and comfort of the seats, without feeling chilly. Seat ventilation is a unique ventilation and circulation device that can replace fresh air and prevent sweating during sitting, affecting comfort.
In general, most people prefer the function of seat heating. Because if the car is equipped with cold air conditioning in the summer, it doesn't actually cause a lot of sweating, so seat ventilation can only serve as an auxiliary function, but it won't play a major role.
But the heating of the seats is different. In winter, although the air conditioning heating function is turned on, the seats cannot suddenly become warm, and it is still cold to sit on. The seat may only change after waiting for a period of time. But if the seat heating function is turned on, the seat can be quickly heated.
However, the seat heating function is generally only available on high-end models, such as high-end cars such as Audi and BMW. If we purchase a regular car, it may not have this function. However, it doesn't matter much. It can indeed increase our pleasant ride experience to some extent, but we can also make up for it with other accessories. For example, in winter, we can put plush cushions on the seats, so even if we just sit down, it won't be as cold as leather.
3、 Recommended products for ventilation and heating of car seats:
|
Brand or manufacturer |
Product and product overview |
|
Kuaimete |
Kuaimete Automotive Boutique (Shenzhen) Co., Ltd. is a professional manufacturer of research and development, production, and sales of automotive products. In 1996, it established a factory in Shenzhen with a registered capital of 4.4 million US dollars, more than 430 employees, covering an area of nearly 30000 square meters, and an annual sales revenue of approximately 235 million yuan.。 |
|
3r |
Jiangmen Hongben Auto Accessories Industrial Co., Ltd. is a manufacturer of car rear-view mirrors and auto accessories integrating R&D, design, production and sales. Founded in 2002, the company is located in Jiangmen City, Guangdong Province in the Pearl River Delta, bordering the South China Sea, adjacent to Hong Kong and Macao, and has convenient land and water transportation. Our company has selected production equipment and testing instruments, which can provide general lenses and anti glare chrome plated lenses according to different customer needs. We can produce rearview mirrors with different radians and shapes. In 2014, the company developed multiple automotive products such as car phone racks, car storage bins, and car trash cans. I firmly believe that technology and innovation are the inexhaustible driving force for the company's development.Our company has always advocated the concept of "people-oriented, pragmatic, and pioneering", providing employees with a fair and reasonable competitive platform. The company has implemented a talent cultivation mechanism that combines internal training, external training, and promotion. Based on the guiding ideology of aligning employees' personal growth and development with the company's development needs, it has cultivated a group of excellent talent teams. It is these loyal and dedicated individuals who have achieved the glory of Hongben today and will continue to write even more magnificent chapters for Hongben. The company has a beautiful environment, an air conditioning workshop, and stable orders. |
|
Cashine
|
Cashine brand, also known as Cashine in English, was established in 2009. The brand's main products include reversing mirrors, rearview mirrors, small round mirrors, small round mirrors, small round mirrors, personalized car stickers, car stickers customization, reflectors, new hand road stickers, car stickers customization, body stickers, color stickers, reflective characters, car clocks, personalized stickers, night light clocks, door stickers, car stickers, interior decorations, and other fields. |
|
Indre |
The Indre brand was born in Guangdong Province. Indre was established in the Torch Development Zone in 2005 and is a brand under Guangdong Indre Industrial Development Co., Ltd. It focuses on the research and development, production, and sales of high-end car refrigerators. The Indre brand originates from Europe and is committed to making mobile life better. After nearly 20 years of focused development, it has rapidly grown into an expert in the automotive refrigerator industry and is widely used in various fields such as automobiles, RVs, trucks, camping, etc. It is exported to 66 countries in Europe and America. |
|
Zhongsheng |
Guangzhou Zhongsheng Technology Co., Ltd. was established on October 24, 2019, with its registered address at No. 106 Fengze East Road, Nansha District, Guangzhou. The legal representative is Fu Yun. The business scope includes computer technology transfer services; Information system integration services; Information technology consulting services; Computer technology development and technical services; Research and development of computer hardware; Technical services (excluding license approval projects); Wholesale of computer spare parts; Retail of computer spare parts; Wholesale of communication equipment and supporting equipment; Wholesale of communication terminal equipment; Retail of communication equipment; Rental of computers and communication equipment; Communication facility installation engineering services; Maintenance services for communication signal equipment; E-commerce information consultation; Wholesale of textiles, knitwear and raw materials; Retail of textiles and knitwear; Department store retail (excluding food retail); Wholesale of leather and leather products; Wholesale of toys; Toy retail; Toy design services; Sales of packaging materials; Wholesale of handicrafts (excluding ivory and its products); Wholesale of electronic products; Retail of electronic products; Comprehensive retail of daily miscellaneous goods; Professional repair of other communication equipment; Computer wholesale; Computer retail; Computer room design services; Development of printing technology; Import and export of goods (excluding exclusively operated and controlled goods); Technology import and export; Printing of books and newspapers; Printing of other printed materials except publications and packaging and decoration printed materials. |
|
BorgWarner |
BorgWarner entered China in 1993, deeply rooted in the Chinese market, and its business has developed rapidly. Facing the rapid development of China's automobile industry and major innovation and opportunities of new energy vehicles, BorgWarner has ushered in a more open market. In China, BorgWarner has 18 manufacturing and technical facilities in 9 regions (Shanghai, Ningbo, Taicang, Suzhou, Beijing, Tianjin, Dalian, Wuhan, Yantai). The technology research and development center is located in Shanghai, and the rest includes 17 factories (13 sole proprietorships and 4 joint ventures). In 2020, the consolidated sales revenue in China was 15.9 billion RMB. Currently, it has achieved comprehensive coverage of six major business sectors in China. BorgWarner China has won the title of "Top Employer in China" for three consecutive years. |
|
Weiwei |
Guangzhou Weiwei Automotive Boutique Co., Ltd. is a well-known brand enterprise specializing in the production of car seat covers. Since its establishment in 1998, it has been the first in the industry to propose the humanistic concept of "car seat covers are the fashion of cars", and has established a distinct brand image in the industry - the feeling of "being at home in a car"; The company currently has 1000 employees and three directly affiliated factories. The company has established sales and service networks in more than 80 large and medium-sized cities across the country, with over 15000 specialized retail points. Its performance and reputation rank first in the industry! From 2005 to 2013, it was awarded the title of "Contract abiding and Credit abiding Enterprise" by the Guangzhou Administration for Industry and Commerce for 9 consecutive years; In 2005, it was rated as one of the "Top Ten Brands" in the Chinese automotive supplies industry; The main products have obtained the Professional certification of the State Bureau of Technical Supervision (certification number: 130316); In 2004, I was awarded the title of "My Favorite Car Seat Cover" by the organizing committee of the "My Favorite Car Products" selection. In 2003, I was awarded the "Creative Modification Award (Interior Modification)" by the Automobile Sales Industry Association and the Automobile Parts Industry Association; In 2002, it was awarded the title of "Consumer's Favorite Auto Products" by Yangcheng Evening News, Auto Magazine and Guangdong TV Station. |
|
Jiayitian |
Dongguan Yizhan Electronics Co., Ltd. is a national high-tech enterprise dedicated to providing automobile informatization, intelligence and intelligent travel solutions, and one of the first enterprises in China to engage in vehicle navigation, intelligent vehicle machines and Vehicle-to-everything industry. It is also one of the drafting units of China's "Technical Specifications for Vehicle Navigation AV System" standard. Yizhan Electronics is headquartered in Yuquan Industrial Zone, Huangdong, Fenggang Town, Dongguan City, the famous manufacturing city. The company has its own property rights and covers an area of about 36000 square meters of modern automotive electronics industrial park; There are currently over 460 core employees; 96 R&D management professionals; The company has 10 finished product production lines, 5 high-speed automatic SMT machine production lines, 5 manual plug-in lines, and an independent plastic and hardware mold processing cooperation factory, with an annual production capacity of over 1 million automotive electronic products and parts. At present, the company has established scientific research industry alliances with well-known universities at home and abroad, such as Wuhan University of Technology and Shenzhen University. The company's main front-end customers include domestic car manufacturers such as Changchun FAW Hongqi, Dongfeng, Huachen Xinyuan, Weichai Automobile, Guoji Zhijun (new energy), Hengrun Automobile (new energy), etc; Previously installed overseas: Russia NAMI, Iran IKCO, etc. The domestic sales brands in the aftermarket include high-definition intelligent voice navigation products mainly from three major brands: "Jiayitian", "Laisheng", and "Yizhan", as well as 360 panoramic navigation series products; There are also domestic and overseas OEM order customers. |
|
Cassis |
Guangzhou Cassis Electronic Technology Co., Ltd. was founded on December 4, 2015. Its business address is located in Room 517-2, Floor 1-7, Building 2, No. 715, Guangshan First Road, Tianhe District, Guangzhou (office only) (not for factory use). Its industry is research and experimental development, and its business scope includes: research and development of electronics, communication and automatic control technology; Wholesale of automotive parts; Retail of automotive parts; Wholesale of hardware products; Retail of electronic products; Wholesale of electronic products; Wholesale of electronic components; Retail of electronic components; Wholesale of lighting fixtures and decorative items; Retail trade of goods (excluding licensed and approved goods); Wholesale trade of goods (excluding licensed and approved goods); Manufacturing of automotive parts and accessories (excluding automotive engine manufacturing) (limited to branch operations only); Automotive parts design services. The current business status of Guangzhou Kaseisi Electronic Technology Co., Ltd. is an operating (opening) enterprise. |
