PPTC Resettable Fuses

Information of PPTC
Polymer positive temperature coefficient is referred PPTC. For over-current protector, can palce circuit element. The PPTC element protects the circuit by changing from a low-resistance to a high resistance state in response to an over current.

The selection tips of PPTC/FUSE

1. Determine the following circuit operating parameters:

Normal operating current – I_HOLD

Maximum circuit voltage – V_MAX

Maximum interrupt current – I_MAX

Ambient operating temperature

2. Select the suitable package SMD or DIP.

3. Compare the PTC data sheet ratings for V_MAX and I_MAX to ensure that the circuit parameters do not exceed these ratings.

4. Verify that the ambient operating temperature within close proximity to the device is within its normal operating range. Thermally derate IHOLD and IMAX as necessary.

Part Number	Ih(A) All 0,。5 0.02 0.03 0.04 0.05 0.06 0.08 0.09 0.1 0.11 0.12 0.14 0.145 0.15 0.16 0.17 0.18 0.2 0.25 0.3 0.35 0.4 0.5 0.55 0.6 0.65 0.75 0.8 0.9 1 1.1 1.2 1.25 1.35 1.5 1.6 1.75 1.85 2 2.5 2.6 3 3.75 4 5 6 7 8 9 10 11 12 13 14 Filter Reset	Vmax(Vdc) All 6 8 9 10 12 13.2 15 16 24 30 33 48 60 72 130 250 600 Filter Reset	Imax(A) All 1 3 5 7 10 20 40 50 100 101 Filter Reset	Trip current(A) All 0.15 0.2 0.25 0.3 0.5 0.7 0.75 0.85 1 1.25 1.5 1.95 2 2.2 2.5 3 3.25 3.7 3.75 4 4.5 5 5.5 6 6.75 7.5 8 9 9.25 10 12 12.5 15 18 18.75 20 21 24 25 27 30 33 36 39 40 Filter Reset	Trip time(s) All 0.02 0.08 0.1 0.15 0.2 0.3 0.4 0.5 0.6 0.8 1 1.2 1.5 2 2.3 2.4 2.5 3 3.5 4 4.5 4.8 5 5.2 5.5 5.8 6 6.3 7.5 8 9 10 11 12 12.6 12.7 14.5 15 16 18 18.8 20 24 25 30 40 50 Filter Reset	Rmax(Ω) All 0.007 0.008 0.009 0.011 0.012 0.013 0.015 0.02 0.021 0.025 0.035 0.04 0.045 0.048 0.05 0.055 0.06 0.07 0.075 0.08 0.085 0.09 0.1 0.11 0.12 0.13 0.135 0.14 0.15 0.16 0.165 0.17 0.18 0.19 0.2 0.21 0.22 0.23 0.25 0.27 0.3 0.32 0.33 0.345 0.36 0.37 0.385 0.4 0.41 0.42 0.45 0.5 0.6 0.65 0.7 0.75 0.79 0.8 0.85 0.88 0.9 1 1.2 1.3 1.38 1.4 1.6 1.95 2 2.2 2.3 2.5 2.84 3 3.2 3.5 4 4.8 5 5.21 6 6.5 7 7.5 8 9 10 11 12 14 15 16 20 22 35 45 50 60 65 120 160 Filter Reset	Rmin(Ω) All 0.003 0.004 0.005 0.006 0.008 0.01 0.012 0.014 0.015 0.018 0.02 0.03 0.035 0.04 0.05 0.055 0.06 0.065 0.07 0.08 0.09 0.1 0.12 0.14 0.15 0.18 0.2 0.25 0.3 0.31 0.35 0.4 0.45 0.5 0.55 0.6 0.65 0.75 0.76 0.8 0.9 1 1.45 1.5 1.6 1.9 2 2.5 2.8 3 3.5 3.6 4 4.1 5 6 7.3 10 12 20 25 30 60 80 Filter Reset	Pdtyp(W) All - 0.075 0.26 0.3 0.38 0.4 0.41 0.45 0.48 0.49 0.5 0.56 0.6 0.7 0.72 0.77 0.8 0.81 0.83 0.88 0.9 0.92 0.94 0.99 1 1.1 1.2 1.21 1.4 1.5 1.7 1.8 1.9 2 2.1 2.2 2.3 2.4 2.5 2.6 2.8 3 3.2 3.3 3.5 3.6 3.7 4 4.2 4.8 Filter Reset	It(A) All 0.045 0.065 0.08 0.09 0.1 0.12 0.15 0.16 0.18 0.2 0.22 0.24 0.25 0.29 0.3 0.32 0.34 0.37 0.4 0.45 0.46 0.5 0.55 0.6 0.65 0.7 0.75 0.8 1 1.2 1.3 1.5 1.6 1.8 1.95 2 2.2 2.4 2.5 2.7 2.8 3 3.2 3.5 3.7 4 4.2 5 5.2 6 7.5 8 10 12 14 16 18 20 22 24 26 28 Filter Reset	Package All 603 0805 1206 1210 1812 2018 2920 DIP SMD1812 Filter Reset
HL30-110	1.1	30	40	5.5	8	0.2	0.07	0.7	2.2	DIP
HL30-120	1.2	30	40	6	8	0.18	0.08	0.8	2.4	DIP
HL30-135	1.35	30	40	6.75	8	0.16	0.07	0.8	2.7	DIP
HL30-160	1.6	30	40	8	8	0.14	0.06	0.9	3.2	DIP
HL30-200	2	30	40	10	11	0.1	0.04	1.2	4	DIP
HL30-250	2.5	30	40	12.5	11	0.08	0.03	1.2	5	DIP
HL30-300	3	30	40	15	11	0.07	0.03	2	6	DIP
HL30-400	4	30	40	20	12.7	0.06	0.01	2.5	8	DIP
HL30-500	5	30	40	25	14.5	0.05	0.01	3	10	DIP
HL30-600	6	30	40	30	16	0.04	0.005	3.5	12	DIP
HL30-800	8	30	40	40	18.8	0.025	0.005	4	16	DIP
HL30-900	9	30	40	40	20	0.02	0.005	4.2	18	DIP

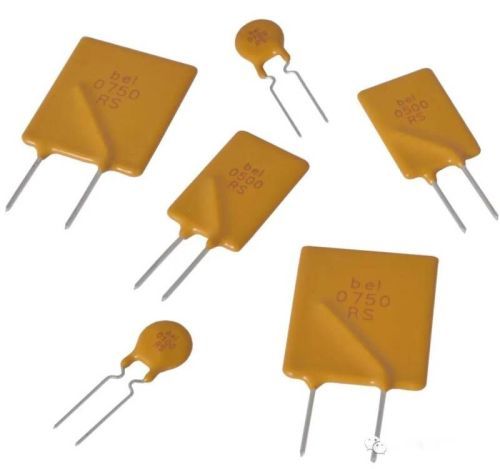

HL90-185	1.85	72	40	3.7	12.6	0.19	0.08	2.1	3.7
SMD1812P050TF/60	0,。5	60	10	8	0.15			1.5		SMD1812
SMD1206P050TF/24	0.5	24	100	8	0.1	0.75	0.15		1	1206
SMD1206P075TF/16	0.75	16	100	8	0.2	0.09	0.5	-	1.5	1206
SMD2920P075TF/60	0.75	60	40	8	0.3	1	0.1		1.5	2920
SMD1812P260TF/24	2.6	24	40	8	5	0.05	0.015	0.075	5.2	1812
SMD1206P016TFQ	0.16	48	100	1	0.3	5	0.35	0.6	0.45	1206

1...2345678 page: Go
