ESD static protection components

Information of ESD
Electrostatic Discharged Protection Devices, referred to as ESD. It is mainly used to protect the Electrostatic Discharge of communication interface .

The reason of Electrostatic Discharge：

a. Two substances via the contact friction and loss of electrons or the electron, the charge band (no flow) termed static;

b. Due to switch electricity or lightning induced surge also indirect causes static electricity;

c. Temperature and humidity affect the turboelectric charged, at less than 45℃, it will produce higher humidity greater voltage more than in 55℃, damaging also relatively large.

The selection tips of ESD

1. The Vrwm is bigger or equal to the circuit working voltage is better;

2. The Cp of ESD is confirmed by the rate of data port, the data transfer more faster ,the Cp of ESD should be more smaller;

3. Selecting suitable Ipp for your circuit, the suitable Vc for your circuit and power=Ipp*Vc*power factor;

4. According to the PCB to select package (1-channel or multi-channels).

Part Number	Vrwm(V) All 1 1.5 1.8 12月5日 15, 24 2.5 2.8 3 3.3 4 4.5 5 5.4 6 7 8 11 12 15 18 24 26.7 27 30 33 36 40 48 100 200 250 5V 70 7月12日 80 85 90 Filter Reset	Vbr(V) All - 13.3/6 18.5, 27.8 2.3 2.5 2.7 2.9 3 3.2 3.5 3.6 3.7 3.8 4 4.1 4.2 4.3 4.5 4.7 4.8 4.9 5 5.4 5.5 5.6 5.7 5.8 6 6.1 6.2 6.3 6.4 6.5 6.8 7 7.1 7.5 7.8 8 8.2 8.5 9 9.5 12 12.6 13 13.3 14 14.2 14.5 16 16.5 16.7 17 17.5 18 18.5 19 19.5 19.6 22 25 25.5 26.5 26.7 27 28 28.5 30 30.5 31 33.3 36.7 37 38 40 42 45 48 50 250 450 6V 7.5/13.3 70 85 Filter Reset	Vc(V) All - 1.5 1.8 10月28日 12V 12月19日 2.5 25, 40 3 3.5 4 4.3 4.5 5 5.5 5.8 6 6.3 6.5 6.7 6.8 7 7.5 8 8.4 8.5 8.7 9 9.4 9.5 9.8 10 10.9 11 11.6 12 12.9 13 13.4 13.9 14 15 15.3 16 17 18 18.5 18.6 19 20 20.5 22 23 24 25 26 28 30 33 34 35 36 37 38 40 42 42.4 43 45 46.1 48 50 53 55 60 62 65 75 9.8/12 Filter Reset	Cj(pF) All 0.05 0.1 0.15 0.17 0.18 0.2 0.26 0.3 0.34 0.35 0.4 0.45 0.5 0.6 0.65 0.7 0.8 0.83 0.9 1 1.2 1.5 110/0.45 2 2.5 3 3.5 3.8 4 4.5 5 6 7 8 8.3 8.5 9 10 10.3 11 12 13 15 16.8 17 20 23 24 25 250/0.45 27 28 30 32 34 35 40 42 45 48 50 52 55 56 60 65 68 70 75 80 85 90 100 110 120 135 145 150 160 168 195 200 230 240 250 300 325 350 400 450 480 500 550 740 800 900 960 1000 1500 2800 Filter Reset	Ppp(W) All - 14 20 25 28 30 35 36 40 45 50 51 55 56 60 70 75 80 90 92 100 102 125 130 140 150 160 161 162 174 180 200 210 216 240 250 260 270 280 300 310 320 340 350 360 400 420 450 460 480 500 600 650 700 800 1000 1122 1300 1425 1450 1480 1500 1600 1610 1620 1650 1700 1800 2000 2100 350W 450/100 5400 5500 6000 6500 6900 Filter Reset
SD4501P4-3	4.5	5	10	2800	5500
SD0701P4-3	7	7.5	10	1000	6000
SD1201P4-3	12	13	22	1500	5400
LC0504N	5	6	10	0.8	100
SDA33CP10	3.3	4	7.5	4.5	200
SDA05CP10	5	6	9.8	4.5	200
SDA08CP10	8	8	14	3.5	200
ULC0524P	5	6	9.8	0.3	75
ULC0544P10	5	6	9.8	0.45	60
ULC3304P10	3.3	4.5	6.5	0.4	60
ULC0504P10	5	6	9.8	0.5	100
ULC0804P10	8	8.5	14	0.5	100
ULC052510BP10	5	6	18	0.1	50
EM2376K	5	6		8.5	260
LC2504P8	2.5	2.7	4.5	3	450
LC3304P8	3.3	3.8	5.5	3.8	450
EM6401M	5	6	-	34	260
LC0534N	5	6	12	0.6	90
LC3374N	3.3	3.5	5.5	2.5	1000
ULC0506N	5	6	8.5	0.35	150
EM2378K	5	6		8.5	260
ULC0568K	5	6	12	0.3	100
ULC0568M	5	6	9.8	1	150
ULC3306MB	3.3	4.5	7	0.5	50

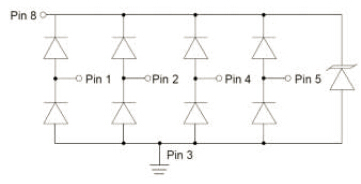

ULC0544M	5	6	12	0.6	100

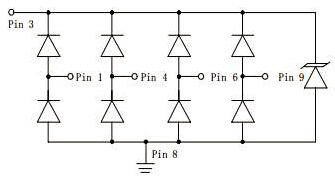

ULC0504M	5	6	12	1.5	100
LC0518MA	5	6	12	0.6	100
SMDA05C-8	5	6	9.8	350	300
SMDA12C-8	12	13.3	19	120	300
SMDA15C-8	15	16.7	24	75	300
