TVS diodes
TVS diodes
|
Information of TVS The transient Voltage Suppressor, referred to as TVS, the TVS operates by shunting excess current when the induced voltage exceeds the avalanche breakdown potential. It is a clamping device, suppressing all over voltages above its breakdown voltage. It automatically resets when the overvoltage goes away, but absorbs much more of the transient energy internally than a similarly rated crowbar device. The selection tips of TVS 1. The Vrwm of TVS should be more than 10% working voltage and tolerance, that protect the Max DC or continuous working voltage of circuits. If the Vrwm is too low, the device will affect the normal work of the circuits because of the snow slide or reverse electric leakage. The current will be divided in the parallel circuit and the voltage will be divided in the serial circuit. 2. The VC of TVS should be less than the damaged voltage of protecting circuits. 3. The Ppp of TVS should be more than the possible peak pulse of protecting circuits. 4. The Ipp of TVS should be more than the surge current of transient circuit. 5. For the lightning protection of data interface circuit, the semiconductor ESD of low capacitance is better. 6. The selection of TVS’ polarity and encapsulation structure should based the application. For the AC circuit, the dual polarity TVS is better, and for the Multi-line protection, the ESD array of semiconductor is better. |
| Part Number |
Power(W)
|
Vrwm(V)
|
Vbr(V)
|
Vc(V)
|
Ipp(A)
|
Ir@25°C(μA)
|
Package
|

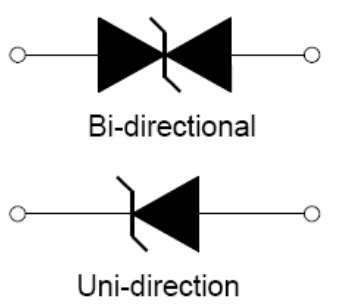

Inner Diagram | Data sheet |
|---|---|---|---|---|---|---|---|---|---|
| SMCJ70A SMCJ70CA | 1500 | 70 | 77.8 | 113 | 13.3 | 1 | SMC |
 |
|
| SMCJ75A SMCJ75CA | 1500 | 75 | 83.3 | 121 | 12.4 | 1 | SMC |
 |
|
| SMCJ78A SMCJ78CA | 1500 | 78 | 86.7 | 126 | 11.9 | 1 | SMC |
 |
|
| SMCJ85A SMCJ85CA | 1500 | 85 | 94.4 | 137 | 11 | 1 | SMC |
 |
|
| SMCJ90A SMCJ90CA | 1500 | 90 | 100 | 146 | 10.3 | 1 | SMC |
 |
|
| SMCJ100A SMCJ100CA | 1500 | 100 | 111 | 162 | 9.3 | 1 | SMC |
 |
|
| SMCJ110A SMCJ110CA | 1500 | 110 | 122 | 177 | 8.5 | 1 | SMC |
 |
|
| SMCJ120A SMCJ120CA | 1500 | 120 | 133 | 193 | 7.8 | 1 | SMC |
 |
|
| SMCJ130A SMCJ130CA | 1500 | 130 | 144 | 209 | 7.2 | 1 | SMC |
 |
|
| SMCJ150A SMCJ150CA | 1500 | 150 | 167 | 243 | 6.2 | 1 | SMC |
 |
|
| SMCJ160A SMCJ160CA | 1500 | 160 | 178 | 259 | 5.8 | 1 | SMC |
 |
|
| SMCJ170A SMCJ170CA | 1500 | 170 | 189 | 275 | 5.5 | 1 | SMC |
 |
|
| SMCJ180A SMCJ180CA | 1500 | 180 | 201 | 292 | 5.2 | 1 | SMC |
 |
|
| SMCJ190A SMCJ190CA | 1500 | 190 | 211 | 307 | 4.9 | 1 | SMC |
 |
|
| SMCJ200A SMCJ200CA | 1500 | 200 | 224 | 324 | 4.7 | 1 | SMC |
 |
|
| SMCJ210A SMCJ210CA | 1500 | 210 | 233 | 337 | 4.5 | 1 | SMC |
 |
|
| SMCJ220A SMCJ220CA | 1500 | 220 | 246 | 356 | 4.2 | 1 | SMC |
 |
|
| SMCJ250A SMCJ250CA | 1500 | 250 | 279 | 405 | 3.7 | 1 | SMC |
 |
|
| SMCJ300A SMCJ300CA | 1500 | 300 | 335 | 486 | 3.1 | 1 | SMC |
 |
|
| SMCJ350A SMCJ350CA | 1500 | 350 | 391 | 567 | 2.7 | 1 | SMC |
 |
|
| SMCJ400A SMCJ400CA | 1500 | 400 | 447 | 648 | 2.3 | 1 | SMC |
 |
|
| SMCJ440A SMCJ440CA | 1500 | 440 | 492 | 713 | 2.1 | 1 | SMC |
 |
|
| P6SMB7.5A P6SMB7.5CA | 600 | 6.4 | 7.13 | 11.3 | 54 | 1000 | DO-214AA(SMB) |
 |
|
| P6SMB8.2A P6SMB8.2CA | 600 | 7.02 | 7.79 | 12.1 | 50.4 | 500 | DO-214AA(SMB) |
 |
|
| P6SMB9.1A P6SMB9.1CA | 600 | 7.78 | 8.65 | 13.4 | 45.5 | 200 | DO-214AA(SMB) |
 |
|
| P6SMB10A P6SMB10CA | 600 | 8.55 | 9.5 | 14.5 | 42.1 | 50 | DO-214AA(SMB) |
 |
|
| P6SMB11A P6SMB11CA | 600 | 9.4 | 10.5 | 15.6 | 39.1 | 10 | DO-214AA(SMB) |
 |
|
| P6SMB12A P6SMB12CA | 600 | 10.2 | 11.4 | 16.7 | 36.5 | 5 | DO-214AA(SMB) |
 |
|
| P6SMB13A P6SMB13CA | 600 | 11.1 | 12.4 | 18.2 | 33.5 | 5 | DO-214AA(SMB) |
 |
|
| P6SMB15A P6SMB15CA | 600 | 12.8 | 14.3 | 21.2 | 28.8 | 5 | DO-214AA(SMB) |
 |
