Information of TVS The transient Voltage Suppressor, referred to as TVS, the TVS operates by shunting excess current when the induced voltage exceeds the avalanche breakdown potential. It is a clamping device, suppressing all over voltages above its breakdown voltage. It automatically resets when the overvoltage goes away, but absorbs much more of the transient energy internally than a similarly rated crowbar device. The selection tips of TVS 1. The Vrwm of TVS should be more than 10% working voltage and tolerance, that protect the Max DC or continuous working voltage of circuits. If the Vrwm is too low, the device will affect the normal work of the circuits because of the snow slide or reverse electric leakage. The current will be divided in the parallel circuit and the voltage will be divided in the serial circuit. 2. The VC of TVS should be less than the damaged voltage of protecting circuits. 3. The Ppp of TVS should be more than the possible peak pulse of protecting circuits. 4. The Ipp of TVS should be more than the surge current of transient circuit. 5. For the lightning protection of data interface circuit, the semiconductor ESD of low capacitance is better. 6. The selection of TVS’ polarity and encapsulation structure should based the application. For the AC circuit, the dual polarity TVS is better, and for the Multi-line protection, the ESD array of semiconductor is better. |
| Part Number |
Power(W)
|
Vrwm(V)
|
Vbr(V)
|
Vc(V)
|
Ipp(A)
|
Ir@25°C(μA)
|
Package
|

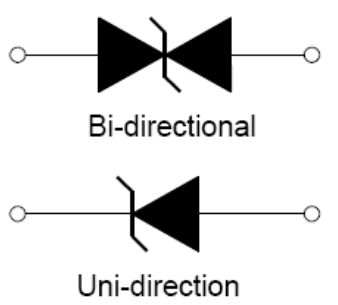

Inner Diagram | Data sheet |
|---|---|---|---|---|---|---|---|---|---|
| 10BJ33A 10BJ33CA | 1000 | 33 | 36.7 | 53.3 | 18.8 | 1 | SMB |
 |
|
| 10BJ36A 10BJ36CA | 1000 | 36 | 40 | 58.1 | 17.3 | 1 | SMB |
 |
|
| 10BJ40A 10BJ40CA | 1000 | 40 | 44.4 | 64.5 | 15.5 | 1 | SMB |
 |
|
| 10BJ43A 10BJ43CA | 1000 | 43 | 47.8 | 69.4 | 14.4 | 1 | SMB |
 |
|
| 10BJ45A 10BJ45CA | 1000 | 45 | 50 | 72.7 | 13.8 | 1 | SMB |
 |
|
| 10BJ48A 10BJ48CA | 1000 | 48 | 53.3 | 77.4 | 13 | 1 | SMB |
 |
|
| 10BJ51A 10BJ51CA | 1000 | 51 | 56.7 | 82.4 | 12.2 | 1 | SMB |
 |
|
| 10BJ54A 10BJ54CA | 1000 | 54 | 60 | 87.1 | 11.5 | 1 | SMB |
 |
|
| 10BJ58A 10BJ58CA | 1000 | 58 | 64.4 | 93.6 | 10.7 | 1 | SMB |
 |
|
| 10BJ60A 10BJ60CA | 1000 | 60 | 66.7 | 96.8 | 10.4 | 1 | SMB |
 |
|
| 10BJ64A 10BJ64CA | 1000 | 64 | 71.1 | 103 | 9.7 | 1 | SMB |
 |
|
| 10BJ70A 10BJ70CA | 1000 | 70 | 77.8 | 113 | 8.9 | 1 | SMB |
 |
|
| 10BJ75A 10BJ75CA | 1000 | 75 | 83.3 | 121 | 8.3 | 1 | SMB |
 |
|
| 10BJ78A 10BJ78CA | 1000 | 78 | 86.7 | 126 | 8 | 1 | SMB |
 |
|
| 10BJ85A 10BJ85CA | 1000 | 85 | 94.4 | 137 | 7.3 | 1 | SMB |
 |
|
| 10BJ90A 10BJ90CA | 1000 | 90 | 100 | 146 | 6.9 | 1 | SMB |
 |
|
| 10BJ100A 10BJ100CA | 1000 | 100 | 111 | 162 | 6.2 | 1 | SMB |
 |
|
| 10BJ110A 10BJ110CA | 1000 | 110 | 122 | 177 | 5.7 | 1 | SMB |
 |
|
| 10BJ120A 10BJ120CA | 1000 | 120 | 133 | 193 | 5.2 | 1 | SMB |
 |
|
| 10BJ130A 10BJ130CA | 1000 | 130 | 144 | 209 | 4.8 | 1 | SMB |
 |
|
| 10BJ150A 10BJ150CA | 1000 | 150 | 167 | 243 | 4.2 | 1 | SMB |
 |
|
| 10BJ160A 10BJ160CA | 1000 | 160 | 178 | 259 | 3.9 | 1 | SMB |
 |
|
| 10BJ170A 10BJ170CA | 1000 | 170 | 189 | 275 | 3.7 | 1 | SMB |
 |
|
| 10BJ180A 10BJ180CA | 1000 | 180 | 201 | 292 | 3.5 | 1 | SMB |
 |
|
| 10BJ190A 10BJ190CA | 1000 | 190 | 211 | 307 | 3.3 | 1 | SMB |
 |
|
| 10BJ200A 10BJ200CA | 1000 | 200 | 224 | 324 | 3.1 | 1 | SMB |
 |
|
| SMCJ5.0A SMCJ5.0CA | 1500 | 5 | 6.4 | 9.2 | 163 | 300 | SMC |
 |
|
| SMCJ6.0A SMCJ6.0CA | 1500 | 6 | 6.67 | 10.3 | 145.6 | 250 | SMC |
 |
|
| SMCJ6.5A SMCJ6.5CA | 1500 | 6.5 | 7.22 | 11.2 | 134 | 150 | SMC |
 |
|
| SMCJ7.0A SMCJ7.0CA | 1500 | 7 | 7.78 | 12 | 125 | 100 | SMC |
 |
