TVS diodes
TVS diodes
|
Information of TVS The transient Voltage Suppressor, referred to as TVS, the TVS operates by shunting excess current when the induced voltage exceeds the avalanche breakdown potential. It is a clamping device, suppressing all over voltages above its breakdown voltage. It automatically resets when the overvoltage goes away, but absorbs much more of the transient energy internally than a similarly rated crowbar device. The selection tips of TVS 1. The Vrwm of TVS should be more than 10% working voltage and tolerance, that protect the Max DC or continuous working voltage of circuits. If the Vrwm is too low, the device will affect the normal work of the circuits because of the snow slide or reverse electric leakage. The current will be divided in the parallel circuit and the voltage will be divided in the serial circuit. 2. The VC of TVS should be less than the damaged voltage of protecting circuits. 3. The Ppp of TVS should be more than the possible peak pulse of protecting circuits. 4. The Ipp of TVS should be more than the surge current of transient circuit. 5. For the lightning protection of data interface circuit, the semiconductor ESD of low capacitance is better. 6. The selection of TVS’ polarity and encapsulation structure should based the application. For the AC circuit, the dual polarity TVS is better, and for the Multi-line protection, the ESD array of semiconductor is better. |
| Part Number |
Power(W)
|
Vrwm(V)
|
Vbr(V)
|
Vc(V)
|
Ipp(A)
|
Ir@25°C(μA)
|
Package
|

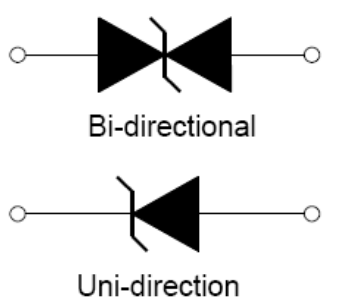

Inner Diagram | Data sheet |
|---|---|---|---|---|---|---|---|---|---|
| SMBJ24A SMBJ24CA | 600 | 24 | 26.7 | 38.9 | 15.4 | 1 | SMB |
 |
|
| SMBJ26A SMBJ26CA | 600 | 26 | 28.9 | 42.1 | 14.3 | 1 | SMB |
 |
|
| SMBJ28A SMBJ28CA | 600 | 28 | 31.1 | 45.4 | 13.2 | 1 | SMB |
 |
|
| SMBJ30A SMBJ30CA | 600 | 30 | 33.3 | 48.4 | 12.4 | 1 | SMB |
 |
|
| SMBJ33A SMBJ33CA | 600 | 33 | 36.7 | 53.3 | 11.3 | 1 | SMB |
 |
|
| SMBJ36A SMBJ36CA | 600 | 36 | 40 | 58.1 | 10.4 | 1 | SMB |
 |
|
| SMBJ40A SMBJ40CA | 600 | 40 | 44.4 | 64.5 | 9.3 | 1 | SMB |
 |
|
| SMBJ43A SMBJ43CA | 600 | 43 | 47.8 | 69.4 | 8.7 | 1 | SMB |
 |
|
| SMBJ45A SMBJ45CA | 600 | 45 | 50 | 72.7 | 8.3 | 1 | SMB |
 |
|
| SMBJ48A SMBJ48CA | 600 | 48 | 53.3 | 77.4 | 7.8 | 1 | SMB |
 |
|
| SMBJ51A SMBJ51CA | 600 | 51 | 56.7 | 82.4 | 7.3 | 1 | SMB |
 |
|
| SMBJ54A SMBJ54CA | 600 | 54 | 60 | 87.1 | 6.9 | 1 | SMB |
 |
|
| SMBJ58A SMBJ58CA | 600 | 58 | 64.4 | 93.6 | 6.4 | 1 | SMB |
 |
|
| SMBJ60A SMBJ60CA | 600 | 60 | 66.7 | 96.8 | 6.2 | 1 | SMB |
 |
|
| SMBJ64A SMBJ64CA | 600 | 64 | 71.1 | 103 | 5.8 | 1 | SMB |
 |
|
| SMBJ70A SMBJ70CA | 600 | 70 | 77.8 | 113 | 5.3 | 1 | SMB |
 |
|
| SMBJ75A SMBJ75CA | 600 | 75 | 83.3 | 121 | 5 | 1 | SMB |
 |
|
| SMBJ78A SMBJ78CA | 600 | 78 | 86.7 | 126 | 4.8 | 1 | SMB |
 |
|
| SMBJ85A SMBJ85CA | 600 | 85 | 94.4 | 137 | 4.4 | 1 | SMB |
 |
|
| SMBJ90A SMBJ90CA | 600 | 90 | 100 | 146 | 4.1 | 1 | SMB |
 |
|
| SMBJ100A SMBJ100CA | 600 | 100 | 111 | 162 | 3.7 | 1 | SMB |
 |
|
| SMBJ110A SMBJ110CA | 600 | 110 | 122 | 177 | 3.4 | 1 | SMB |
 |
|
| SMBJ120A SMBJ120CA | 600 | 120 | 133 | 193 | 3.1 | 1 | SMB |
 |
|
| SMBJ130A SMBJ130CA | 600 | 130 | 144 | 209 | 2.9 | 1 | SMB |
 |
|
| SMBJ150A SMBJ150CA | 600 | 150 | 167 | 243 | 2.5 | 1 | SMB |
 |
|
| SMBJ160A SMBJ160CA | 600 | 160 | 178 | 259 | 2.3 | 1 | SMB |
 |
|
| SMBJ170A SMBJ170CA | 600 | 170 | 189 | 275 | 2.2 | 1 | SMB |
 |
|
| SMBJ180A SMBJ180CA | 600 | 180 | 201 | 292 | 2.1 | 1 | SMB |
 |
|
| SMBJ190A SMBJ190CA | 600 | 190 | 211 | 307 | 2 | 1 | SMB |
 |
|
| SMBJ200A SMBJ200CA | 600 | 200 | 224 | 324 | 1.9 | 1 | SMB |
 |
